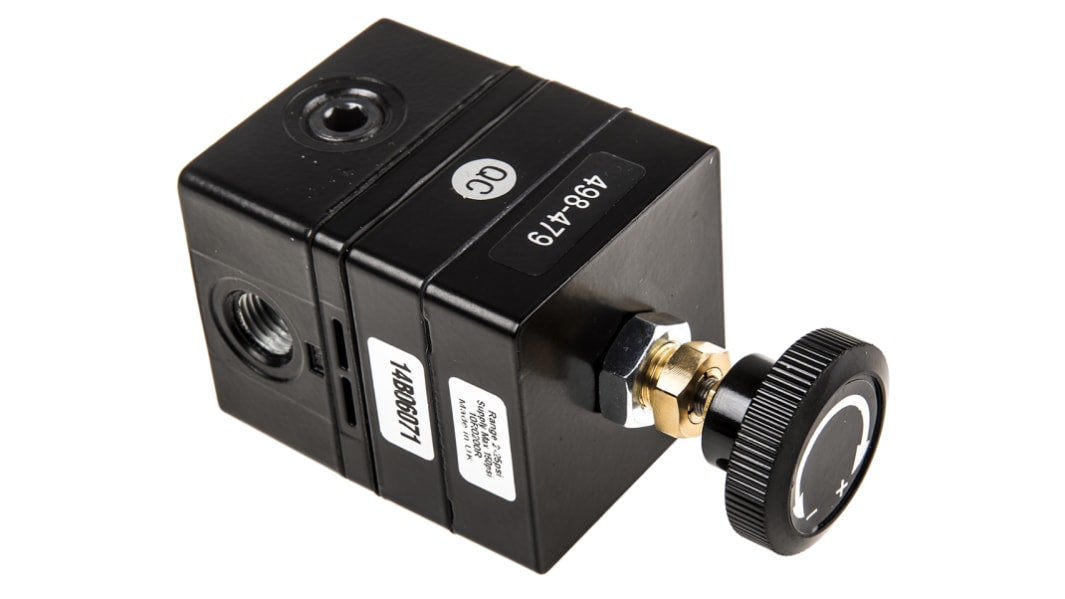

Watson Smith NPT 1/4 Pneumatic Regulator - 0.14bar to 1.7bar, 1/4in
- RS Stock No.:
- 498-479
- Mfr. Part No.:
- 10R0200R
- Brand:
- Watson Smith
25 In stock for same day dispatch
Added
Price Each
Kr. 2 315,50
(exc. VAT)
Kr. 2 894,38
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 2 315,50 |
| 5 - 9 | Kr. 2 243,67 |
| 10 + | Kr. 2 171,95 |
- RS Stock No.:
- 498-479
- Mfr. Part No.:
- 10R0200R
- Brand:
- Watson Smith
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Precision Manostat Series
Designed for critical pressure control applications
Precise regulation with disturbances in flow, supply pressure and temperature
Air requirements; dry, filtered to 25μm
0.3 mbar sensitivity; ±0.05% repeatability
Response time; <0.2s for 50% load change
Temperature range -20°C to +70°C
Reliable, durable
Excellent setting sensitivity
High relief capability
Precise regulation with disturbances in flow, supply pressure and temperature
Air requirements; dry, filtered to 25μm
0.3 mbar sensitivity; ±0.05% repeatability
Response time; <0.2s for 50% load change
Temperature range -20°C to +70°C
Reliable, durable
Excellent setting sensitivity
High relief capability
Caution
(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C, consult Helpline
Specifications
Attribute | Value |
|---|---|
| Port Connection | NPT 1/4 |
| Maximum Outlet Pressure | 1.7bar |
| Minimum Outlet Pressure | 0.14bar |
| Manufacturer Series | Manostat |
| Pressure Gauge Port Size | NPT 1/4 |
| Port Connection Thread Size | 1/4in |
| Pressure Gauge Port Thread Size | 1/4in |
| Typical Flow Rate | 300L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | NPT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Pressure Gauge Port Thread Standard | NPT |
