Parker 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 Viking Xtreme Series
- RS Stock No.:
- 410-567
- Mfr. Part No.:
- P2LBX512ESNDDN
- Brand:
- Parker
81 In stock for same day dispatch
Added
Price Each
Kr. 1 044,89
(exc. VAT)
Kr. 1 306,11
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 1 044,89 |
| 5 + | Kr. 1 013,54 |
- RS Stock No.:
- 410-567
- Mfr. Part No.:
- P2LBX512ESNDDN
- Brand:
- Parker
Legislation and Compliance
Product Details

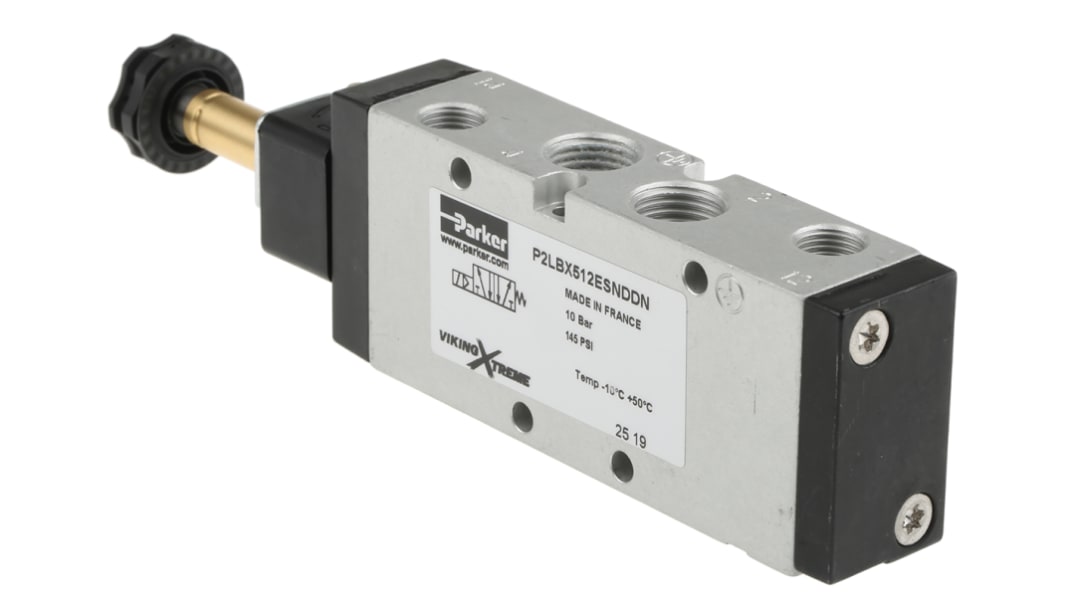

Parker Solenoid Directional Control Valve
The Parker Viking Xtreme series 5/2 ports directional control valve has a maximum flow rate of 38L/min. This valve has a 1/4in G port connection and electric signal type actuation with a spring return. It has a compact design and short change-over times. This control valve is suitable for use within a wide variety of temperature ranges.
Features and Benefits
Good corrosion resistance
Operating pressure ranges between 3.5bar and 10bar
Operating temperature ranged between -40°C and 60°C
Supplied with a 22mm solenoid operator less coil
Operating pressure ranges between 3.5bar and 10bar
Operating temperature ranged between -40°C and 60°C
Supplied with a 22mm solenoid operator less coil
Specifications
Attribute | Value |
|---|---|
| Function | 5/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Solenoid/Spring |
| Manufacturer Series | Viking Xtreme |
| Number of Ports | 5/2 |
| Body Material | Anodised Aluminium |
| Maximum Flow Rate | 38L/min |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Pressure | 10bar |
| Thread Size | 1/4in |
| Thread Standard | G |
- RS Stock No.:
- 410-567
- Mfr. Part No.:
- P2LBX512ESNDDN
- Brand:
- Parker
