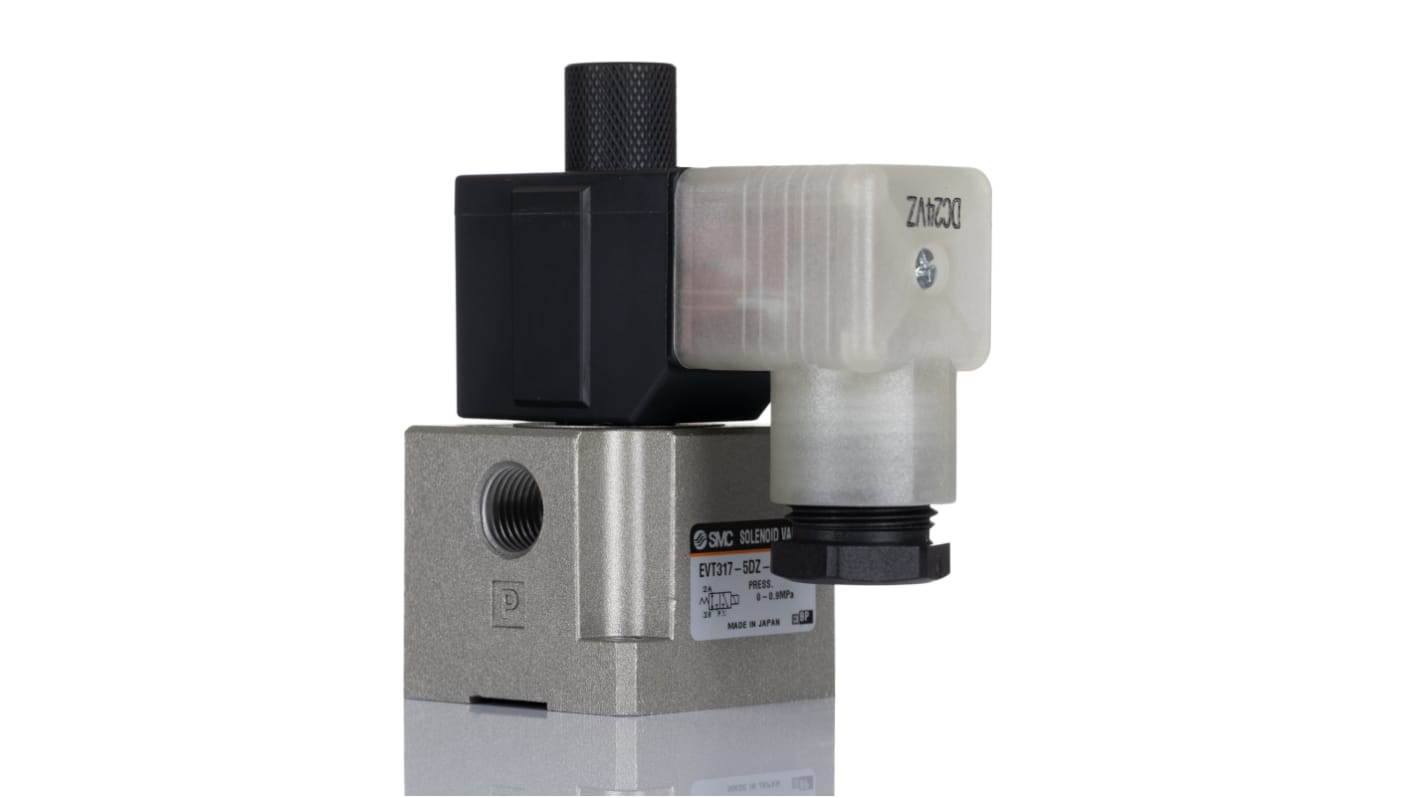

SMC 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc
- RS Stock No.:
- 723-674
- Mfr. Part No.:
- EVT317-5DZ-02F-Q
- Brand:
- SMC
18 In stock for same day dispatch
Added
Price Each
Kr. 667,59
(exc. VAT)
Kr. 834,49
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 667,59 |
| 5 + | Kr. 647,24 |
- RS Stock No.:
- 723-674
- Mfr. Part No.:
- EVT317-5DZ-02F-Q
- Brand:
- SMC
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series
A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions.
1/ 4 in ports, tapered threads
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)
Note
Includes electrical connectors and indicator
Specifications
Attribute | Value |
|---|---|
| Function | 3/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Spring/Solenoid |
| Manufacturer Series | VT317 |
| Mounting Style | Stand-Alone |
| Solenoid Voltage | 24V dc |
| Solenoid Fitted | Yes |
| Number of Ports | 3/2 |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 687.05NL/min |
| Solenoid Power Consumption | 6.3W |
| Minimum Operating Pressure | 0MPa |
| Maximum Operating Temperature | +50°C |
| Maximum Operating Pressure | 0.9 MPa |
| Minimum Operating Temperature | 0°C |
| Thread Size | 1/4in |
| Thread Standard | G |
