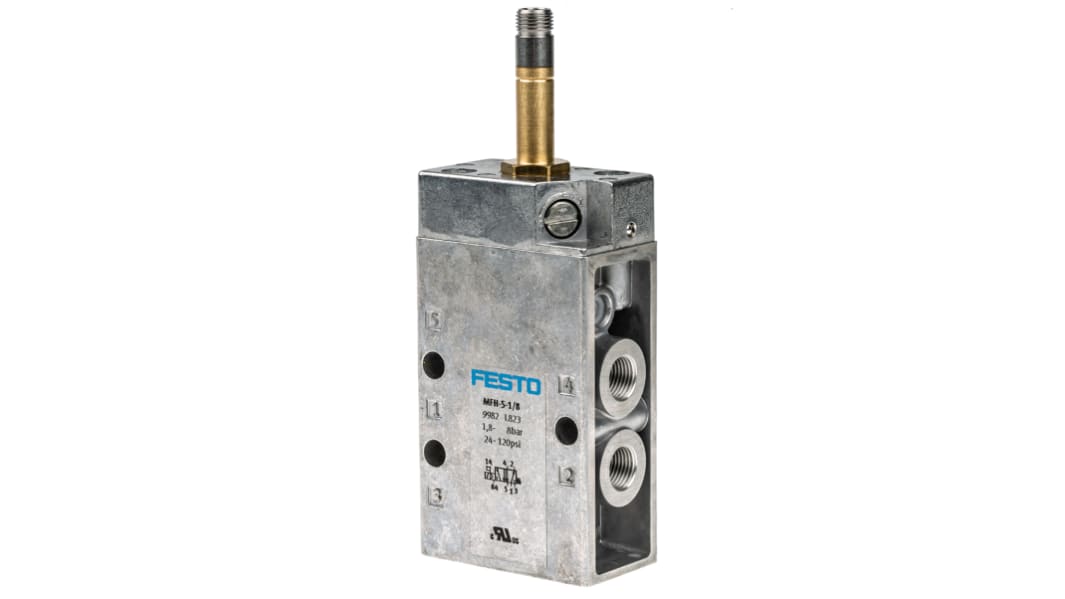

Festo Pneumatic Solenoid Valve - 5/2 Solenoid/Spring G MFH Series

View all Pneumatic Solenoid Valves
Bulk discount available

Subtotal (1 unit)*

Kr. 1 648,96

(exc. VAT)

Kr. 2 061,20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 62 unit(s) ready to ship
  • Plus 49 unit(s) ready to ship from another location
  • Plus 38 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4Kr. 1 648,96
5 +Kr. 1 582,95

*price indicative

RS Stock No.:
121-5646
Distrelec Article No.:
301-68-955
Mfr. Part No.:
MFH-5-1/8
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Solenoid Valve

Port Size

1/8 in

Port Type

Threaded

Connection Thread Standard

G

Actuation Type

Solenoid/Spring

Solenoid Type

Single

Series

MFH

Seal Material

Nitrile Rubber (NBR)

Mount Type

Through Hole

Number of Ports

5

Maximum Operating Pressure

8 bar

Body Material

Aluminium

Maximum Pilot Pressure

8bar

Port Gender

Female

Minimum Pilot Pressure

1.8bar

Maximum Flow Rate

500L/min

Valve Function

5/2

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

40°C

Solenoid Power Consumption

4.5W

Width

26mm

Height

71mm

Hazardous Area Certification

ATEX

Length

131mm

Standards/Approvals

cULus, RoHS

Number of Positions

2

Electrical Connection Type

F Coil

COO (Country of Origin):
IN

Festo MFH Series Pneumatic Solenoid Valve, 500L/min Maximum Flow Rate, 8 Bar Maximum Operating Pressure - MFH-5-1/8, Numeric Part Number:9982


This pneumatic solenoid valve controls directional Airflow in automated systems, using an electrically actuated spool to switch between two positions. It is intended for use where a compact, low-power valve is required to route compressed Air reliably within industrial pneumatic circuits. The valve is suitable for installations that demand a threaded five-port arrangement and operation within moderate temperature ranges.

Features & Benefits


• 5/2-way configuration offering controlled directional switching
• Supports maximum flow of 500 L/min for efficient actuation
• Operates up to 10 bar pilot and 8 bar system pressure for robust duty
• Single solenoid design enables monostable fail-safe behaviour
• Low electrical consumption of 4.5 W reduces control-side power draw
• NBR Seals in an aluminium body provide chemical-resistant performance

Applications


• Suitable for pneumatic actuation in assembly-line tooling
• Ideal for valve islands and Compact control manifolds
• Used for machine end-of-stroke control and indexing systems
• Can be used for compressed-air distribution in test rigs
• Suitable for hazardous-area installations requiring ATEX certification

What electrical supply options are available for use in control panels?


It accepts both 240V AC and 48V DC supplies, permitting integration with AC mains or DC control systems.

How is the valve mounted within a pneumatic manifold?


The component uses through-hole mounting and G-threaded ports providing a threaded G 1/8 5-port connection for secure installation.

What operating temperature range can be expected on-site?


The valve functions reliably between -5 °C and 40 °C, matching typical indoor industrial environments.

How does the valve handle pilot pressure requirements?


Pilot actuation requires a minimum of 1.8 bar and can accept up to 8 bar to ensure consistent switching response.

Note

F solenoid Coil to be ordered separately.
