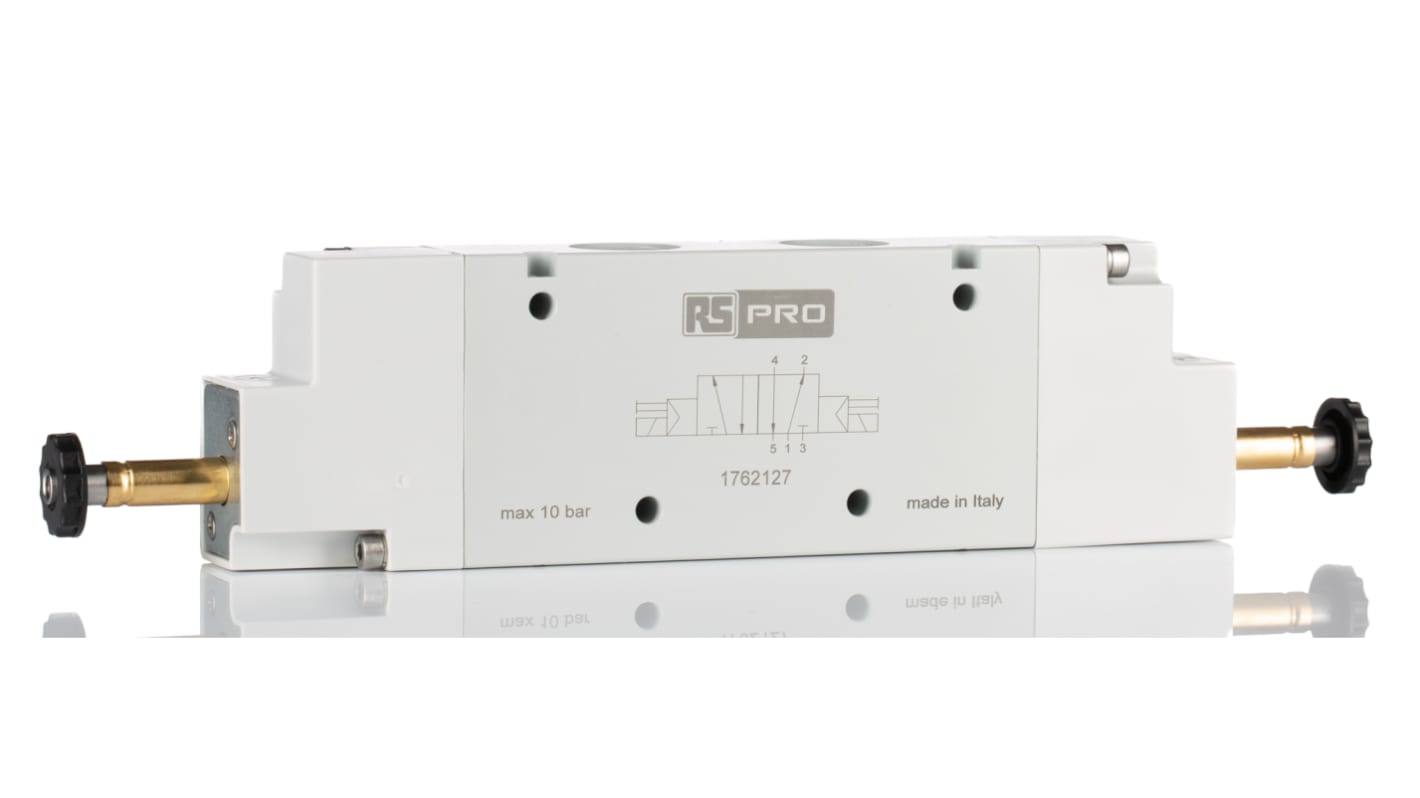

RS PRO 5/2 Bistable Pneumatic Solenoid Valve - Solenoid G 1/2 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac
- RS Stock No.:
- 176-2127
- Brand:
- RS PRO
6 In stock for same day dispatch
Added
Price Each
Kr. 2 814,13
(exc. VAT)
Kr. 3 517,66
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 2 814,13 |
- RS Stock No.:
- 176-2127
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
The RS Pro valve range is robust , versatile and combines high performances with compact installation dimensions. Solenoid, electrical, mechanical and manual operated. Large flow capacity , short change-over times and low change-over pressure. Available in 3 sizes: 1/8 - 1/4 e 1/2 .They can operate up to 10 bar working pressure. Multiple manifolds to create your own valves block. Solenoid coils are energy-saving and available in all voltage. Solenoid coils are also available.
Main advantages:
Extremely Durable
High Flow in Compact Dimension
Easy Installation
Large Range
Energy Saving
Applications:
Pneumatic Automation, Robotics, Handling
Automotive Process
Textile, Packaging, Heavy Duty
Food Process
Extremely Durable
High Flow in Compact Dimension
Easy Installation
Large Range
Energy Saving
Applications:
Pneumatic Automation, Robotics, Handling
Automotive Process
Textile, Packaging, Heavy Duty
Food Process
Specifications
Attribute | Value |
|---|---|
| Function | 5/2 Bistable |
| Connection Port Thread | G 1/2 |
| Actuation Type | Solenoid |
| Mounting Style | Base Mount |
| Solenoid Voltage | 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac |
| Solenoid Fitted | Yes |
| Number of Ports | 5/2 |
| Body Material | Aluminium |
| Maximum Flow Rate | 5000NL/min |
| Solenoid Power Consumption | 2 W, 3VA |
| Minimum Operating Pressure | 1bar |
| Thread Size | 1/2in |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Number of Positions | 2 |
| Configuration | 5/2 |
| Maximum Operating Pressure | 10bar |
| Thread Standard | G |
