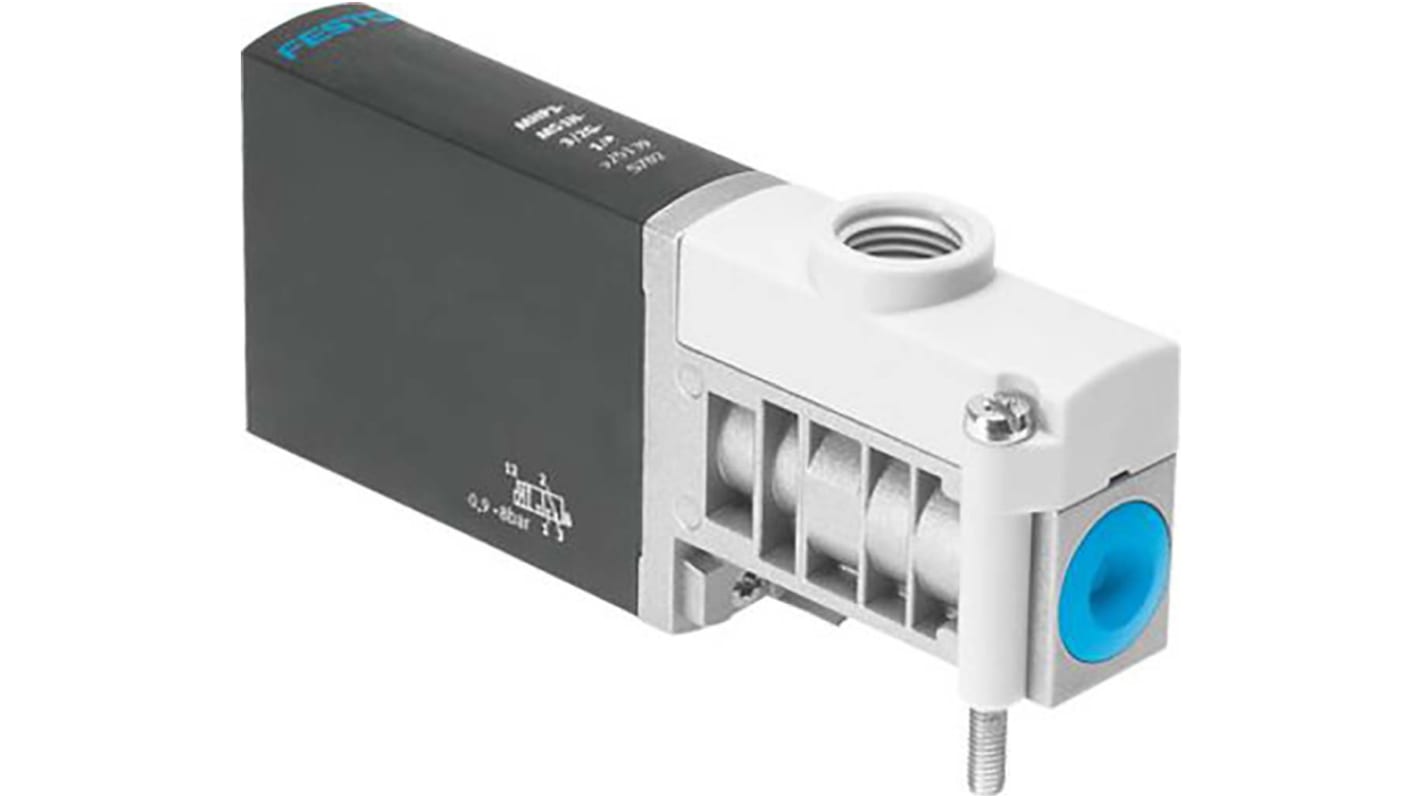

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - 3/2 NO, Monostable Electric Metric MHP3 Series 24V

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

Kr. 896,44

(exc. VAT)

Kr. 1 120,55

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 896,44

*price indicative

RS Stock No.:
203-7225
Mfr. Part No.:
MHP3-M1H-3/2O-1/8
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Solenoid/Pilot-Operated Control Valve

Port Type

Sub Base

Port Size

1/8 in G

Connection Thread Standard

Metric

Actuation Type

Electric

Seal Material

Nitrile Rubber (NBR)

Voltage

24V

Series

MHP3

Solenoid Type

Direct

Mount Type

Manifold

Number of Ports

2

Maximum Operating Pressure

8 bar

Body Material

Die Cast Zinc

Minimum Operating Temperature

-5°C

Minimum Pilot Pressure

2bar

Port Gender

Female

Valve Function

3/2 NO, Monostable

Maximum Pilot Pressure

10bar

Maximum Flow Rate

4500L/min

Solenoid Power Consumption

3.7W

Maximum Operating Temperature

40°C

Width

14mm

Hazardous Area Certification

NO

Standards/Approvals

cULus

Number of Positions

2

Electrical Connection Type

Plug

COO (Country of Origin):
HU
The Festo's solenoid valve has highly durable valve are available with 3/2 open, monostable way valve function with G1/8 thread connection of pipe size. Its width size is 14 mm and used operating pressure up to -0.9 -8 bar. Its standard nominal flow rate is 200 l/min.

Ambient temperature -5 to 40 °C

Protection class IP65
