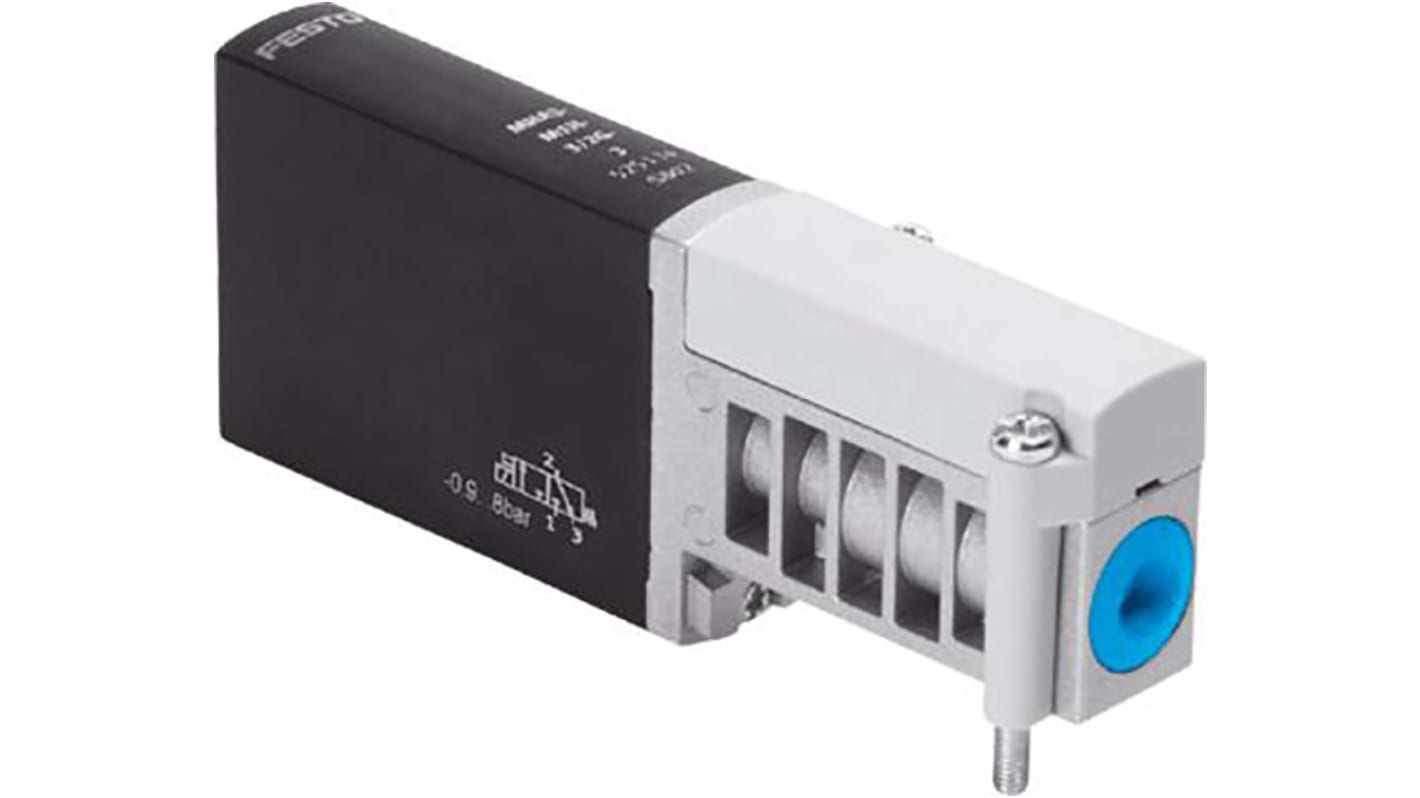

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - 3/2 Closed Monostable Electric Metric MHA3-M1H-3/2G-3 Series
- RS Stock No.:
- 203-7251
- Mfr. Part No.:
- MHA3-M1H-3/2G-3
- Brand:
- Festo
Subtotal (1 unit)*
Kr. 896,44
(exc. VAT)
Kr. 1 120,55
(inc. VAT)
FREE delivery for online orders over 750,00 kr
- Ready to ship from 11 November 2026
Units | Per unit |
|---|---|
| 1 + | Kr. 896,44 |
*price indicative
- RS Stock No.:
- 203-7251
- Mfr. Part No.:
- MHA3-M1H-3/2G-3
- Brand:
- Festo
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | 3 mm | |
| Port Type | Sub Base | |
| Connection Thread Standard | Metric | |
| Actuation Type | Electric | |
| Solenoid Type | Single | |
| Seal Material | Nitrile Rubber (NBR) | |
| Voltage | 24V | |
| Series | MHA3-M1H-3/2G-3 | |
| Mount Type | Through Hole | |
| Number of Ports | 3 | |
| Body Material | Die Cast Zinc | |
| Maximum Operating Pressure | 8 bar | |
| Minimum Pilot Pressure | 2bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Operating Temperature | -5°C | |
| Valve Function | 3/2 Closed Monostable | |
| Maximum Flow Rate | 200L/min | |
| Port Gender | Female | |
| Solenoid Power Consumption | 3.7W | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Width | 14mm | |
| Standards/Approvals | cULus | |
| Number of Positions | 2 | |
| Electrical Connection Type | Plug | |
| Model Number | 525134 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size 3 mm | ||
Port Type Sub Base | ||
Connection Thread Standard Metric | ||
Actuation Type Electric | ||
Solenoid Type Single | ||
Seal Material Nitrile Rubber (NBR) | ||
Voltage 24V | ||
Series MHA3-M1H-3/2G-3 | ||
Mount Type Through Hole | ||
Number of Ports 3 | ||
Body Material Die Cast Zinc | ||
Maximum Operating Pressure 8 bar | ||
Minimum Pilot Pressure 2bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Operating Temperature -5°C | ||
Valve Function 3/2 Closed Monostable | ||
Maximum Flow Rate 200L/min | ||
Port Gender Female | ||
Solenoid Power Consumption 3.7W | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Width 14mm | ||
Standards/Approvals cULus | ||
Number of Positions 2 | ||
Electrical Connection Type Plug | ||
Model Number 525134 | ||
- COO (Country of Origin):
- HU
