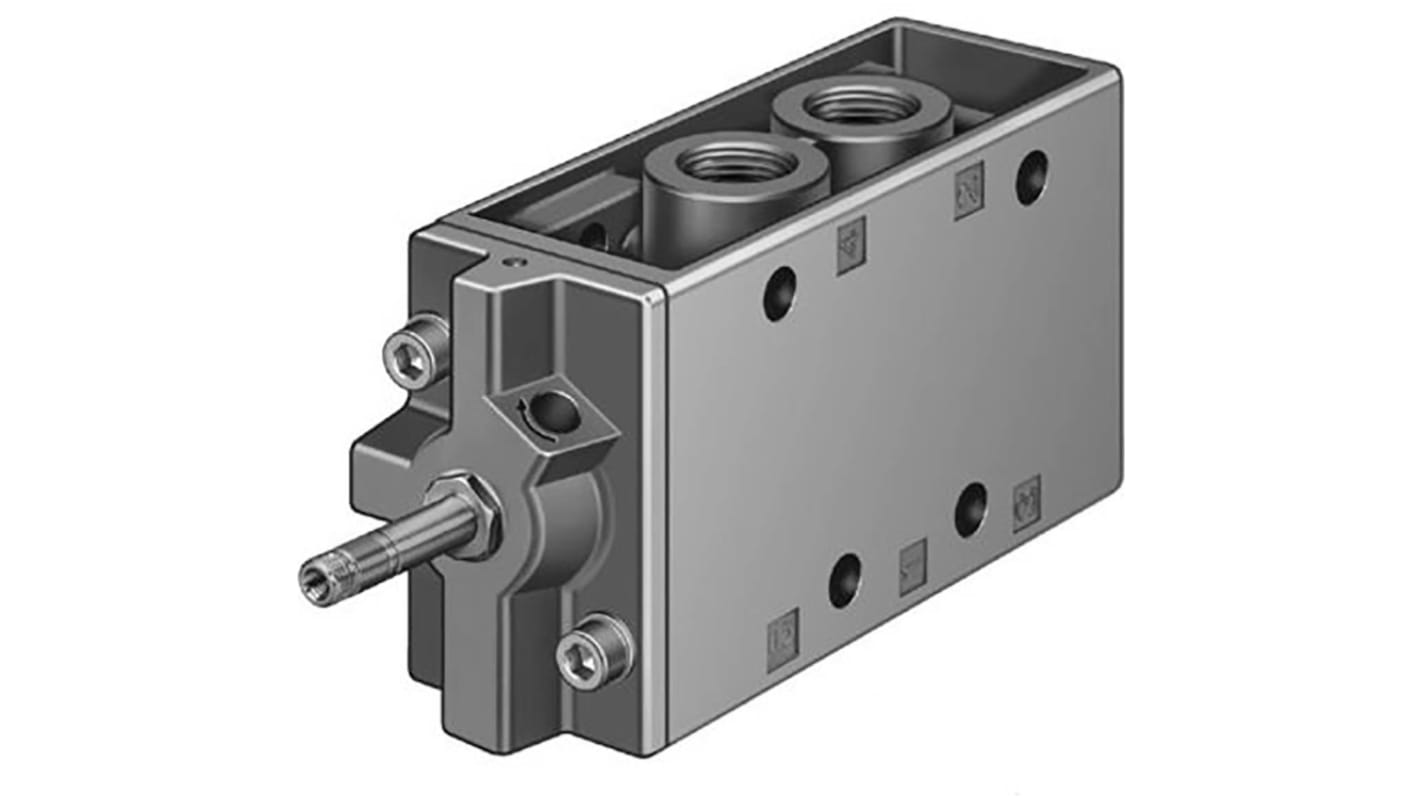

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric G MFH Series 35547
- RS Stock No.:
- 203-7282
- Mfr. Part No.:
- MFH-5-1/2-S
- Brand:
- Festo
Subtotal (1 unit)*
Kr. 3 675,10
(exc. VAT)
Kr. 4 593,88
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 3 675,10 |
*price indicative
- RS Stock No.:
- 203-7282
- Mfr. Part No.:
- MFH-5-1/2-S
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Type | Pneumatic | |
| Port Size | 1/2 in G | |
| Connection Thread Standard | G | |
| Actuation Type | Electric | |
| Seal Material | Nitrile Rubber (NBR), Thermoplastic Polyurethane (Polyurethane) | |
| Series | MFH | |
| Mount Type | Rail | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Die Cast Aluminium | |
| Maximum Flow Rate | 3700L/min | |
| Minimum Pilot Pressure | 1.5bar | |
| Valve Function | 5/2 Monostable | |
| Minimum Operating Temperature | -5°C | |
| Maximum Pilot Pressure | 8bar | |
| Maximum Operating Temperature | 60°C | |
| Width | 52mm | |
| Standards/Approvals | cULus | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Type Pneumatic | ||
Port Size 1/2 in G | ||
Connection Thread Standard G | ||
Actuation Type Electric | ||
Seal Material Nitrile Rubber (NBR), Thermoplastic Polyurethane (Polyurethane) | ||
Series MFH | ||
Mount Type Rail | ||
Number of Ports 5 | ||
Maximum Operating Pressure 8 bar | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 3700L/min | ||
Minimum Pilot Pressure 1.5bar | ||
Valve Function 5/2 Monostable | ||
Minimum Operating Temperature -5°C | ||
Maximum Pilot Pressure 8bar | ||
Maximum Operating Temperature 60°C | ||
Width 52mm | ||
Standards/Approvals cULus | ||
- COO (Country of Origin):
- CN
The Festo's solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has poppet valve of structure and its width size is 52 mm and used operating pressure up to 0 - 8 bar with standard nominal flow rate is 3,700 l/min.
Ambient temperature -5 to 40 °C
Protection class IP65
