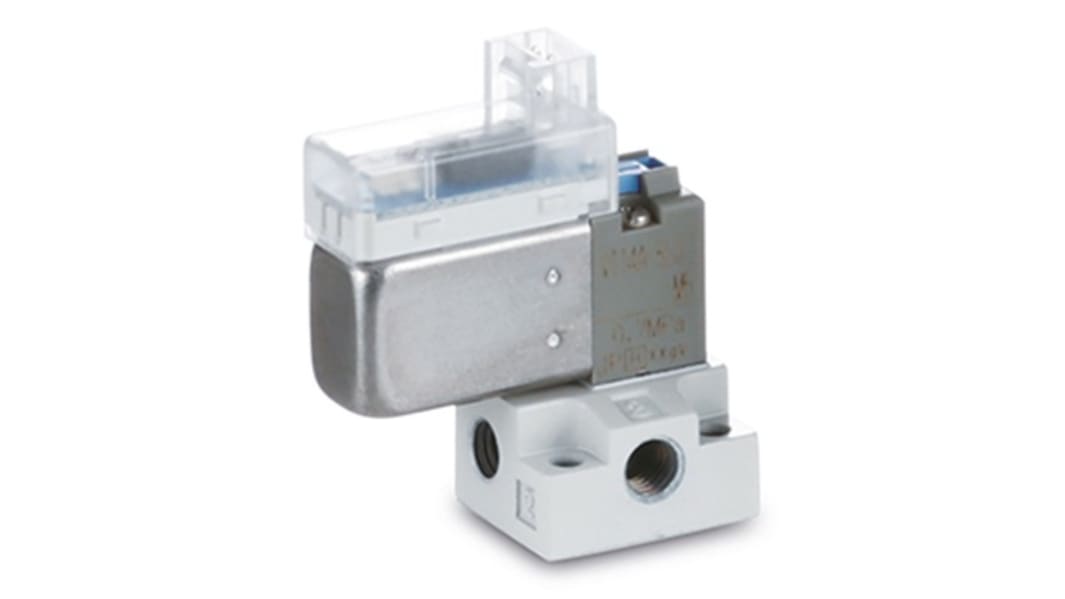

SMC Solenoid Valve - 3/2 NC Solenoid Metric V114A Series 24 V dc

Subtotal (1 unit)*

Kr. 334,17

(exc. VAT)

Kr. 417,71

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 334,17

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Solenoid Valve
	Port Type	Manifold
	Port Size	M5 1/8 mm
	Connection Thread Standard	Metric
	Actuation Type	Solenoid
	Seal Material	Soft Seal
	Voltage	24 V dc
	Series	V114A
	Solenoid Type	Direct Acting
	Mount Type	Base
	Number of Ports	3
	Body Material	Die Cast Aluminium
	Maximum Operating Pressure	0.7 Mpa
	Maximum Pilot Pressure	0.7MPa
	Port Gender	Female
	Valve Function	3/2 NC
	Minimum Operating Temperature	-10°C
	Maximum Flow Rate	24L/min
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.35W
	Standards/Approvals	RoHS
	Hazardous Area Certification	No
	Number of Positions	2
	Electrical Connection Type	DIN Terminal

	Select all
	Brand SMC
	Product Type Solenoid Valve
	Port Type Manifold
	Port Size M5 1/8 mm
	Connection Thread Standard Metric
	Actuation Type Solenoid
	Seal Material Soft Seal
	Voltage 24 V dc
	Series V114A
	Solenoid Type Direct Acting
	Mount Type Base
	Number of Ports 3
	Body Material Die Cast Aluminium
	Maximum Operating Pressure 0.7 Mpa
	Maximum Pilot Pressure 0.7MPa
	Port Gender Female
	Valve Function 3/2 NC
	Minimum Operating Temperature -10°C
	Maximum Flow Rate 24L/min
	Maximum Operating Temperature 50°C
	Solenoid Power Consumption 0.35W
	Standards/Approvals RoHS
	Hazardous Area Certification No
	Number of Positions 2
	Electrical Connection Type DIN Terminal

The SMC 3 port solenoid valve is a compact, lightweight, and high flow valve designed for piloting process valves or actuator applications.

Can be manifold mounted

Power saving version
