SMC Vacuum Filter - ZFC Series, 5μm, 6 Dia. mm Port Connection
- RS Stock No.:
- 175-9946
- Mfr. Part No.:
- ZFC74
- Brand:
- SMC
52 In stock for same day dispatch
Added
Price Each
Kr. 160,27
(exc. VAT)
Kr. 200,34
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 160,27 |
| 5 - 9 | Kr. 154,99 |
| 10 + | Kr. 150,81 |
- RS Stock No.:
- 175-9946
- Mfr. Part No.:
- ZFC74
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

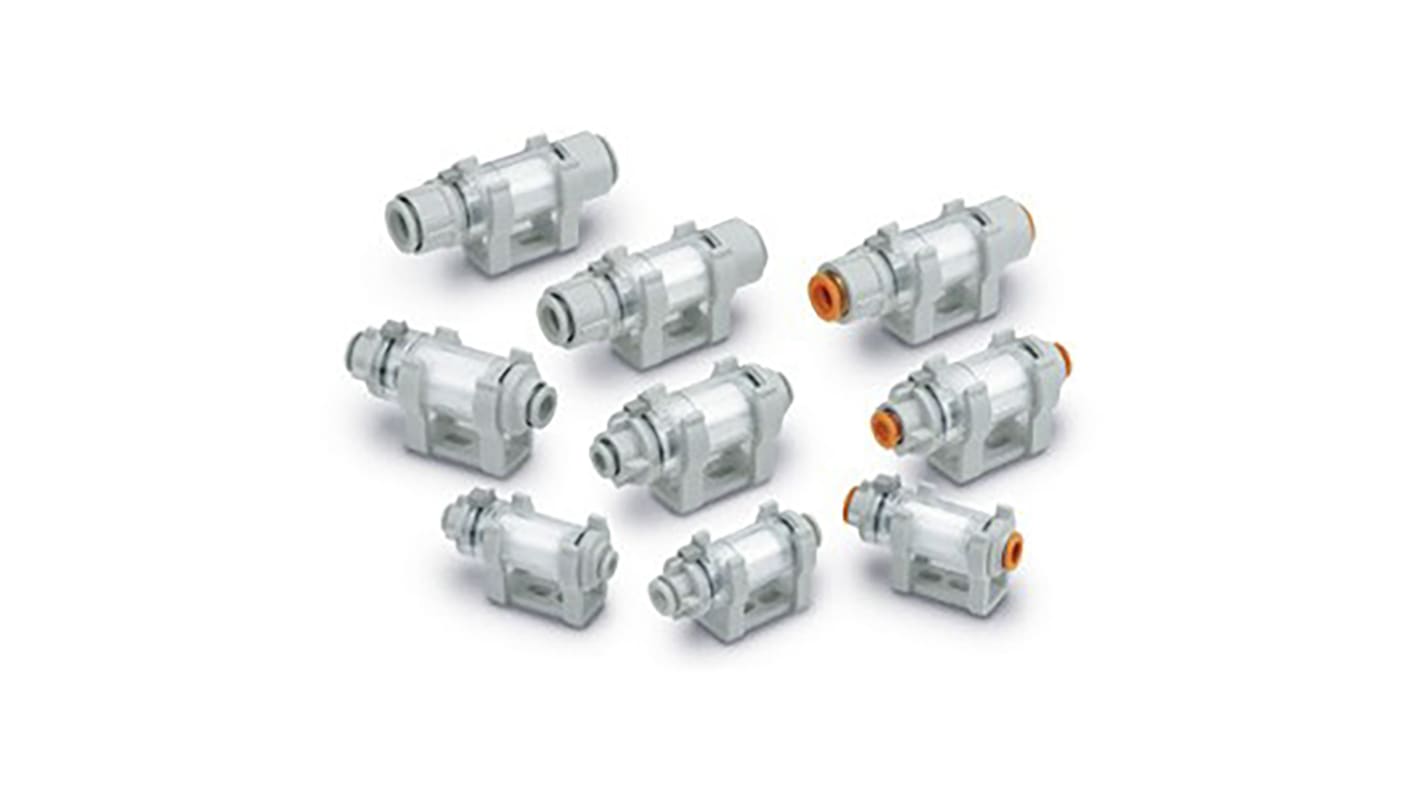

Series ZFC5 and ZFC7 are in-line air filters that prevent trouble in equipment caused by contaminants in the air. Both positive pressure and vacuum pressure can be used with a single unit. During positive pressure, a lock mechanism prevents components from being scattered when they are loosened. The ZFC series is light weight and compact, and the flexible mounting orientation makes it easy to install to the line. The ZFC is available in 5 metric sizes and 4 inch sizes.
One unit offers both positive and negative pressure
Metric and inch sizes
One-touch fittings
Metric and inch sizes
One-touch fittings
Specifications
Attribute | Value |
|---|---|
| Port Connection | 6 Dia. mm |
| Filtration Size | 5µm |
| Manufacturer Series | ZFC |
| Maximum Flow Rate | 100L/min |
| Maximum Operating Pressure | 1 MPa |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Pressure | -100kPa |
