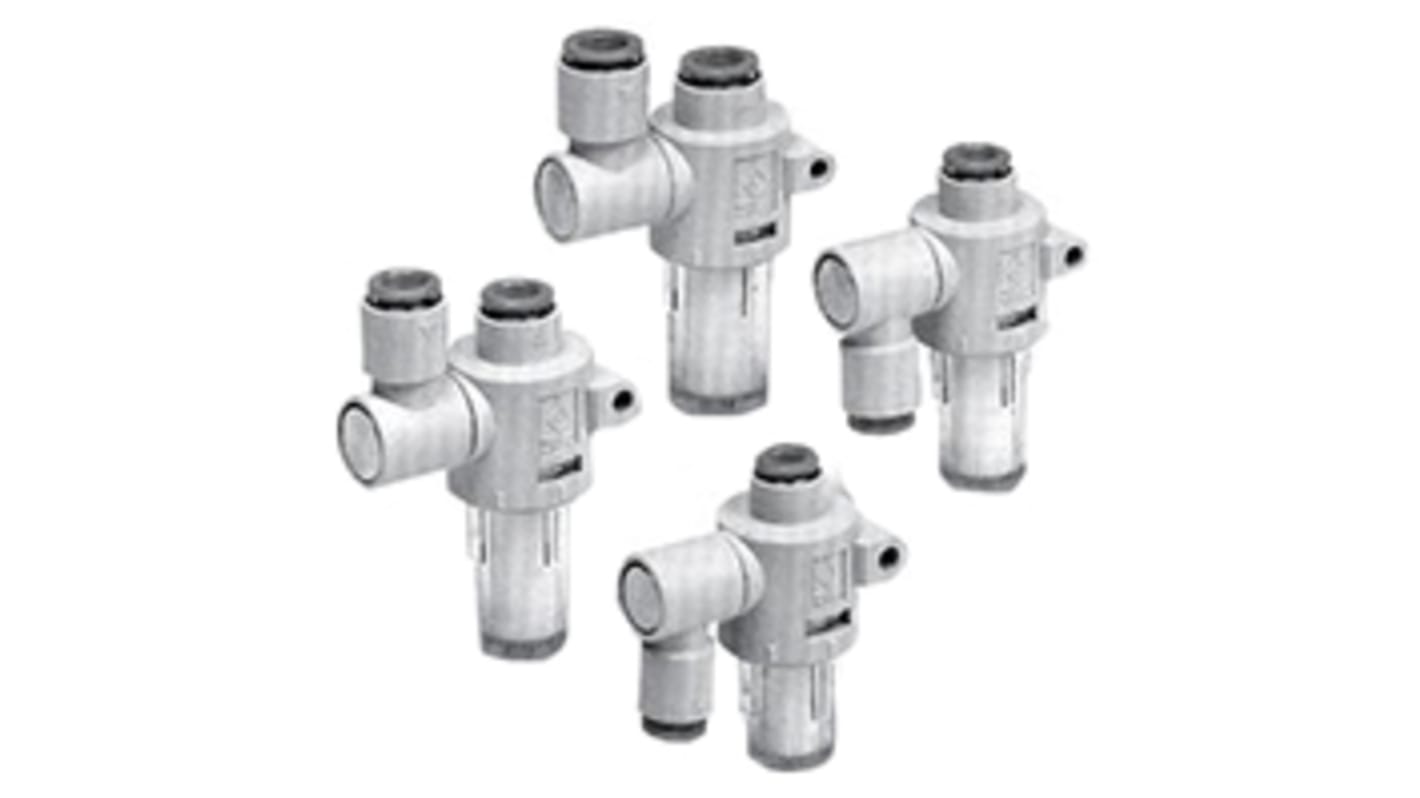

SMC Vacuum Filter - ZFB Series, 30 μm, 4 mm Port Connection

Bulk discount available

Subtotal (1 unit)*

Kr. 197,25

(exc. VAT)

Kr. 246,56

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Vacuum Filter
	Port Size	4 mm
	Filtration Size	30μm
	Series	ZFB
	Maximum Flow Rate	10L/min
	Housing Material	Polyester
	Seal Material	Nitrile Rubber (NBR)
	Element Material	Polyvinyl Fluoride
	Overall Length	53mm
	Maximum Operating Pressure	0.5 Mpa
	Maximum Operating Temperature	60°C
	Minimum Operating Pressure	0.15MPa
	Minimum Operating Temperature	0°C
	Overall Width	48mm
	Standards/Approvals	RoHS
	Overall Height	26mm

	Select all
	Brand SMC
	Product Type Vacuum Filter
	Port Size 4 mm
	Filtration Size 30μm
	Series ZFB
	Maximum Flow Rate 10L/min
	Housing Material Polyester
	Seal Material Nitrile Rubber (NBR)
	Element Material Polyvinyl Fluoride
	Overall Length 53mm
	Maximum Operating Pressure 0.5 Mpa
	Maximum Operating Temperature 60°C
	Minimum Operating Pressure 0.15MPa
	Minimum Operating Temperature 0°C
	Overall Width 48mm
	Standards/Approvals RoHS
	Overall Height 26mm

Compact and lightweight

Protects vacuum equipment

Large filtration area

Easy replacement of element

Install to protect vacuum equipment, avoid reverse positive pressure blow
