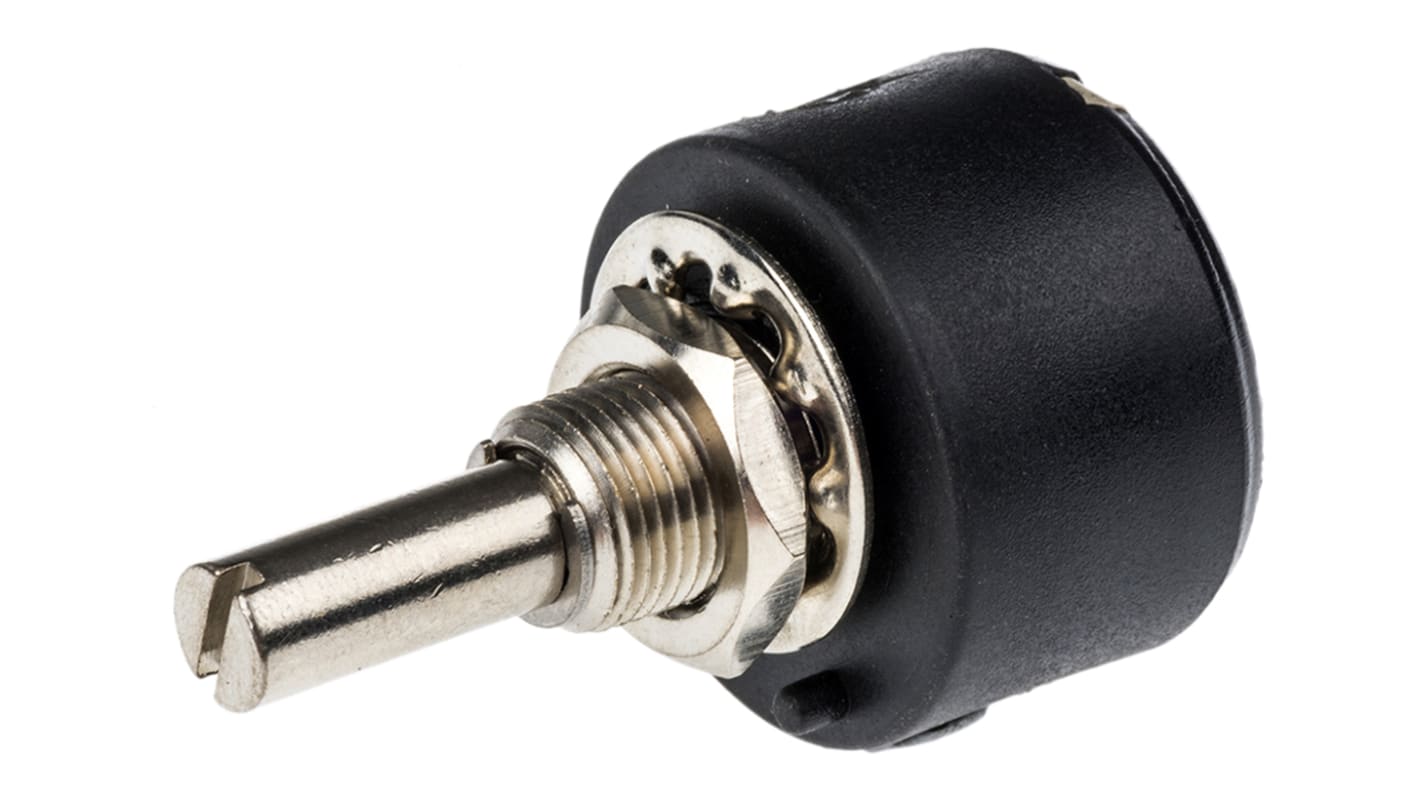

RS PRO 1 Gang Rotary Wirewound Potentiometer with an 6 mm Dia. Shaft - 25kΩ, ±10%, 1W Power Rating, Linear, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

RS PRO 25 mm Wirewound Potentiometers - Single turn

Brought to you by RS PRO, a series of rotary potentiometers suitable for various applications. Widely used within electronics, each model can be mounted within various devices or even on PCB applications. These particular models generally have a rotational life of 100,000 revolutions and will excel within audio or electronic uses. All models are highly reliable and excellent quality.

Features and Benefits

• Robust construction
• 25 mm shaft
• 1 W power rating
• Single turn
• 285° rotation (mechanical angle)

What is a potentiometer?

A potentiometer is a variable resistor which increases or decreases the resistance in an application. Usually available as either digital or analogue, there are two main types of potentiometers, rotary and linear.

• Linear - comes in a rectangle strip shape and can be pulled up or down for the required resistance, Used a lot within sound systems for mic output or volume control.
• Rotary - the shaft is housed by a knob, you would find these on dimmer switches or speakers, turning (usually to the right) will increase the resistance amplifying the output, whether that is light, sound or voltage.

How do potentiometers work?

Used in various applications, potentiometers operate as a resistor for electronic devices. As an example, a dimmer switch you would find in place of a light switch would house a potentiometer. Whichever direction it is turned, either increases or decreases the resistance, manipulating the light output from the bulb. Another common use would be speaker or sound systems, operating as a volume switch. There are various types of element material, usually as rotary or linear, such as:

• Wire-wound
• Conductive
• Plastic
• Carbon
• Cermet

Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 25 kΩ
Number of Gangs 1
Number of Turns 1
Power Rating 1W
Electrical Taper Linear
Element Material Wirewound
Mounting Type Panel Mount
Termination Style Solder
Shaft Length 25mm
Shaft Diameter 6 mm
Tolerance ±10%
Actuator Type Slotted Shaft
Series P25
86 In stock for delivery within 1 working days
Price Each
kr 51,54
(exc. VAT)
kr 64,42
(inc. VAT)
Units
Per unit
1 - 9
kr 51,54
10 - 24
kr 46,51
25 - 49
kr 41,82
50 - 99
kr 37,55
100 +
kr 32,06
