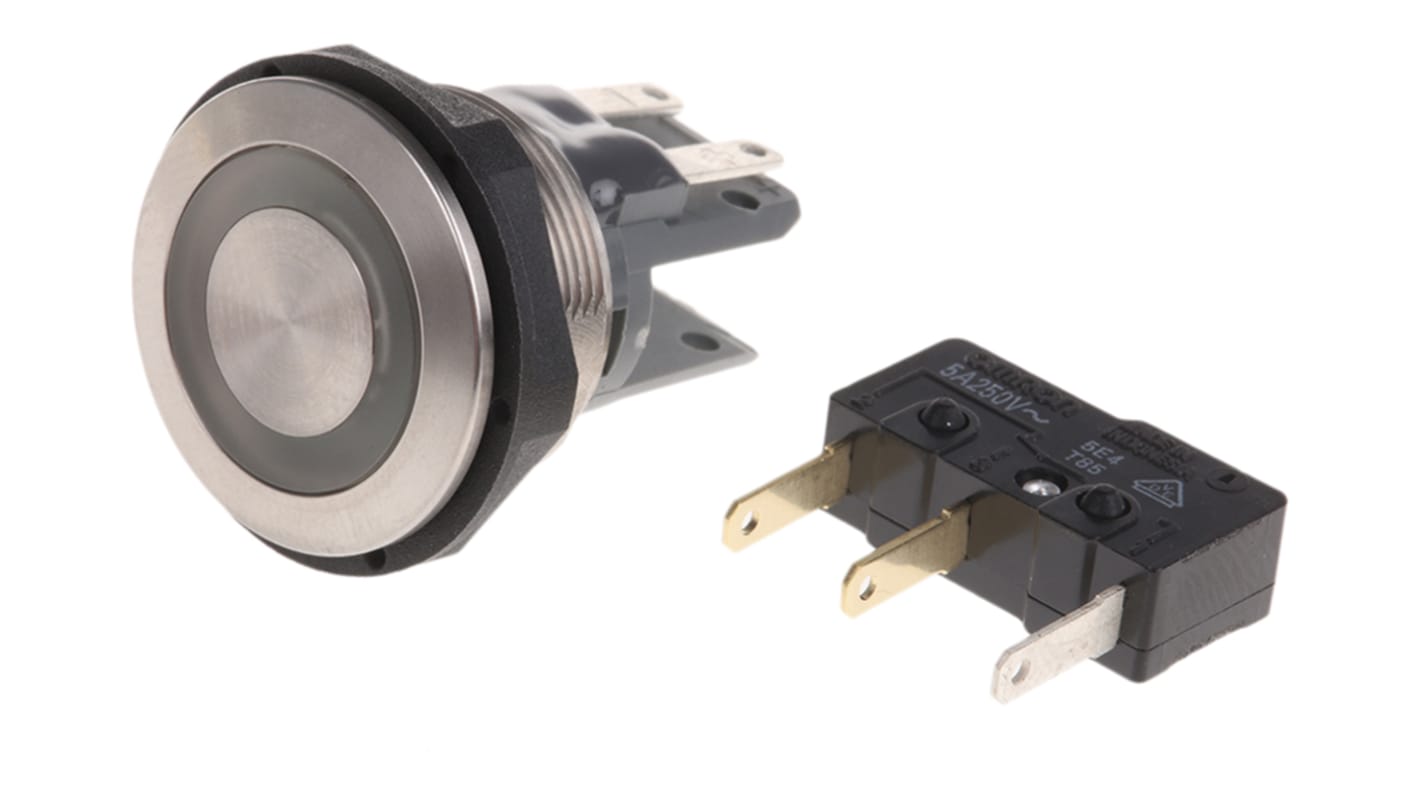

Schurter Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Red LED, 250V ac, IP40, IP67
- RS Stock No.:
- 607-7056
- Mfr. Part No.:
- 1241.6624.1121000
- Brand:
- Schurter
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
Kr. 383,13
(exc. VAT)
Kr. 478,91
(inc. VAT)
| Units | Per unit |
| 1 - 1 | Kr. 383,13 |
| 2 - 4 | Kr. 363,99 |
| 5 + | Kr. 352,55 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 607-7056
- Mfr. Part No.:
- 1241.6624.1121000
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM Series
Stainless steel button, protected against vandals in accordance with IP40
Non-illuminated, pin-point illumination or ring illumination
Long service life of up to 1.5 million actuations
Small front structure of 1.7 mm
Flat connections: 2.8 mm
Supply voltage for ring illumination: 24 Vdc
Supply voltage for pin-point illumination: 2 Vdc
Non-illuminated, pin-point illumination or ring illumination
Long service life of up to 1.5 million actuations
Small front structure of 1.7 mm
Flat connections: 2.8 mm
Supply voltage for ring illumination: 24 Vdc
Supply voltage for pin-point illumination: 2 Vdc
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Black |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP40, IP67 |
| Contact Current Rating | 5 A @ 125 V ac |
| Manufacturer Part No. | 1241.6624.1121000 |
