- RS Stock No.:
- 783-1069
- Mfr. Part No.:
- MPA106F
- Brand:
- TE Connectivity
Available to back order for despatch 26.04.2024
Added
Price Each
Kr. 233,75
(exc. VAT)
Kr. 292,19
(inc. VAT)
Units | Per unit |
1 - 4 | Kr. 233,75 |
5 - 9 | Kr. 226,82 |
10 - 24 | Kr. 219,78 |
25 - 49 | Kr. 208,01 |
50 + | Kr. 191,73 |
- RS Stock No.:
- 783-1069
- Mfr. Part No.:
- MPA106F
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

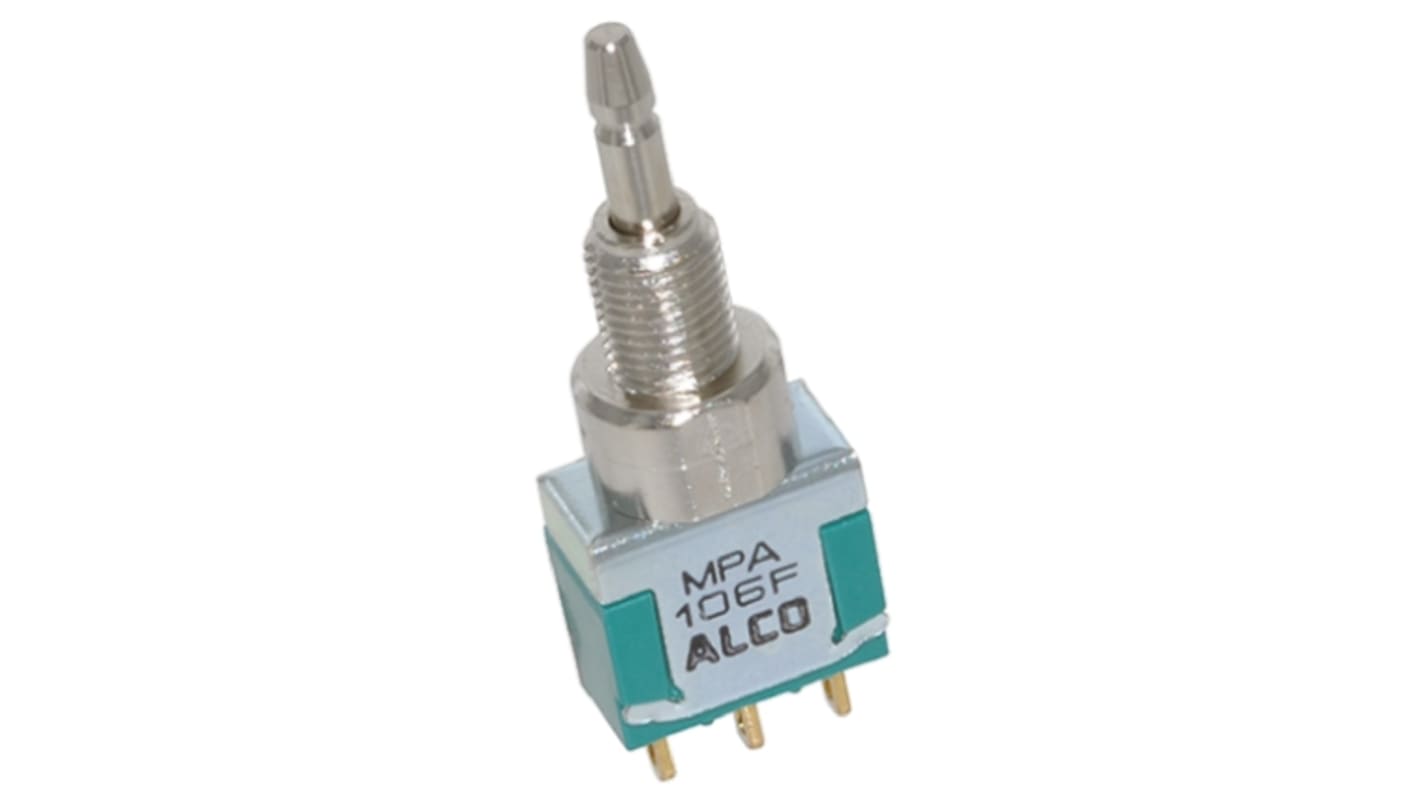

TE Connectivity - MPA Series Switch & Accessories
TE Connectivity MPA series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary or alternate switching functions and solder terminals.
These panel mount switches have a contact resistance of less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.
These panel mount switches have a contact resistance of less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.
Momentary or alternate switching
Maximum switch rating of 6A at 125Vac, 3A at 250Vac
Gold flash over silver clad copper contacts
M6 bush
Solder terminals
Contact resistance <10mΩ maximum
Dielectric strength 1500Vac for 1 minute
Insulation resistance 1000MΩ minimum
Mechanical life >50,000 operations
Operating temperature range -20 to +80°C
Maximum switch rating of 6A at 125Vac, 3A at 250Vac
Gold flash over silver clad copper contacts
M6 bush
Solder terminals
Contact resistance <10mΩ maximum
Dielectric strength 1500Vac for 1 minute
Insulation resistance 1000MΩ minimum
Mechanical life >50,000 operations
Operating temperature range -20 to +80°C
Note
Actuator button is not supplied with the switch and must be ordered separately. For a suitable 15mm black button see stock number 7830053
Momentary switches have the momentary state displayed in brackets, e.g. on - (on).
Momentary switches have the momentary state displayed in brackets, e.g. on - (on).
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 6.35mm |
Mounting Type | Panel Mount |
Contact Configuration | SPDT |
Contact Current Rating | 6 A @ 120 V ac |
Contact Material | Silver Plated Copper |
Manufacturer Part No. | MPA106F |
Terminal Type | Wire Lug |
