Reed Switch,

  • RS Stock No. 905-8881
  • Mfr. Part No. MDCG-4-17-23
  • Brand Hamlin
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

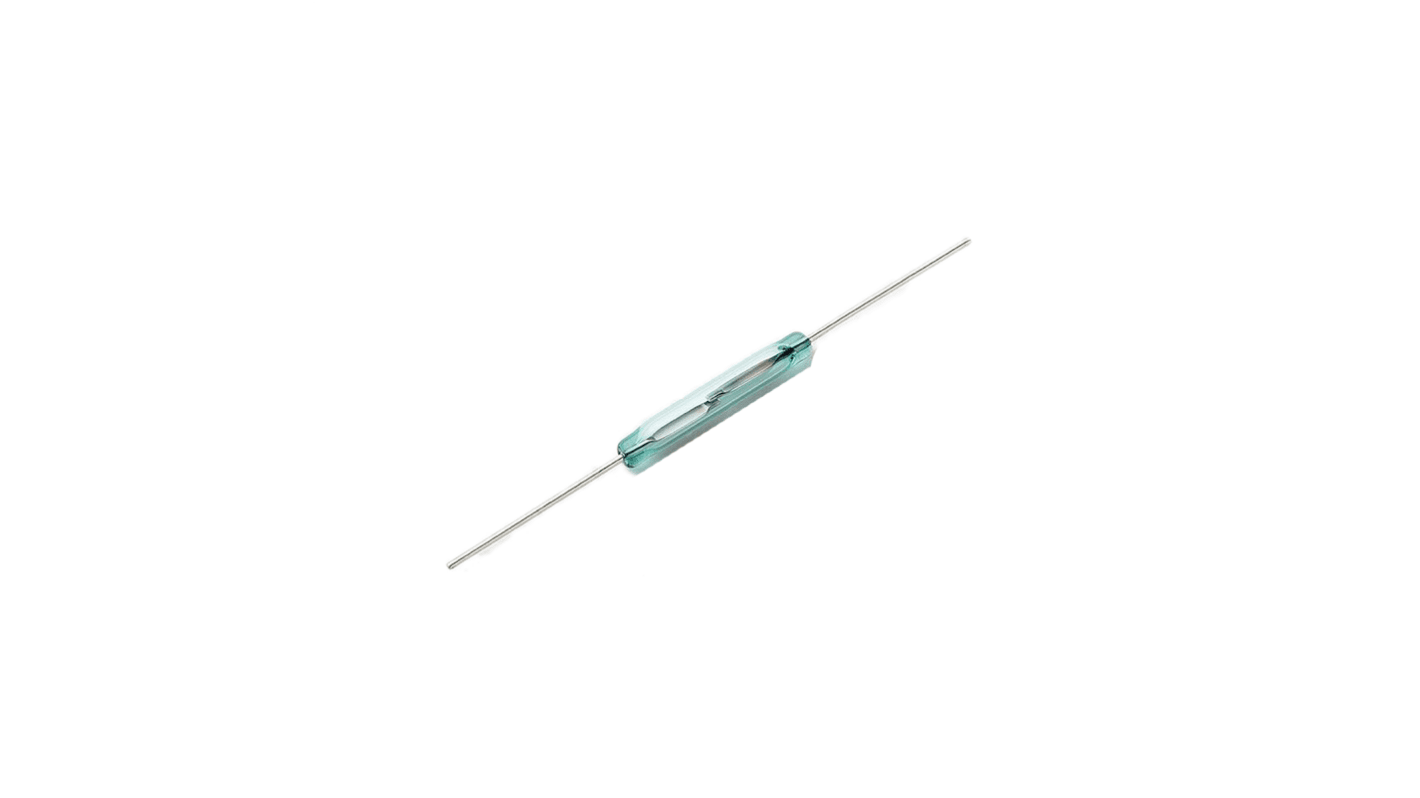

MDCG-4 Sub-miniature Axial Lead Reed Switch, Low Power

These subminiature, axial lead reed switches can switch 200 V dc at 10 W. These switches have a low electrical footprint and require zero operating power to close the contacts. These units are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. Even operating in conditions long after optical and other technology reed switches would have failed. The glass envelope measures 15.24 x 2.28 mm and house normally open contacts.

Item 905-8887 has an AT 12-18 sensitivity rating.

Item 905-8881 has an AT 17-23 sensitivity rating.

Potential Applications

Reed Relays
Security
Limit Switching
Level Sensing
Office Equipment
Industrial Control

Features

Subminiature normally open switch
Capable of switching 200 V dc or 0.5 A at up to 10 W
Operating temperature range: -40°C to +125°C

Standards

UL, ATEX Class I, Zone 2

Littelfuse

Specifications
Attribute Value
Contact Resistance 100mΩ
AT Value Range 17-23AT
Width 2.28mm
Length 15.24mm
Dimensions 2.28 (Dia.) x 15.24mm
2210 In stock for delivery within 1 working days
Price Each (In a Bag of 5)
kr 7,256
(exc. VAT)
kr 9,07
(inc. VAT)
Units
Per unit
Per Bag*
5 +
kr 7,256
kr 36,28
*price indicative
