- RS Stock No.:
- 506-769
- Mfr. Part No.:
- 32008 X
- Brand:
- SKF
- RS Stock No.:
- 506-769
- Mfr. Part No.:
- 32008 X
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Product Details

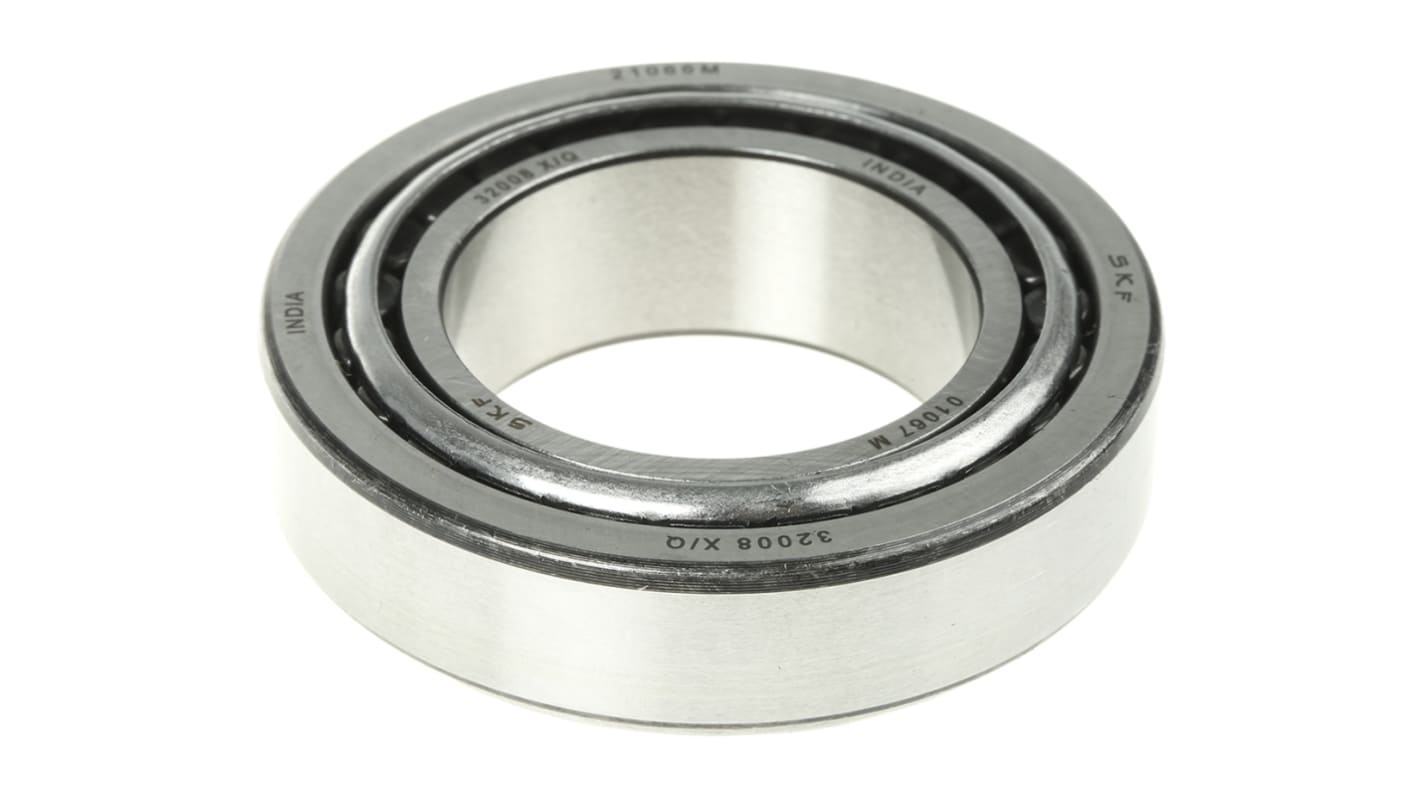

SKF Roller Bearing, Tapered, Single Row, 40mm ID, 68mm OD - 32008 X
Need to reduce friction and noise in your machine motion systems? Choose this tapered roller bearing from SKF. The tapered style reduces mechanical stress to prolong the service life of the roller bearing, while the flange and roller end encourage lubricant formation for quiet performance. A static load rating of 71kN means this roller bearing can withstand heavy loads. When in motion, this device can withstand 60kN, so it's a reliable choice for demanding applications such as heavy machinery and vehicle parts.
High limiting speed of 9500rpm for efficient performance
Compact dimensions of 68 (OD) and 40mm (ID) for use in small applications
Cup and cone assembly for simple maintenance
Allows misalignment of between 2 and 4 minutes of arc, for easier installation
Bearings and rings are heat-stabilised up to +120°C for use in harsh environments
Compact dimensions of 68 (OD) and 40mm (ID) for use in small applications
Cup and cone assembly for simple maintenance
Allows misalignment of between 2 and 4 minutes of arc, for easier installation
Bearings and rings are heat-stabilised up to +120°C for use in harsh environments
Applications
Mining industry
Aviation
Agricultural machinery
Aviation
Agricultural machinery
What type of load can a tapered roller bearing take?
A tapered roller bearing provides stability when faced with axial load and thrust. This includes operations that use heavy rotational movement such as vehicle crankshafts.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 40mm |
Outside Diameter | 68mm |
Roller Bearing Type | Taper |
Race Width | 19mm |
Bore Type | Tapered |
Static Load Rating | 71kN |
Number of Rows | 1 |
Dynamic Load Rating | 64.7kN |
End Type | Open |
Reference Speed | 7500rpm |
Limiting Speed | 9500rpm |
Fatigue Limit Load | 7.65kN |
