Endress+Hauser PT100 Temperature Sensor 4 Wire, 200 °C Max
- RS Stock No.:
- 288-6054
- Distrelec Article No.:
- 304-27-021
- Mfr. Part No.:
- TM311-AAC0BH2BBB2A1
- Brand:
- Endress+Hauser
Subtotal (1 unit)*
Kr. 1 722,04
(exc. VAT)
Kr. 2 152,55
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 1 722,04 |
*price indicative
- RS Stock No.:
- 288-6054
- Distrelec Article No.:
- 304-27-021
- Mfr. Part No.:
- TM311-AAC0BH2BBB2A1
- Brand:
- Endress+Hauser
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Endress+Hauser | |
| Sensor Type | PT100 | |
| Product Type | Temperature Sensor | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | 200°C | |
| Termination Type | Screw | |
| Interface | IO-Link | |
| Number of Wires | 4 | |
| Hazardous Area Certification | No | |
| Response Time | 1.5s | |
| Select all | ||
|---|---|---|
Brand Endress+Hauser | ||
Sensor Type PT100 | ||
Product Type Temperature Sensor | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed 200°C | ||
Termination Type Screw | ||
Interface IO-Link | ||
Number of Wires 4 | ||
Hazardous Area Certification No | ||
Response Time 1.5s | ||
- COO (Country of Origin):
- DE

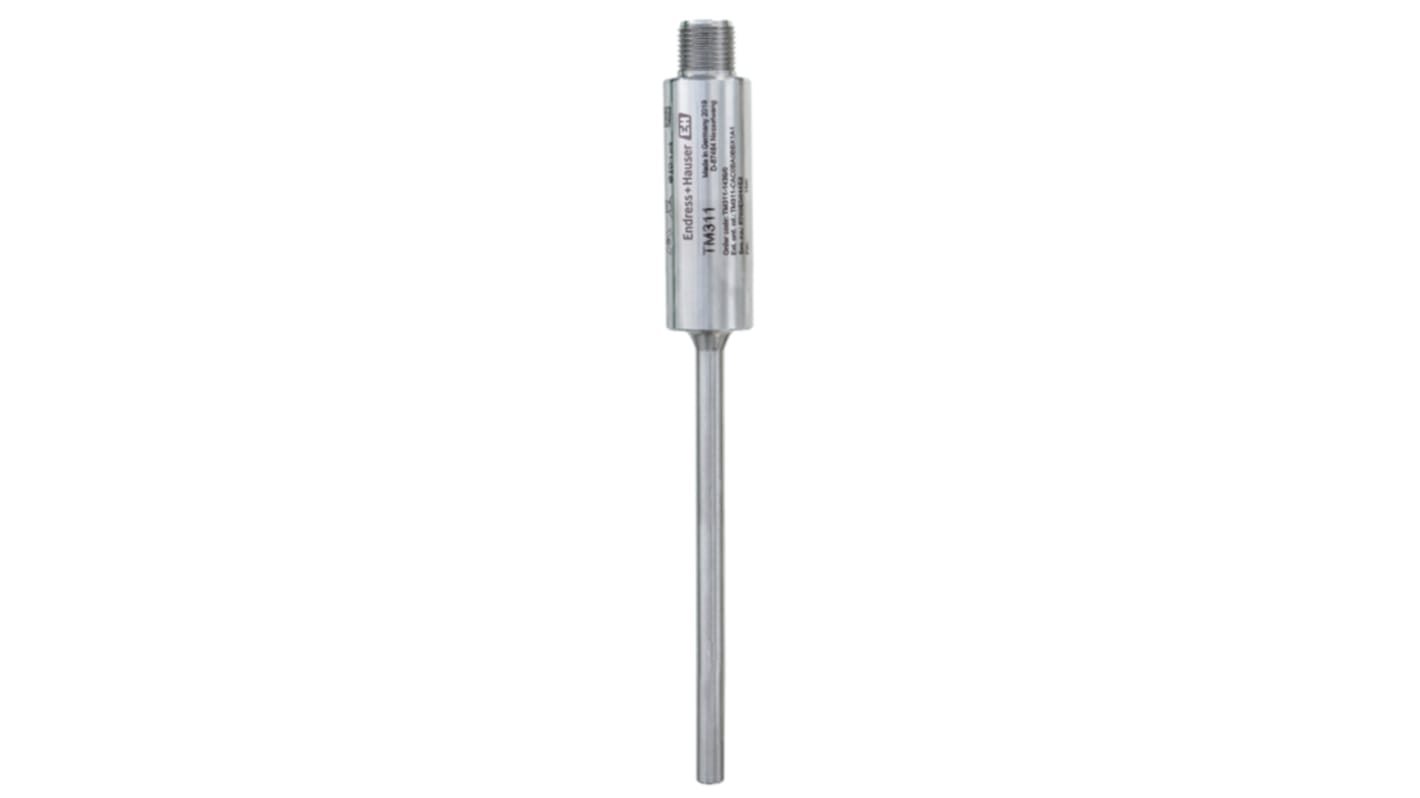

The Endress+Hauser iTHERM CompactLine TM311 is a thermometer that provides accurate and fast process temperature measurements in hygienic and aseptic applications. It is available with a common Pt100 RTD or a Pt100 RTD with TipSens technology reaching response times as low as 1.5 s (t90) for optimum process control. The sensor is very accurate even with short immersion lengths.
Version with iTHERM TipSens offers best-in-class response times with a T90 time of 15 seconds
Version with iTHERM TipSens ensures a highly accurate measurement for short immersion lengths for example in small pipelines in the food industry
Fast installa
