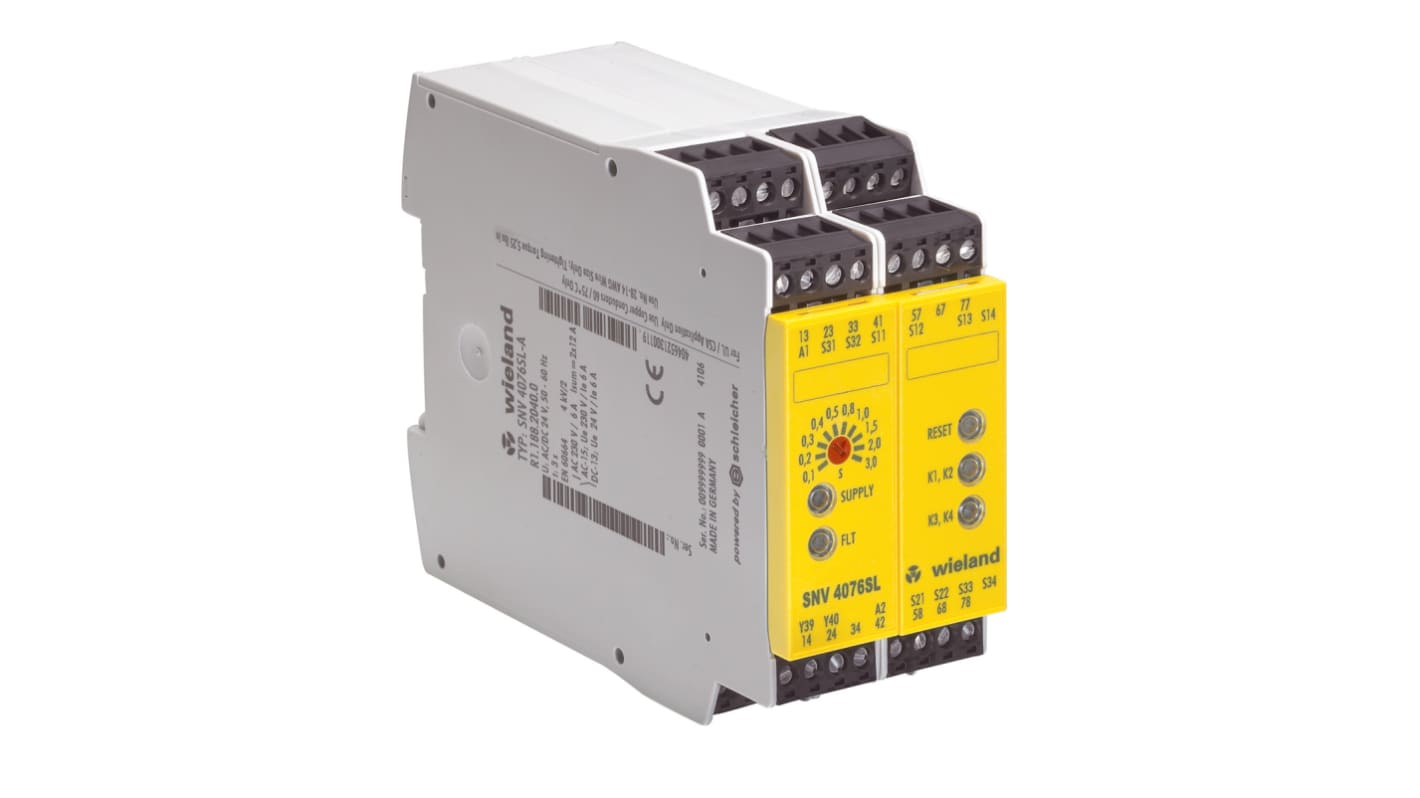

Wieland Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 24V dc, 7 Safety Contacts
- RS Stock No.:
- 122-2492
- Mfr. Part No.:
- R1.188.2070.0
- Brand:
- Wieland
Available to back order for despatch 25.04.2024
Added
Price Each
Kr. 6 766,65
(exc. VAT)
Kr. 8 458,31
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 6 766,65 |
- RS Stock No.:
- 122-2492
- Mfr. Part No.:
- R1.188.2070.0
- Brand:
- Wieland
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SNV 4076SL Safety Relay with Timed Delay
Suitable for applications that require a safe timing sequence
Meet all requirements of the currently valid safety standards EN 62061, EN ISO 13849-1, Cat 4, SIL 3, PL e
Can be used as emergency stop and safety gate monitor
Single-channel or two-channel activation through contacts or semiconductors
Automatic and manual reset with reset button monitoring
3 immediate enables, 3 enables OFF-delayed, without re-triggering
Controlled stop and time monitored door lock
Cross monitoring
Meet all requirements of the currently valid safety standards EN 62061, EN ISO 13849-1, Cat 4, SIL 3, PL e
Can be used as emergency stop and safety gate monitor
Single-channel or two-channel activation through contacts or semiconductors
Automatic and manual reset with reset button monitoring
3 immediate enables, 3 enables OFF-delayed, without re-triggering
Controlled stop and time monitored door lock
Cross monitoring
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V dc |
| Number of Channels | 2 |
| Safety Contacts | 7 |
| Function | Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock |
| Reset Method | Automatic, Manual, Monitored |
| Range | safeRELAY |
| Safety Category ISO 13849-1 | 4 |
| Terminal Type | Screw |
| Series | SNV 4076SL |
| Width | 114mm |
| Depth | 96.5mm |
| Length | 45mm |
- RS Stock No.:
- 122-2492
- Mfr. Part No.:
- R1.188.2070.0
- Brand:
- Wieland
