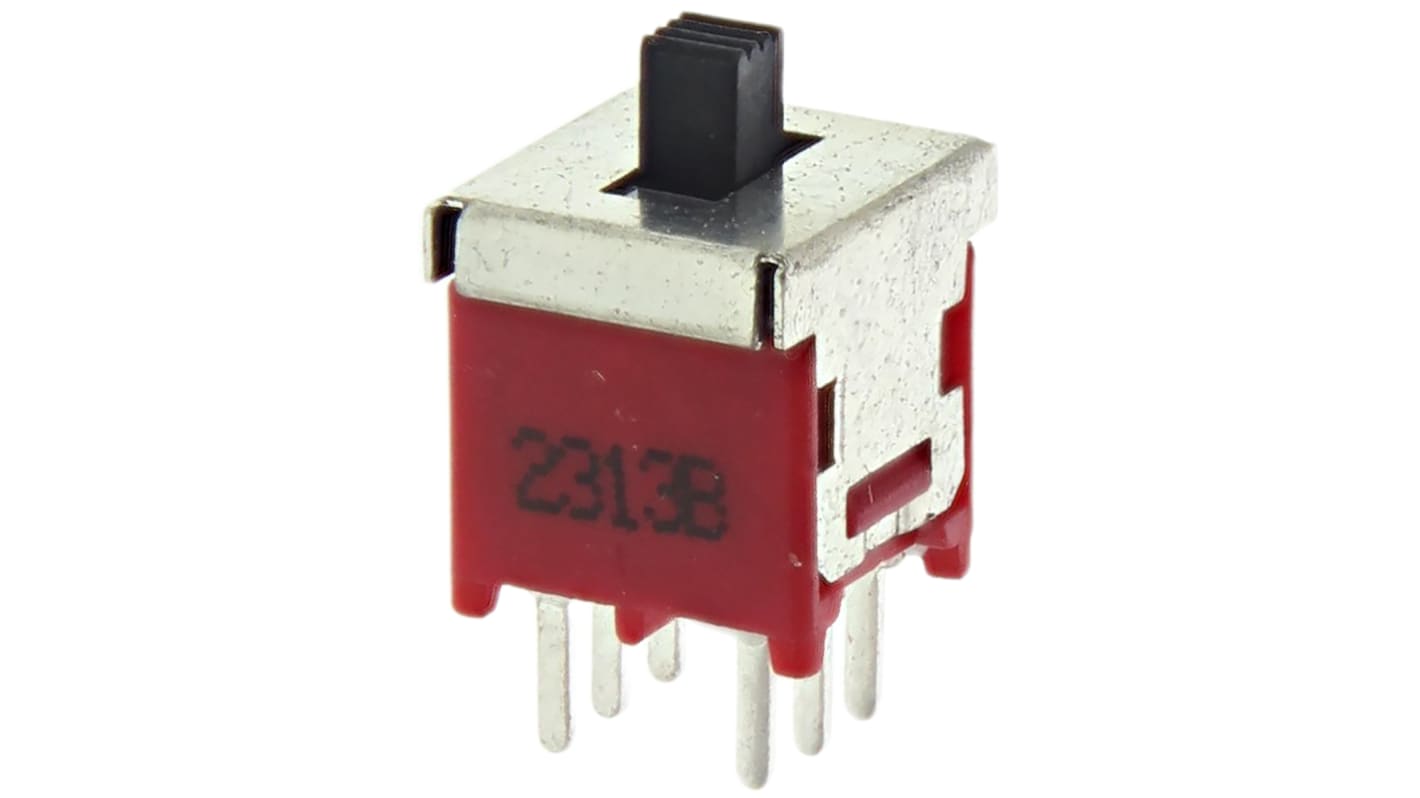

RS PRO PCB Slide Switch DPDT On-Off-On 3 A @ 120 V ac Top
- RS Stock No.:
- 734-7252
- Brand:
- RS PRO
103 In stock for same day dispatch
Added
Price Each
Kr. 56,76
(exc. VAT)
Kr. 70,95
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 56,76 |
| 10 - 49 | Kr. 51,04 |
| 50 - 99 | Kr. 42,46 |
| 100 - 249 | Kr. 39,71 |
| 250 + | Kr. 36,30 |
- RS Stock No.:
- 734-7252
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
RS - Ultra Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Mounting Type | PCB |
| Switch Operation | On-Off-On |
| Contact Current Rating | 3 A @ 120 V ac |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Length | 10.16mm |
| Width | 9mm |
| Depth | 9.2mm |
| Dimensions | 10.16 x 9 x 9.2mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 30000Cycles |
| Voltage Rating | 120V ac |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Plated Copper Alloy |
| Actuator Material | Nylon |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
