Buschjost Solenoid Valve 8240200.9101.23050, 2 port(s) , NC, 230 V ac, 1/2in
- RS Stock No.:
- 529-5269
- Mfr. Part No.:
- 8240200.9101.23050
- Brand:
- Buschjost
7 In stock for same day dispatch
Added
Price Each
Kr. 1 002,10
(exc. VAT)
Kr. 1 252,62
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 1 002,10 |
| 5 + | Kr. 971,08 |
- RS Stock No.:
- 529-5269
- Mfr. Part No.:
- 8240200.9101.23050
- Brand:
- Buschjost
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

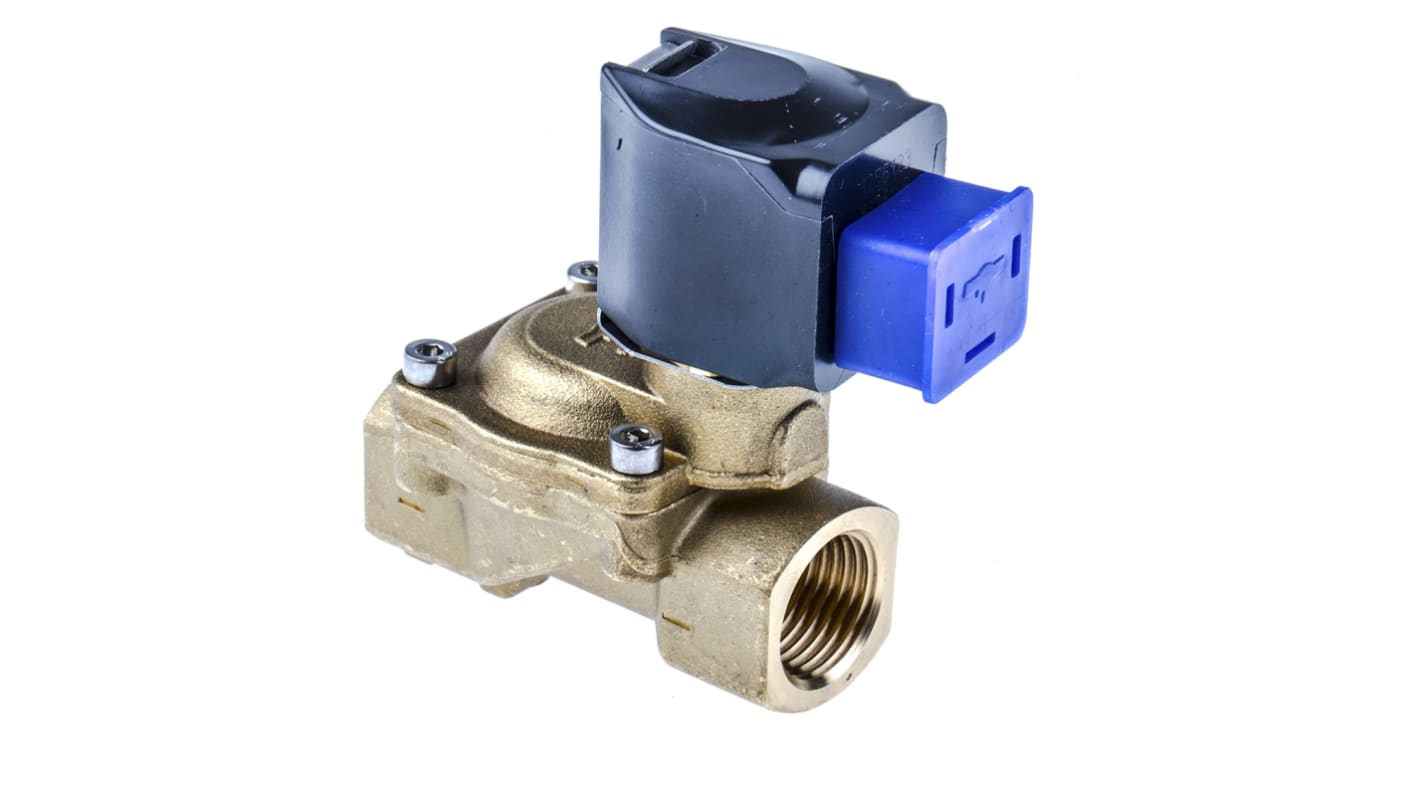

Buschjost Solenoid Valve
The Buschjost 82400 series 1/2inG female solenoid valve has a supply voltage of 230VAC. This 2-port NC position valve has a brass body with NBR seal with a clear compact design. It is ideally suitable for neutral gaseous and liquid fluids.
Features and Benefits
Maximum working pressure is 16bar
Flow factor (Kv) is 3.8m³/h
High flow capability
Damped closing
Simple and compact design
Magnet can be replaced without tools
Operating temperature ranges between -10°C and 50°C
Flow factor (Kv) is 3.8m³/h
High flow capability
Damped closing
Simple and compact design
Magnet can be replaced without tools
Operating temperature ranges between -10°C and 50°C
Certifications
CE certified
EN 60529
IP65 rated
EN 60529
IP65 rated
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Number of Ports | 2 |
| Connection Size | 1/2in |
| Connection | 1/2 in G Female |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Air, Water |
| Type | 2/2 |
| Orifice Diameter | 12mm |
| Series | 82400 |
| Body Material | Brass |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | -10 → +50 °C |
| Minimum Operating Temperature | -10°C |
| Thread Standard or Connection Type | G |
| Connection Gender | Female |
| Maximum Operating Temperature | +50°C |
| Flow Factor Kv | 3.8m³/h |
