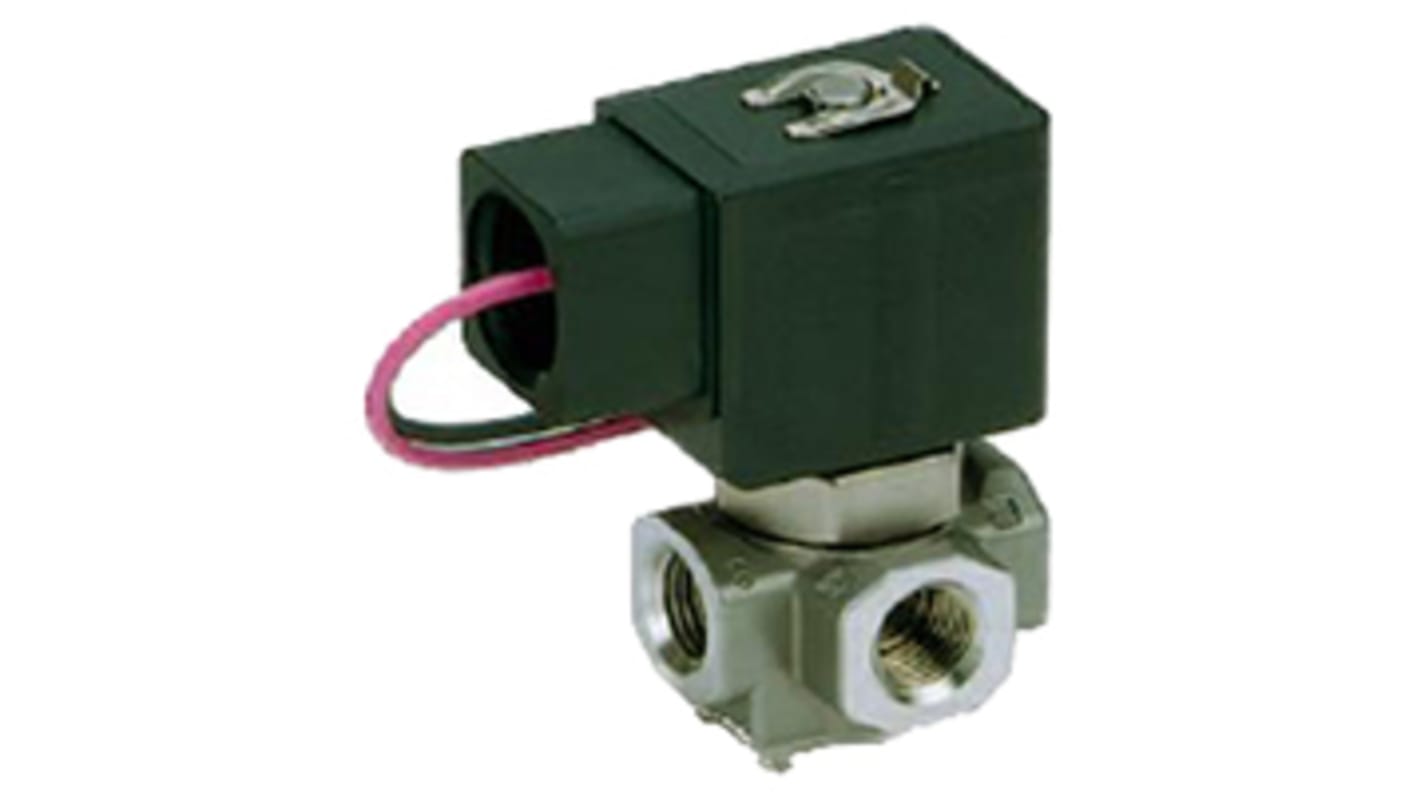

SMC Solenoid Valve VX3130-02N-5DZ1-B, 3 port , NC, 24 V dc, 1/4in

  • RS Stock No. 840-6967
  • Mfr. Part No. VX3130-02N-5DZ1-B
  • Brand SMC
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): JP
Product Details

VX3 Direct Acting Three Port Solenoid Valve

The SMC VX3000 series is a direct acting, 3 port solenoid valve. Suited to various applications such as air, oil, water and steam. Valves are easily replaced without changing existing piping.

DIN electrical connection
Class B & Class H coil available
Compact & lightweight
Long life
IP65 coil cnclosure
Can be fitted with NBR, FKM or EPDM seals

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 3
Operation Direct
Connection 1/4 in NPT Female
Connection Size 1/4in
Default Valve Position NC
Suitable Applications Water
Type 3/2
Orifice Diameter 3mm
Body Material Brass
Maximum Working Pressure 2 MPa
Operating Temperature Range -20 → +60 °C
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Connection Gender Female
Series VX3
Thread Standard or Connection Type NPT
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each
kr 545,12
(exc. VAT)
kr 681,40
(inc. VAT)
Units
Per unit
1 +
kr 545,12
Not available for next day delivery
