Name: RS PRO Industrial Surge Protector, 40kA, 4.6kV, DIN Rail Mount
Brand: RS PRO
SKU: 101-775
Price: 1220.30 NOK
Availability: OutOfStock

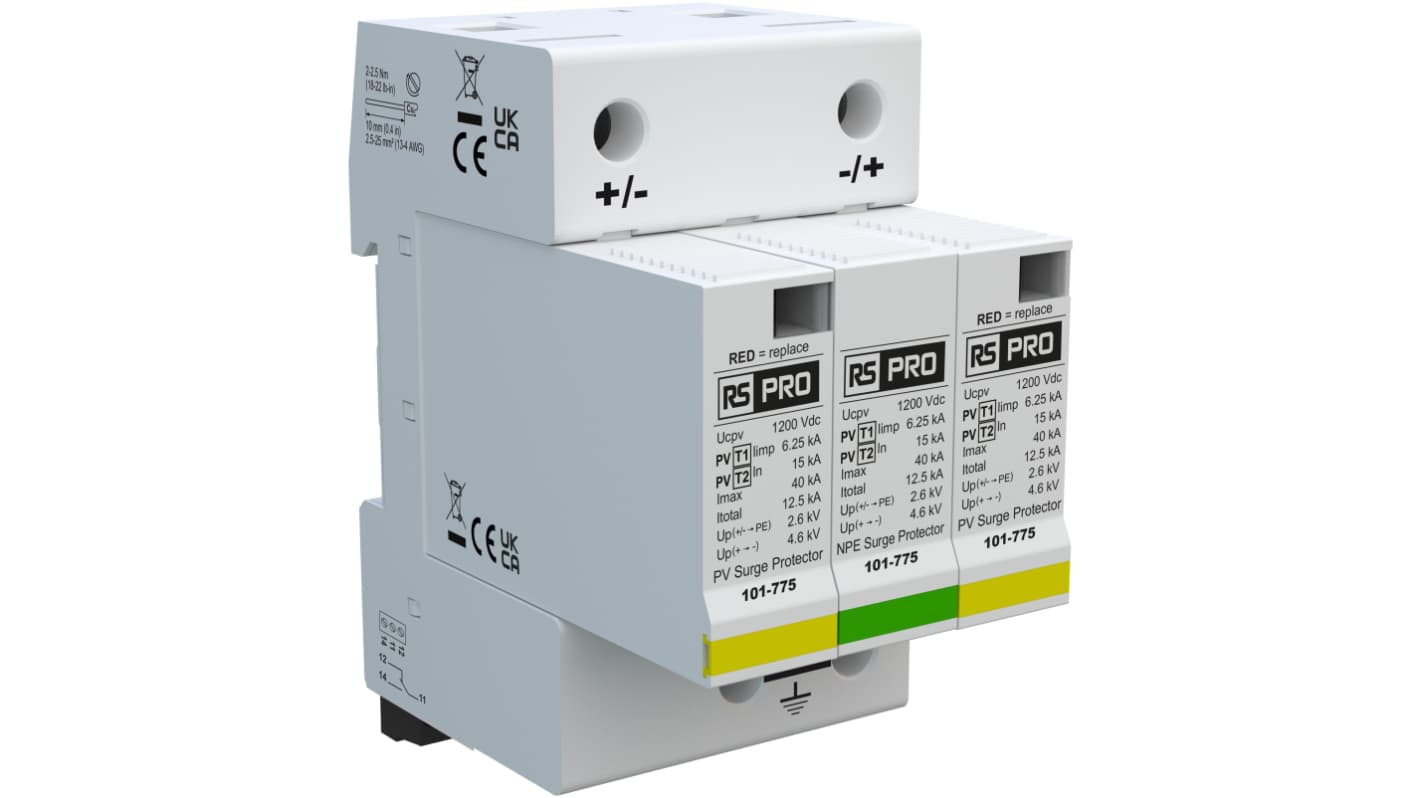

RS PRO Type 1+2 PV Surge Protector

The RS PRO Type 1+2 surge protector safeguards photovoltaic power grids. This pluggable SPD cartridge allows quick and easy replacement in case of a fault. Its protection circuit features a fault-resistant Y-circuit with a gas discharge tube and high-power varistors, delivering robust and reliable defence. Additionally, the unit includes a remote signalling system to monitor the status of the surge protector in real time.

Features and Benefits

Type 1+2 PV surge protector

Remote signalling of disconnection: Output on changeover contact

SPD type: 1+2

Network: PV network 1000 Vdc

Max. PV operating voltage: 1200 Vdc

Residual Current: None

Max. discharge current: 40 kA

Total Maximum discharge current: 60 kA

Impulse current by pole: 6.25 kA

Standards compliance: IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5

Applications

Photovoltaic Systems

Units	Per unit
1 - 9	Kr. 976,24
10 +	Kr. 878,59

Select all	Attribute	Value
	Brand	RS PRO
	Device Type	Surge Protector
	Maximum Surge Current	40kA
	Voltage Protection Rating	4.6kV
	Mounting Style	DIN Rail Mount

	Select all
	Brand RS PRO
	Device Type Surge Protector
	Maximum Surge Current 40kA
	Voltage Protection Rating 4.6kV
	Mounting Style DIN Rail Mount
