Phoenix Contact Surge Protector, 8 kA, 700 V, DIN Rail
- RS Stock No.:
- 267-1813
- Distrelec Article No.:
- 303-10-591
- Mfr. Part No.:
- 1334595
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
Kr. 2 504,99
(exc. VAT)
Kr. 3 131,24
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 2 504,99 |
*price indicative
- RS Stock No.:
- 267-1813
- Distrelec Article No.:
- 303-10-591
- Mfr. Part No.:
- 1334595
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Surge Protector | |
| Voltage Protection Rating | 700V | |
| Maximum Surge Current | 8kA | |
| Mount Type | DIN Rail | |
| Impulse Discharge Current | 1kA | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC 61643-21, EN 61643-21 | |
| Width | 6.2mm | |
| Depth | 100mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Surge Protector | ||
Voltage Protection Rating 700V | ||
Maximum Surge Current 8kA | ||
Mount Type DIN Rail | ||
Impulse Discharge Current 1kA | ||
IP Rating IP20 | ||
Standards/Approvals IEC 61643-21, EN 61643-21 | ||
Width 6.2mm | ||
Depth 100mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
RoHS Status: Exempted
- COO (Country of Origin):
- DE

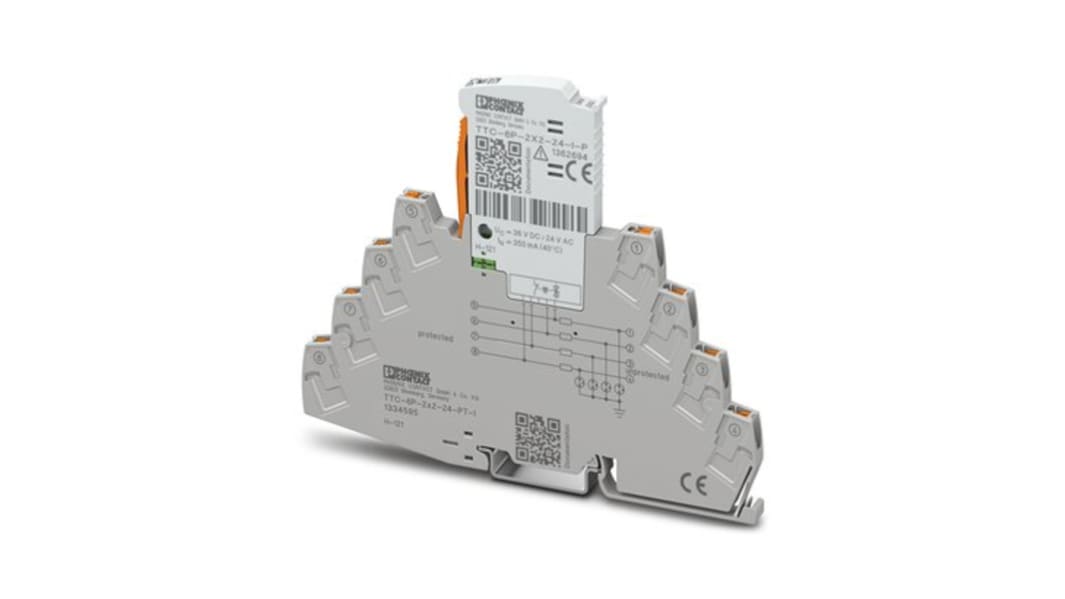

The Phoenix Contact surge protection, consisting of protective plug and base element, with integrated status indicator for two 2-wire floating signal circuits. Easy function monitoring on-site or optionally via remote signalling, with optical monitoring, without additional effort. Servicing without affecting the signal replace the surge protection module without affecting the measuring signal.
Flexible choice push-in technology or screw connection
IP20 degree of protection
