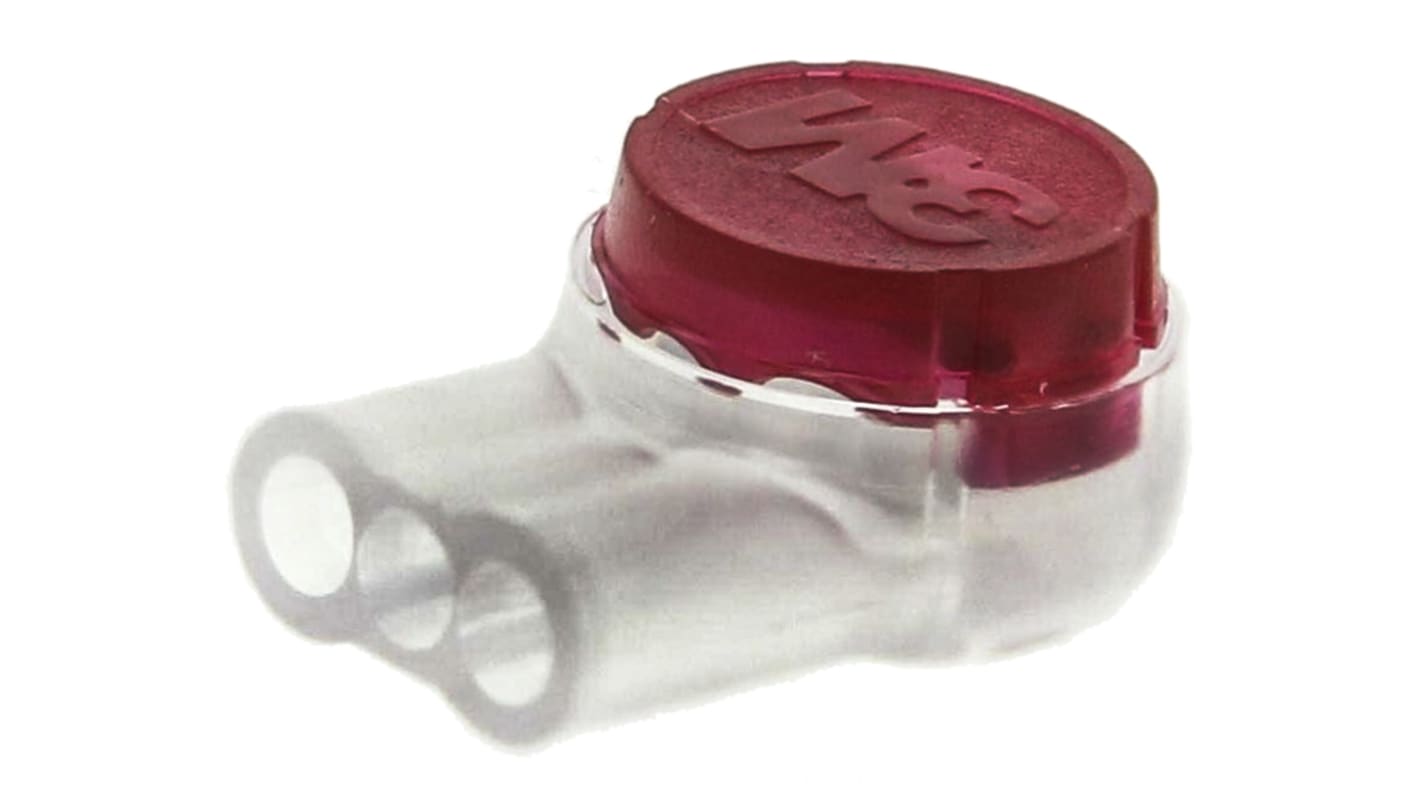

3M Female Scotchlok Connector, , Scotchlok, 3 Way Crimp Termination
- RS Stock No.:
- 218-8950
- Mfr. Part No.:
- ROUGE UR2 84437
- Brand:
- 3M
Available to back order for despatch when stock is available
Added
Price 1 Box of 100
Kr. 250,46
(exc. VAT)
Kr. 313,08
(inc. VAT)
| Box(es) | Per Box | Per unit* |
| 1 - 9 | Kr. 250,46 | Kr. 2,505 |
| 10 - 49 | Kr. 230,42 | Kr. 2,304 |
| 50 + | Kr. 220,40 | Kr. 2,204 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 218-8950
- Mfr. Part No.:
- ROUGE UR2 84437
- Brand:
- 3M
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Scotchlok® connectors and crimping tools
Range of terminal and shunt connectors for connectors on copper conductors.
Applications: telecommunications (all networks including ISDN and Numeris), low currents, alarm systems etc.
Uses the principle of self-stripping connection by the U-shaped metallic element.
Sealed UY connectors that provide perfect resistance to over-currents and overvoltage.
Connectors have been used by France Telecom since 1972 (part no.: 810918R) and are TQE2-certified.
The E9BM crimping tool is recommended for crimping UR2, UB2A and 211 connectors on conductors with a diameter of 0.8 or 0.9 mm.
Applications: telecommunications (all networks including ISDN and Numeris), low currents, alarm systems etc.
Uses the principle of self-stripping connection by the U-shaped metallic element.
Sealed UY connectors that provide perfect resistance to over-currents and overvoltage.
Connectors have been used by France Telecom since 1972 (part no.: 810918R) and are TQE2-certified.
The E9BM crimping tool is recommended for crimping UR2, UB2A and 211 connectors on conductors with a diameter of 0.8 or 0.9 mm.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Number of Ways | 3 |
| Mounting Type | Cable Mount |
| Termination Method | Crimp |
| Housing Material | PP |
| Wire Size | 26 → 19 |
| Colour | Red |
| Series | Scotchlok |
