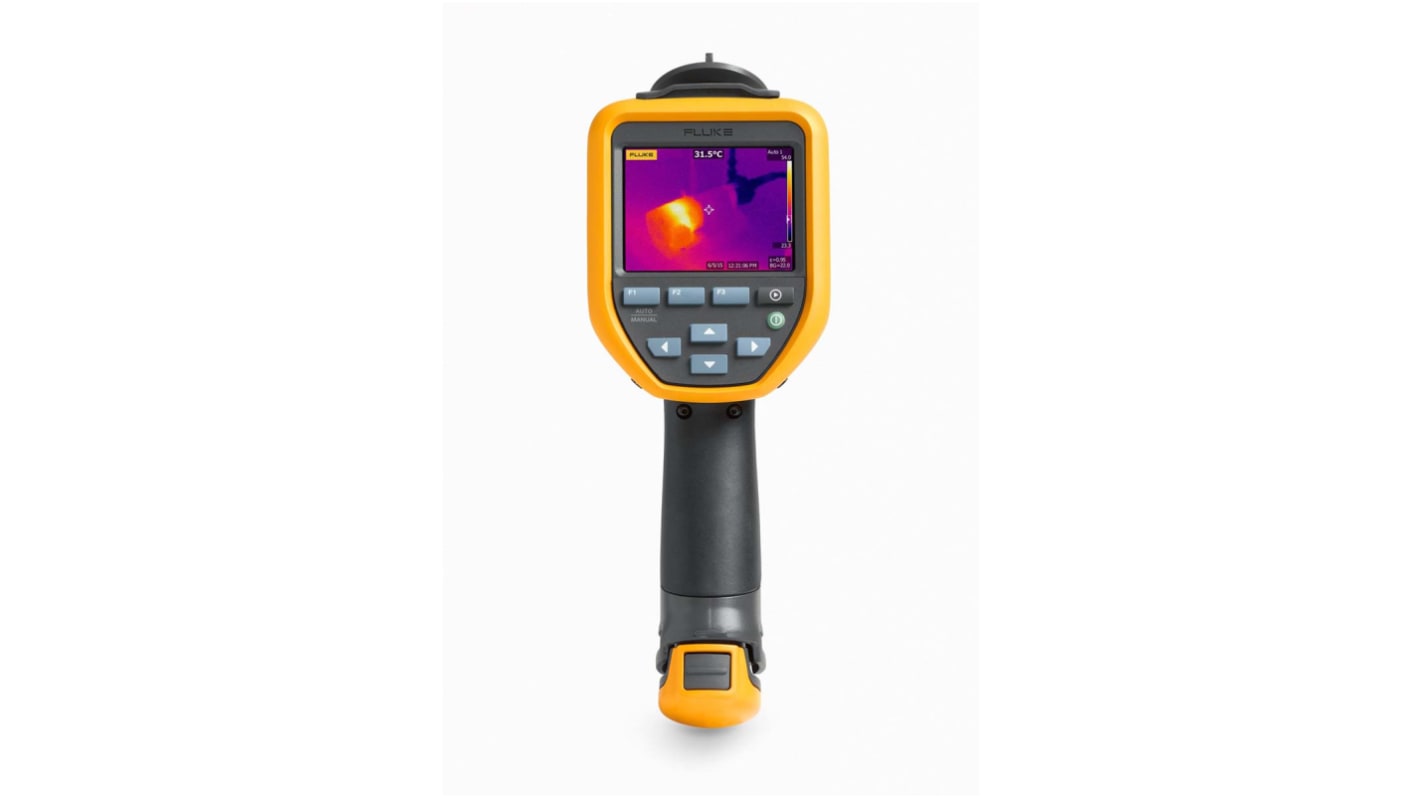

Fluke TiS20+ TiS20+/TiS20+ MAX USB Mini-Port, Wireless Thermal Imaging Camera, 150 °C 120 x 90 pixel Detector Resolution

View all Thermal Imaging Cameras
Discontinued

Calibration Options:

presentation
Fluke TiS20+ TiS20+/TiS20+ MAX USB Mini-Port, Wireless Thermal Imaging Camera, 150 °C 120 x 90 pixel Detector Resolution
Calibration Type:
RSCAL
RS Stock No.
198-1154

Each

Kr. 19 412,42

(exc. VAT)

Kr. 24 265,52

(inc. VAT)

RS Stock No.:
198-1147
Distrelec Article No.:
301-67-895
Mfr. Part No.:
FLK-TIS20+ 9HZ
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Product Type

Thermal Imaging Camera

Battery Type

Lithium-ion

Maximum Temperature Measurement

150°C

Detector Resolution

120 x 90 pixel

Display Resolution

320 x 240 pixel

Interface Type

USB Mini-Port, Wireless

Horizontal Angle of View

50°

Thermal Sensitivity

60mK

Vertical Angle of View

38°

Focus Type

Fixed

Power Source

AC Power Supply, Lithium-ion Battery

Refresh Rate

9Hz

Battery Life

16h

Minimum Focus Distance

0.5m

Standards/Approvals

IEC 61010-1

Series

TiS20+/TiS20+ MAX

Weight

720g

Diagonal Display Size

3.5in

Length

145mm

Emissivity

On-screen emissivity correction

Spatial Resolution IFOV

7.6mrad

Auto Capture on Camera

Yes

Hazardous Area Certification

No

Image Storage

MicroSD

Image Enhancement

Yes

Accuracy

± 2 °C

Visual Camera

Yes

Battery Level Indicator

Yes

Voice Recorder

Yes

Width

101 mm

Model Number

TiS20+

COO (Country of Origin):
CN

FLUKE Thermal Imaging Camera, 320 x 240 LCD Display Resolution, 4GB Internal Memory - TiS20+ Series - FLK-TIS20+ 9HZ


Do you need a quick and hassle-free way to pinpoint components that are overheating? Choose this thermal imaging camera from FLUKE. When the device is aimed at an object or area, its display highlights warm regions in yellow, red or orange and cooler ones in blue and purple. As it only weighs 720g, this is a lightweight contender that's easy to carry when you're measuring on the go. It has a broad reading range between -20°C and +150°C to provide you with top-notch functionality.

Fluke TiS20+ Thermal Imaging Cameras are an ideal model of thermal imaging camera for first line troubleshooting in electrical and mechanical equipment. Hot spots and cold spots can be early indicators of potential issues, so high-quality thermal imaging is an important tool to use to identify these areas that are invisible to the naked eye and prevent trouble in the future. Whether you are inspecting HVAC systems or motors and electrical panels deep within a plant's infrastructure, the TiS20+ is designed to make your job quicker and easier.

The Fluke TiS20+'s 3.5" LCD touchscreen display captures infrared images that highlight smaller temperature differences from farther away. This allows for precise readings of hard-to-reach or hard-to-access equipment, ensuring all equipment is thoroughly assessed and maintained safely.

IR-Fusion™ blends visible light images with an overlaid infrared image to locate problems more easily, the settings for which can be adjusted by sliding a finger across the screen. The TiS20+ is designed to survive a variety of environments and this, combined with its small size, makes it the ideal camera for everyday use. It is water and dust resistant (both tested to IP54 standards) and can survive drops of up to 2m in height.

With Fluke Connect® Asset Tagging, you can eliminate the tedium of sorting and organizing your infrared images by simply scanning your asset’s QR code or barcode. This then allows your infrared images and all your date- and time-stamped information to be stored to your predefined folders, saving you time, and preventing confusion when sorting through files and loading images later, especially if you are working at various locations rather than close to the office. Fluke Connect® software optimises your TiS20+ by allowing you to create professional reports in minutes while capturing full radiometric data to efficiently support your maintenance program.

Features & Benefits


• 3.5 inch display

• 120 x 90 infrared resolution (10,800 pixels)

• Edit and optimise images and create detailed reports quickly

• Combine infrared and visible images for simpler analysis

• 4GB internal memory and slot for optional micro SD card up to 32GB

• Temperature measurement range of -20°C → +150°C

• 9Hz frame rate

• 320 x 240 (76,800 pixels) Infrared resolution

• 16 hours battery life per battery pack and 2.5 hours charging time

• Lithium-ion smart battery pack with five-segment LED display to show charge level

• IP54 rating - protected against dust, limited ingress, water spray from all directions

• Rugged - can withstand a 2 m drop

• Automatic shutdown for power saving

• Safety - EC 61010-1: Pollution Degree 2

• Quickly scans large areas with point and shoot simplicity

• Allows real-time communication by email from your smart phone with Fluke Connect

• Thermal and visual-light images can be overlaid, so you get a more accurate picture of your equipment

Applications


The Fluke TiS20+ handheld thermal imaging camera is a great tool for troubleshooting, preventive and predictive maintenance, building diagnostics, and research and development and are used by:

Commercial electricians

HVAC/R technicians

Maintenance technicians

Electrical engineers

Automotive sector

Construction industry

How long is this product's battery life?


The lithium-ion battery in this camera will last for over 16 hours, so you can rely on it to stay the course over long shifts. An LED display lets you know how much charge you have left.

Supplied with

Infrared camera, AC power supply (including universal AC adapters), rugged lithium-ion smart battery, USB cable, soft transport bag. Available by free download: Fluke Connect Desktop software and user manual.
