Chauvin Arnoux C.A 1950 Thermal Imaging Camera RS Cal, Temp Range: -20 → +250 °C 80 x 80pixel

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

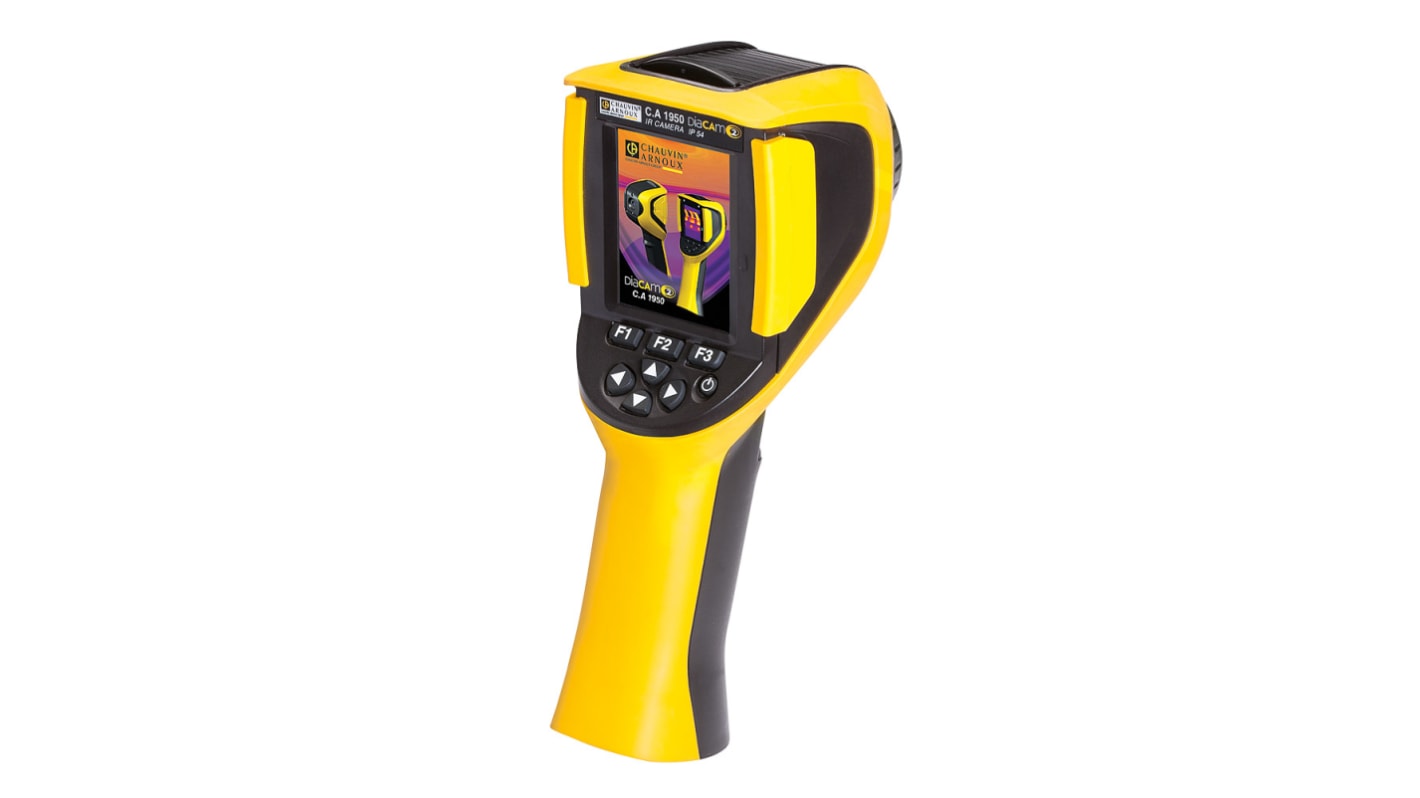

C.A 1950 DiaCAm 2 Thermal Camera

The C.A 1950 Thermal Camera makes it very simple to perform your thermal inspections for your energy audit and ensures trouble-free industrial, electrical or mechanical maintenance. The C.A 1950 is a communicating camera which can recover the necessary measurements (current, etc.) from current clamps and multimeters via Bluetooth.

80 x 80 UFPA microbolometer-type detector, 8 -14 μm
IFOV (spatial resolution) 4.4 mrad
Field of view (20°x20°)
Focus: Fixed
Temperature range -20°C to +250°C
Display mode: thermal image, real image with automatic parallax compensation
Image merging available with PC software
Measuring tools: 1 manual cursor+ 1 automatic detection + Min Max on adjustable area + Temperature profile + Isotherm
Adjustable parameters: emissivity, environmental temperature, distance, relative humidity
2 GB (approx. 4000 images) on micro SD card, up to 32 GB with removable card
Environmental protection: IP 54

Supplied with

C.A 1950 Thermal camera, hard case, 4 NiMH batteries, battery charger, 1 micro SD HD card, 1 USB cable, 1 set of Bluetooth earphones, CAmReport software on CD ROM, operating manuals.

Thermal cameras

Specifications
Attribute Value
Temperature Measurement Range -20 → +250 °C
Detector Resolution 80 x 80pixel
Display Resolution 320 x 240pixel
Application Building, Electrical Cabinet
Model Number C.A 1950
Thermal Sensitivity 80mK
Best Temperature Measurement Accuracy ±2 °C
Focus Type Fixed
Calibrated RSCAL
Minimum Focus Distance 40cm
Display Size 2.8in
Weight 700g
Available to back order for despatch when stock is available
Price Each
kr 12 866,79
(exc. VAT)
kr 16 083,49
(inc. VAT)
Units
Per unit
1 +
kr 12 866,79
Not available for next day delivery
