RS PRO Plug In Timer Relay, 12 → 240V ac/dc, 0.1 s → 100days, 2-Function, DPDT
- RS Stock No.:
- 178-5022
- Brand:
- RS PRO
39 In stock for same day dispatch
Added
Price Each
Kr. 1 234,64
(exc. VAT)
Kr. 1 543,30
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 1 234,64 |
| 5 - 9 | Kr. 1 185,25 |
| 10 + | Kr. 1 135,86 |
- RS Stock No.:
- 178-5022
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

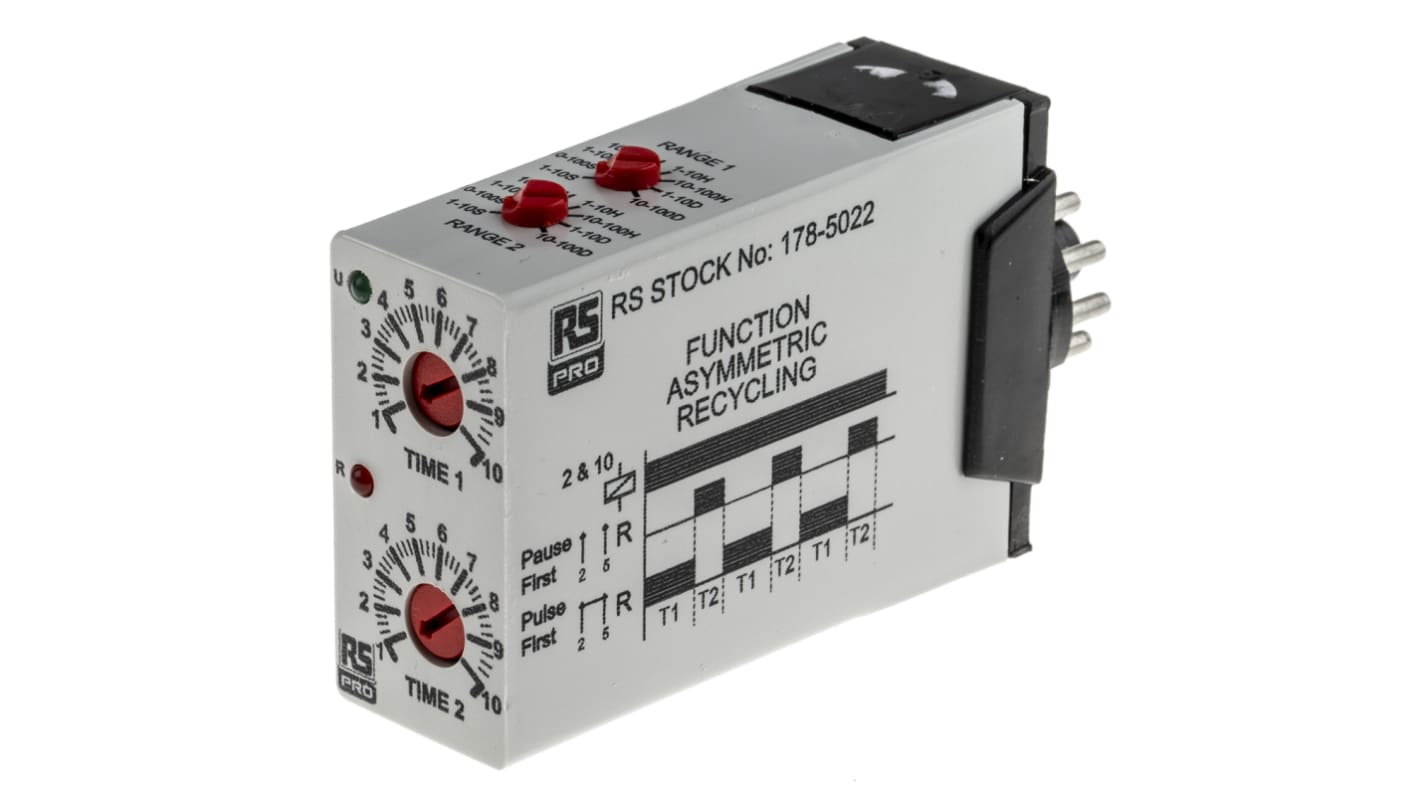

RS PRO Multi-voltage Plug In Asymmetrical Cyclic Timer Relay
An 11 pin plug in DPCO asymmetrical cyclic timer with two timers and eight different selectable time ranges from 1 sec to 100 days set independently on both.
The plug in multi-voltage timer has all pin details and the function information marked clearly on the sides of the housing for ease of operation and features LED indication of output status.
Constructed from Polycarbonate housing rated to UL94 V-0 the multi-voltage timer is hardwearing and flame retardant.
The asymmetrical cyclic timer features both Pause and Pulse functions:
Pause first – By supply on pins 2 and 10 the timing commences to energise relay contacts, then times to de-energise relay contacts. The cycle continues while supply is connected.
Pulse first – The same as above but a volt free link needs to be fitted externally across pins 2 and 5. On the connection of the supply to pins 2 and 10 the relay contacts immediately energise and then time to de-energise.
Features and Benefits
Asymmetrical Cyclic Timer Relay
DPCO
11 pin
Plug in
Muti-voltage
Pause and Pulse functions
Standards and Approvals: UL94 V-0
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | Plug In |
| Mode of Operation | Pause First, Pulse First |
| Time Range | 0.1 s → 100days |
| Number of Timer Functions | Dual Function |
| Contact Configuration | DPDT |
| Time Increment | Days, Hours, Minutes, Seconds |
| Maximum Current | 8A |
| Maximum Voltage | 250V |
| Switch Configuration | DPDT |
| Terminal Type | 11-Pin Connector |
| Power Supply | External |
| Minimum Voltage | 12V ac/dc |
| Width | 24mm |
| Depth | 74mm |
| Length | 48mm |
| Maximum Operating Temperature | +65°C |
| Time Delay | 100ms |
| Minimum Operating Temperature | -20°C |
