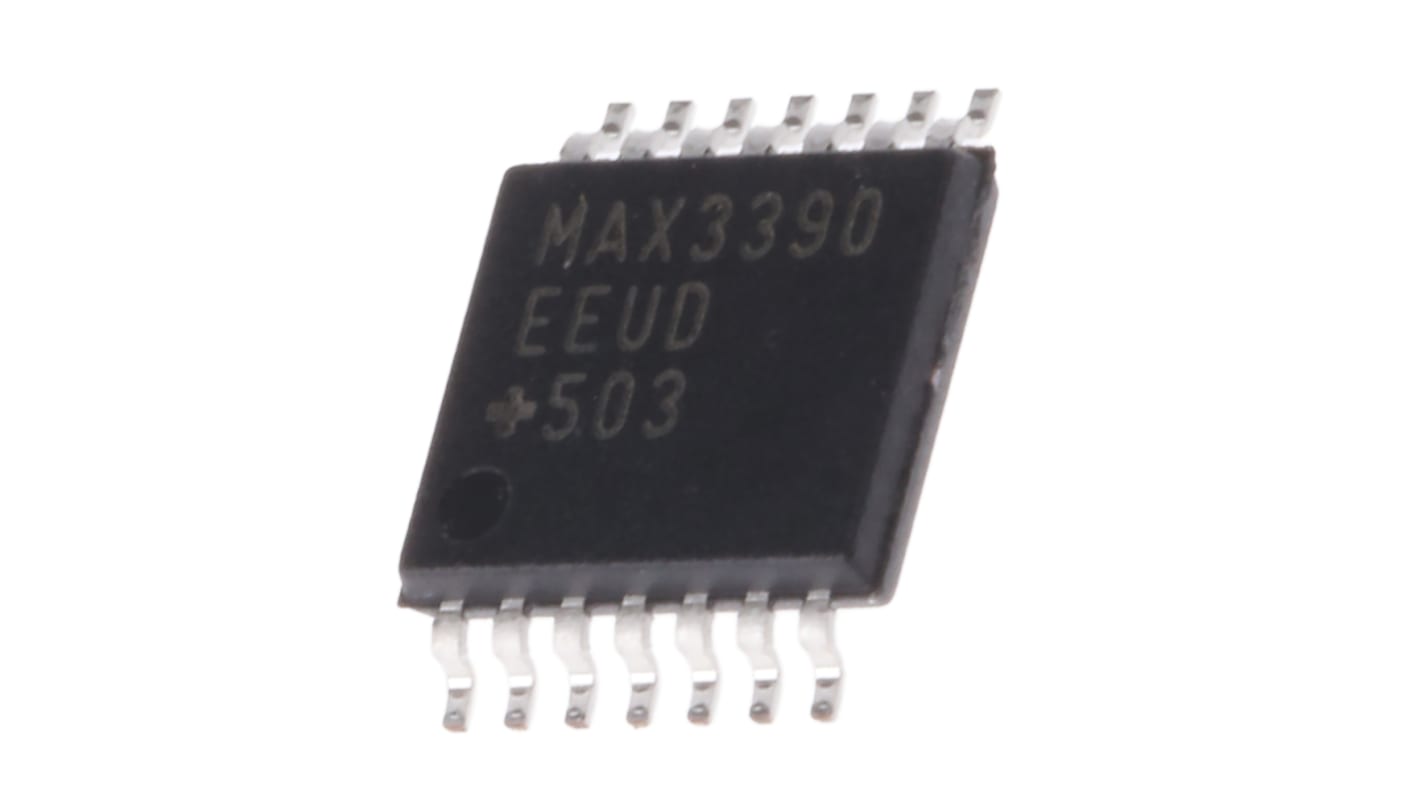

Maxim Integrated MAX3390EEUD+, Voltage Level Shifter Voltage Level Translator 4 BiCMOS, 14-Pin TSSOP
- RS Stock No.:
- 189-9163
- Mfr. Part No.:
- MAX3390EEUD+
- Brand:
- Maxim Integrated
75 In stock for same day dispatch
Added
Price Each (In a Pack of 5)
Kr. 53,906
(exc. VAT)
Kr. 67,382
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | Kr. 53,906 | Kr. 269,53 |
| 10 - 20 | Kr. 48,462 | Kr. 242,31 |
| 25 - 95 | Kr. 39,574 | Kr. 197,87 |
| 100 - 245 | Kr. 37,53 | Kr. 187,65 |
| 250 + | Kr. 33,596 | Kr. 167,98 |
| *price indicative | ||
- RS Stock No.:
- 189-9163
- Mfr. Part No.:
- MAX3390EEUD+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Line Drivers, Maxim Integrated
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Specifications
Attribute | Value |
|---|---|
| Logic Family | LVCMOS, LVTTL |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Number of Elements per Chip | 4 |
| Pin Count | 14 |
| Output Type | 3 State |
| Logic Function | Voltage Level Translator |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Maximum Low Level Output Current | .02mA |
| Maximum High Level Output Current | -0.02mA |
| Translation | BiCMOS |
| Propagation Delay Test Condition | 50pF |
| Maximum Propagation Delay Time @ Maximum CL | 1600ns |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 1.65 V |
| Minimum Operating Temperature | -40 °C |
