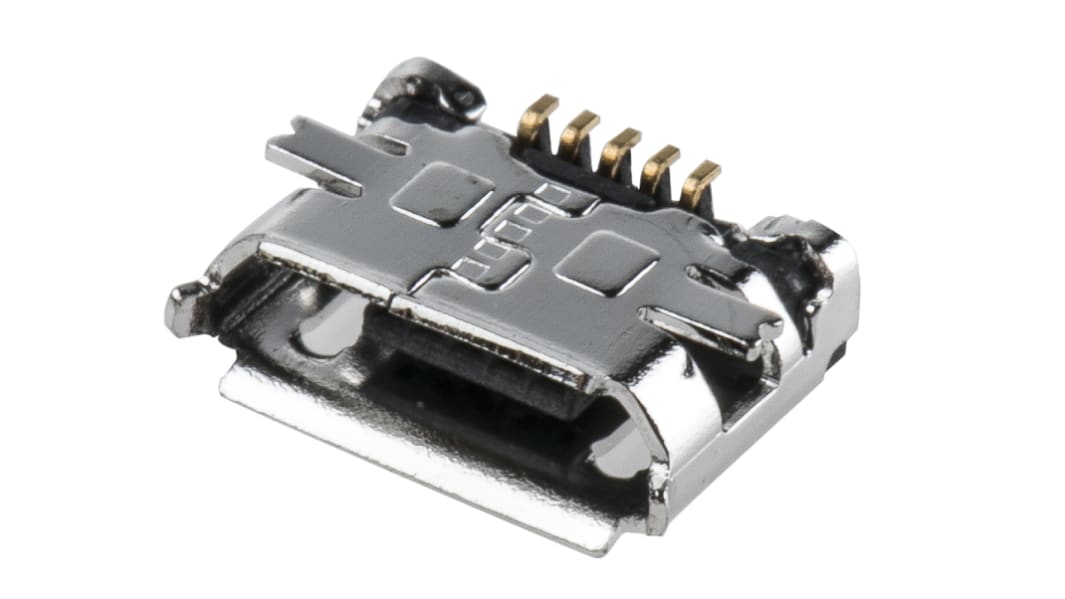

Amphenol FCI USB Connector, SMT, Socket 2.0 B, Solder, Right Angle

  • RS Stock No. 714-2344
  • Mfr. Part No. 10104110-0001LF
  • Brand Amphenol FCI
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Amphenol FCI Micro USB 2.0 Connectors

Micro USB 2.0 receptacle support OTG (On-The Go) for user accessibility and convenience. The housings of these Micro USB 2.0 receptacle connectors are made from high temperature UL94V-0 thermoplastic and metal shields provide EMI/ESD protection. These Micro USB 2.0 receptacle connectors can withstand up to 10000 insertion cycles and offer maximum receptacle to PCB retention. Available with a range of mounting and termination configurations these Micro USB 2.0 receptacle offer design flexibility for a wide range of applications. 10103592-XXXXXX – Reverse, DIP
10103593-XXXXXX – Standard, Mid-mount
10103594-XXXXXX – Standard, SMT and DIP
10104110-XXXXXX, 10104111-XXXXXX, 10118192-XXXXXX – Standard, SMT
10118193-XXXXXX – Standard, 2 DIP legs
10118193-XXXXXX – Standard, 4 DIP legs

Features and Benefits

• Compact, space saving design
• Convenient recharging and communication
• Supports OTG (On-The Go)
• High temperature thermoplastic housings
• Full EMI/ESD shielding
• Withstand up to 10000 insertion cycles
• Maximum receptacle to PCB retention
• Wide range of mounting and termination features

Product Application Information

These Micro USB 2.0 receptacle connectors are suitable for use in a wide range of applications. Applications include those in the consumer market such as smartphones, camcorders, MP3 players, Bluetooth headphones, smartwatches, tablets, reads and GPS. These Micro USB 2.0 receptacle connectors can also be used in communications and industrial applications such as field PCs and satellite phones

FCI USB

Specifications
Attribute Value
Gender Female
USB Type B
Mounting Type Surface Mount
Termination Method Solder
USB Version 2.0
Body Orientation Right Angle
Current Rating 1.8A
Voltage Rating 100.0 V
Contact Material Copper Alloy
2010 In stock for delivery within 1 working days
Price Each (In a Pack of 5)
kr 6,40
(exc. VAT)
kr 8,00
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
kr 6,40
kr 32,00
25 - 45
kr 5,762
kr 28,81
50 - 95
kr 5,064
kr 25,32
100 - 495
kr 4,566
kr 22,83
500 +
kr 3,848
kr 19,24
*price indicative
