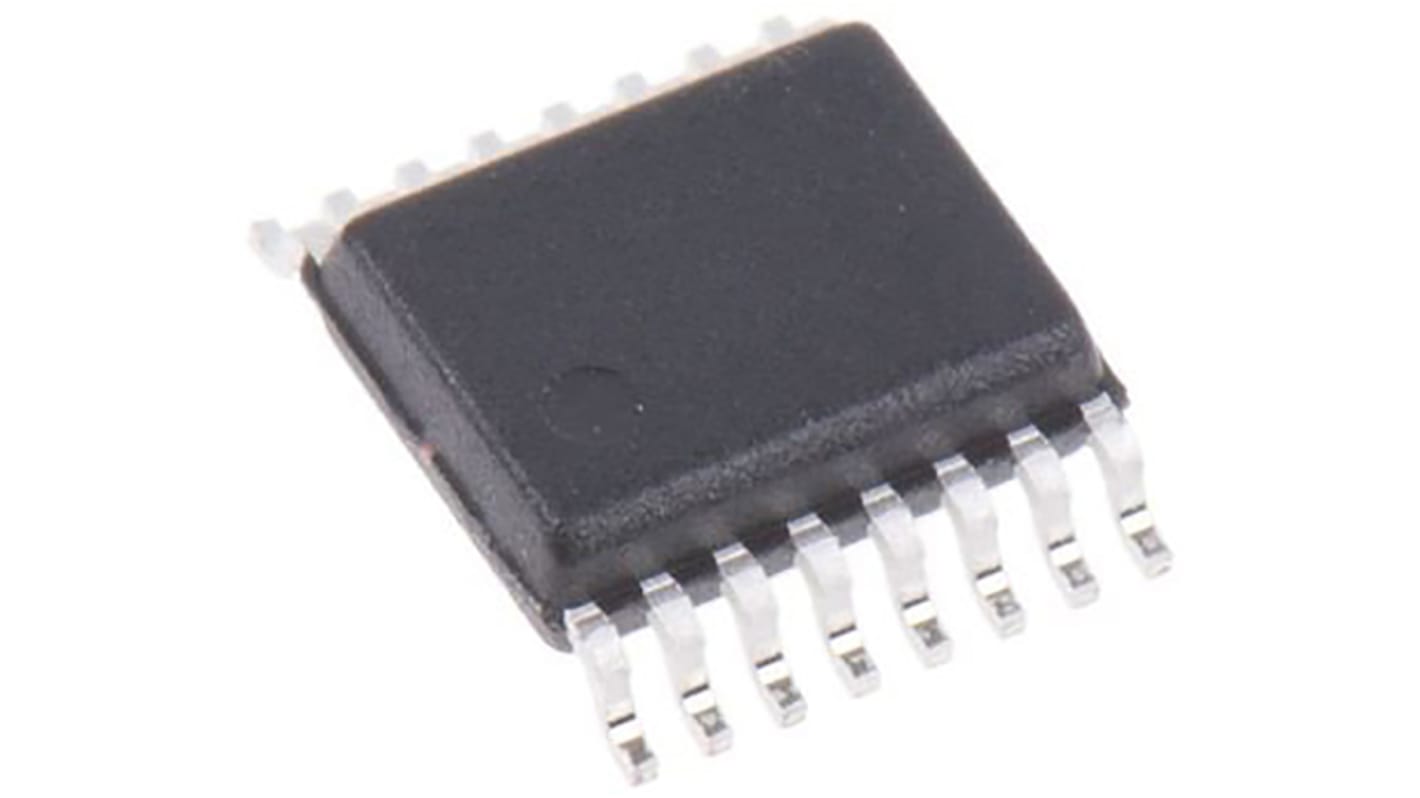

AD8330ARQZ Analog Devices, Controlled Voltage Amplifier 55dB CMRR, Differential R-RO 3 V, 5 V 16-Pin QSOP
- RS Stock No.:
- 412-311
- Mfr. Part No.:
- AD8330ARQZ
- Brand:
- Analog Devices
81 In stock for same day dispatch
Added
Price Each
Kr. 127,43
(exc. VAT)
Kr. 159,29
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 127,43 |
| 10 - 24 | Kr. 115,10 |
| 25 - 49 | Kr. 109,88 |
| 50 - 99 | Kr. 99,21 |
| 100 + | Kr. 90,99 |
- RS Stock No.:
- 412-311
- Mfr. Part No.:
- AD8330ARQZ
- Brand:
- Analog Devices
Technical Reference
Legislation and Compliance
Product Details
Variable Gain Amplifiers (VGA), Analog Devices
Variable Gain Amplifiers (VGA)
Variable-Gain or Voltage-Controlled Amplifiers are electronic differential amplifiers that vary their gain depending on a control voltage. Applications include audio level compression, synthesizers and amplitude modulation.
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Maximum Input Resistance | 1000Ω |
| Number of Channels per Chip | 1 |
| Rail to Rail | Rail to Rail Output |
| Mounting Type | Surface Mount |
| Package Type | QSOP |
| Pin Count | 16 |
| Minimum CMRR | 55dB |
| Output Type | Differential, Rail to Rail |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 5 x 3.91 x 1.65mm |
| Length | 5mm |
| Width | 3.91mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.65mm |
