Legislation and Compliance
RoHS Status: Not Applicable
Product Details

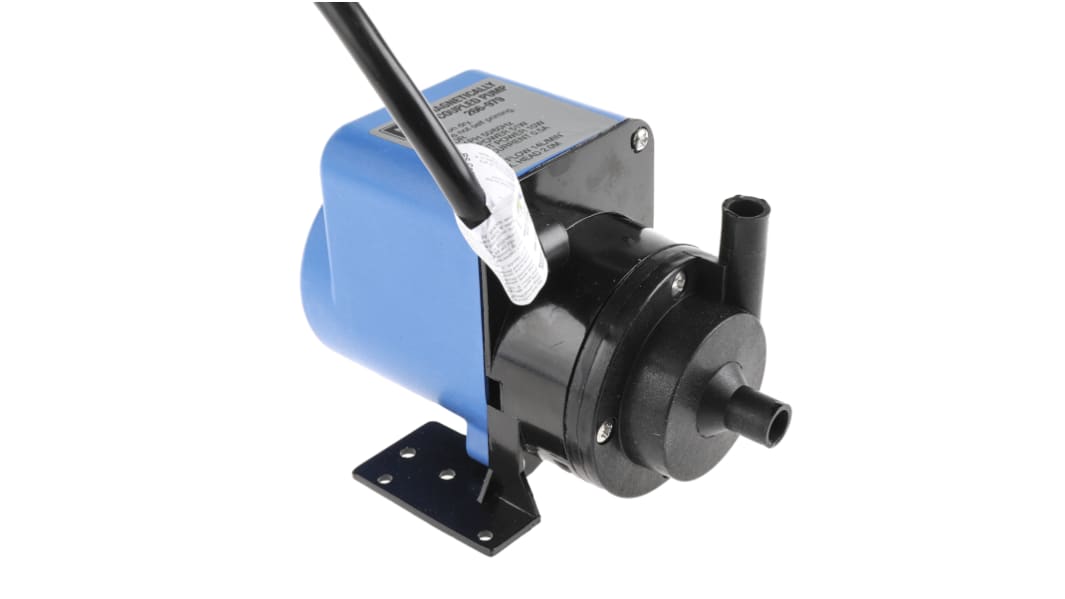

Xylem Flojet Water Pump
The Xylem Flojet magnetic coupling water pump is a highly efficient pump used for continuous duty. It is ideal for water or chemical transfer and re-circulation applications. It has a maximum flow rate of 14L per minute. It is known for trouble-free pumping of acids and alkalis, mainly found in the photographic and printing industries, hygiene or sterilisation processes.
Note:
Not self-priming
Note:
Not self-priming
requires a flooded suction of approximately 300mm
Features and Benefits
The supply voltage is 230V
Maximum working pressure is 1.4bar
Maximum fluid temperature is 80°C
Input power is 51W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from the motor to the fluid
Hose port connection
Zero maintenance
Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers
Fluoro-elastomer rubber static O-ring seal, and ’graph ion’ impeller bearings
The mounting plate offers several fixing options
Maximum working pressure is 1.4bar
Maximum fluid temperature is 80°C
Input power is 51W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from the motor to the fluid
Hose port connection
Zero maintenance
Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers
Fluoro-elastomer rubber static O-ring seal, and ’graph ion’ impeller bearings
The mounting plate offers several fixing options
Applications
Pure or precious liquids, chilled water
X-ray machine
Industrial processing equipment
X-ray machine
Industrial processing equipment
Certifications
IPX5 rated
ANSI/ESD-S20.20:2007
ANSI/ESD-S20.20:2007
Specifications
Attribute | Value |
|---|---|
| Maximum Flow Rate | 14L/min |
| Supply Voltage | 230 V |
| Input Connection | 13 mm Hose |
| Maximum Head | 2.4m |
| Maximum Working Pressure | 1.4 bar |
| Body Material | PP |
| Coupling Type | Magnetic |
| Input Power | 51W |
| Maximum Fluid Temperature | +80°C |
| Input Connection Size | 13mm |
| Output Connection Size | 13mm |
| Wetted Materials | Alumina Ceramic Spindle, PP Encapsulated Magnet, PP Pump Housing, PPS option available, Standard EPDM 'O' Ring, Optional Nitrile or Viton |
| Pump Type | Centrifugal |
| IP Rating | IP22 |
