SIP HG2300MP INVERTER MIG/ARC/TIG

  • RS Stock No. 189-5256
  • Mfr. Part No. 5773
  • Brand SIP
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

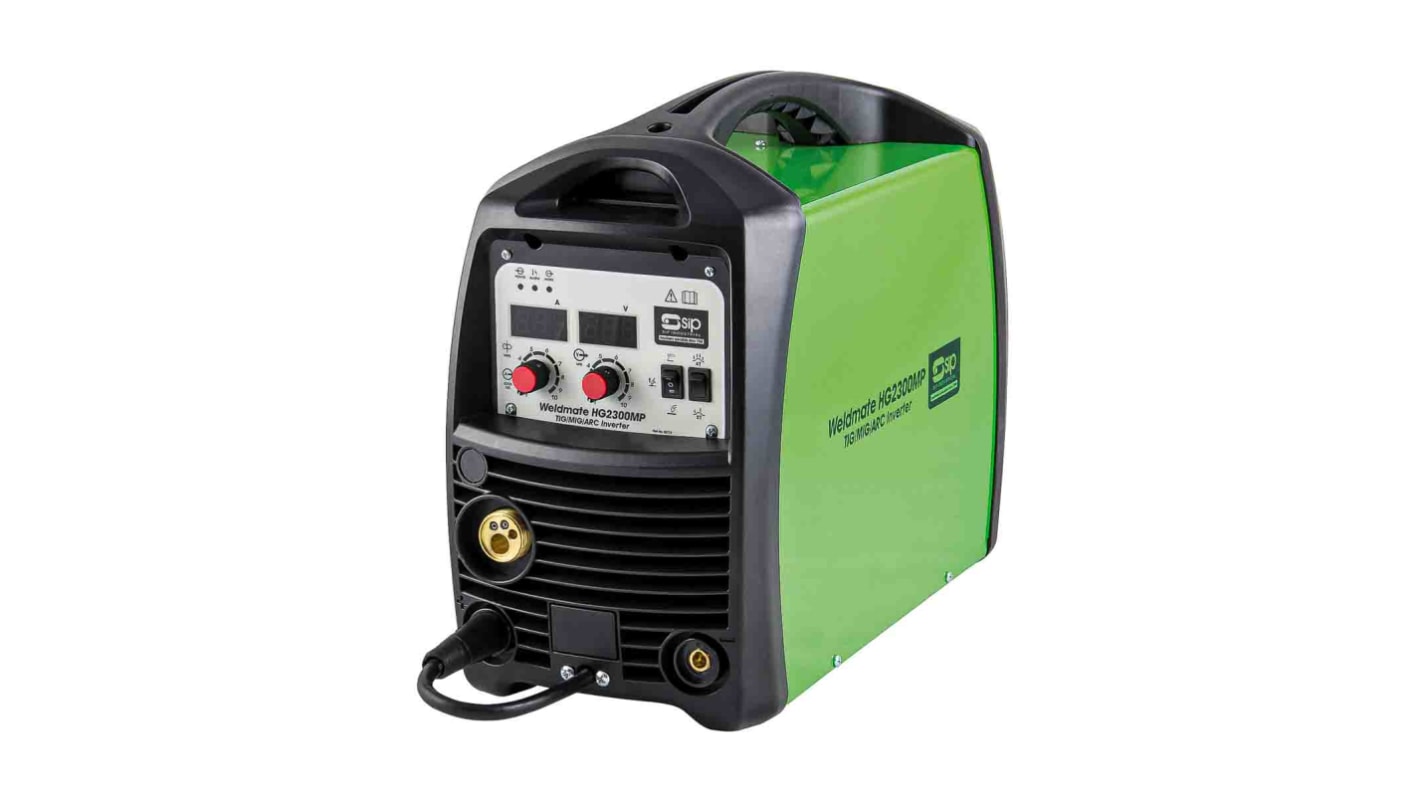

The SIP HG2300MP Inverter Welder can take of most tasks, as it boasts TIG, and ARC functions. Hi-Tech technology and high 50% duty cycle give it powerful performance and reliability.

Features

230v (16amp) input supply
MIG, TIG, and ARC triple function
Infinitely variable weld output settings
30amp - 200amp MIG output current
20amp - 200amp TIG output current
30amp - 170amp ARC output current
High 50% duty cycle on all processes
Reliable performance in gas/gasless
Easy-to-read dual digital displays
0.6 - 1.0mm wire size tolerance
1.6 - 4.0mm max. electrode size
Rugged lightweight construction
Built-in IGBT inverter technology
Extra-low current performance

Specifications
Attribute Value
Supply Voltage 230V
Welder Type Arc Welder
Output Current 20 → 200A
Maximum Electrode Size 4mm
Weight 14.5kg
Output Voltage 26.8V
Minimum Electrode Size 1.6mm
Model Number HG2300MP
Available to back order for despatch 23.07.2020
Price Each
kr 9 782,21
(exc. VAT)
kr 12 227,76
(inc. VAT)
Units
Per unit
1 +
kr 9 782,21
