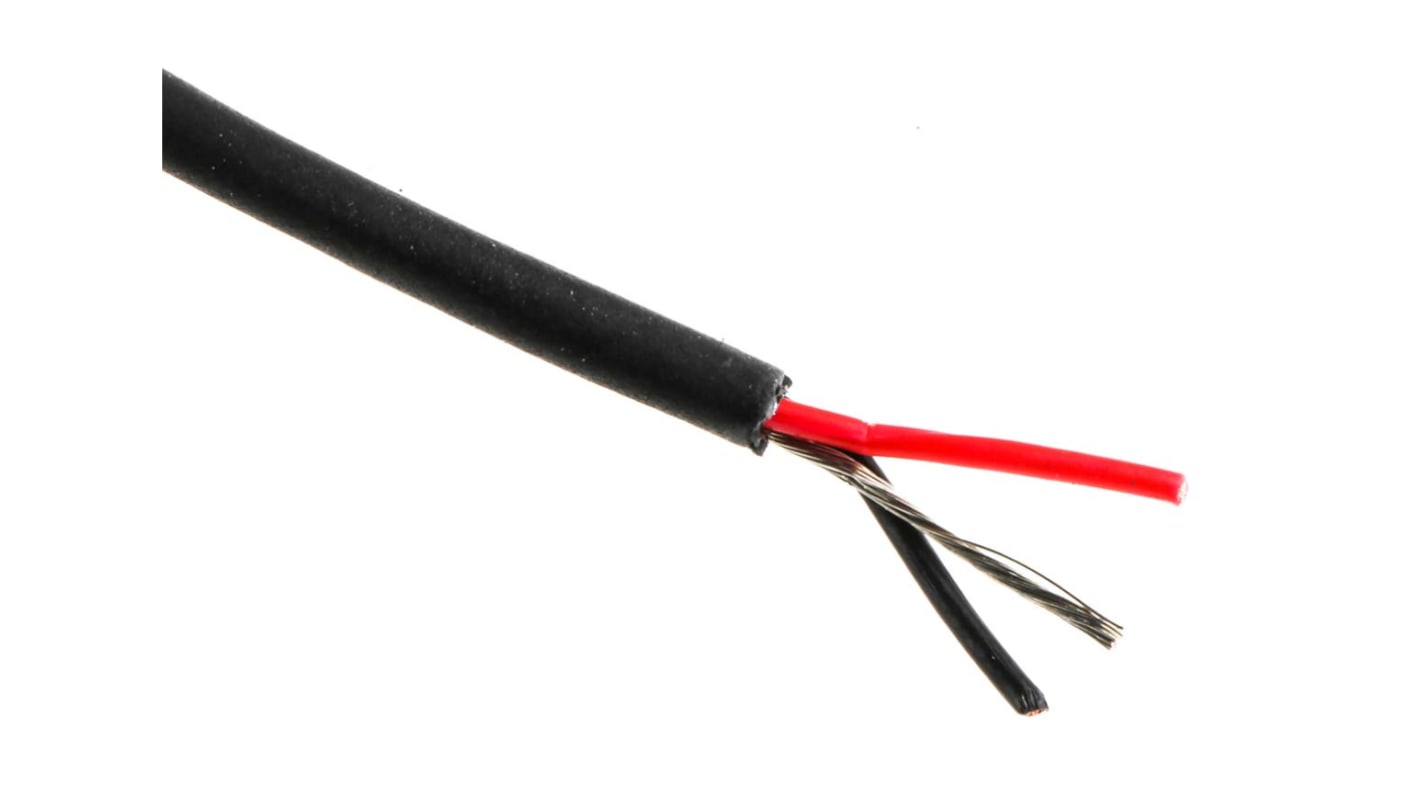

Van Damme Reduced OD Console Cable Series 2 Core, 0.1 mm CSA Screened, 2.7 mm OD, 100 m, Black
- RS Stock No.:
- 453-3778
- Mfr. Part No.:
- 268-000-000
- Brand:
- Van Damme
Subtotal (1 reel of 100 metres)*
Kr. 1 374,39
(exc. VAT)
Kr. 1 717,99
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 1 374,39 | Kr. 13,744 |
*price indicative
- RS Stock No.:
- 453-3778
- Mfr. Part No.:
- 268-000-000
- Brand:
- Van Damme
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Product Type | Audio Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.1 mm | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 2.7 mm | |
| Cable Length | 100m | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Jacket Colour | Black | |
| Standards/Approvals | No | |
| Number of Strands | 28 | |
| Core Strands | 28 | |
| Jacket Material | Polyvinyl Chloride | |
| Voltage | 250 V | |
| Series | Reduced OD Console Cable | |
| Conductor Material | Oxygen-Free Copper | |
| Select all | ||
|---|---|---|
Brand Van Damme | ||
Product Type Audio Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.1 mm | ||
Screened/Unscreened Screened | ||
Outside Diameter 2.7 mm | ||
Cable Length 100m | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Jacket Colour Black | ||
Standards/Approvals No | ||
Number of Strands 28 | ||
Core Strands 28 | ||
Jacket Material Polyvinyl Chloride | ||
Voltage 250 V | ||
Series Reduced OD Console Cable | ||
Conductor Material Oxygen-Free Copper | ||
- COO (Country of Origin):
- IT
Reduced OD Console Cable
Reduced overall diameter foil screened single pair installation cable for very high density fixed wiring applications - patch panels, outside broadcast vehicles, mixing consoles, internal equipment wiring
Foil screen and outer jacket bonded for easy stripping and quick preparation time
Linear crystal oxygen free copper conductors for excellent signal integrity
