Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Backplane Connector Type	High Speed
	Product Type	Backplane Connector
	Number of Contacts	56
	Current	1A
	Orientation	Right Angle, Right Angle
	Number of Columns	8
	Number of Rows	7
	Connector Gender	Male
	Housing Material	LCP, Liquid Crystal Polymer
	Pitch	1.9mm
	Mount Type	Board, Board
	Contact Material	Phosphor Bronze, Phosphor Bronze
	Contact Plating	Gold Plated, Gold Plated Tin, Tin
	Termination Type	Solder
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	105°C
	Contact Gender	Male
	Standards/Approvals	No
	Series	MULTIGIG RT 2-R

	Select all
	Brand TE Connectivity
	Backplane Connector Type High Speed
	Product Type Backplane Connector
	Number of Contacts 56
	Current 1A
	Orientation Right Angle, Right Angle
	Number of Columns 8
	Number of Rows 7
	Connector Gender Male
	Housing Material LCP, Liquid Crystal Polymer
	Pitch 1.9mm
	Mount Type Board, Board
	Contact Material Phosphor Bronze, Phosphor Bronze
	Contact Plating Gold Plated, Gold Plated Tin, Tin
	Termination Type Solder
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 105°C
	Contact Gender Male
	Standards/Approvals No
	Series MULTIGIG RT 2-R

Datasheet

Non Compliant with RoHS

COO (Country of Origin):: US

TE’s MULTIGIG RT 2-R ruggedized, light weight, high speed board-to-board interconnect features the modularity and flexibility of the MULTIGIG RT 2 connector, with a new quad-redundant contact structure designed for high vibration levels.

Quad-redundant contact system supports high levels of shock/vibration

Supports Ethernet, Fibre Channel, InfiniBand applications, PCIe and Serial RapidIO high speed protocols

Modular, lightweight connector system

Robust “pinless” Interface

Differential, single-ended and power

Ruggedized guide hardware available

Supports 0.8 inch card slot pitches

Can be combined with high power modules (VITA 62), RF modules (VITA 67) and Optical modules (VITA 66)

Applications

Ground Defense

Missile Defense

Electronic Systems / C4ISR

Space

Commercial and Military Aerospace

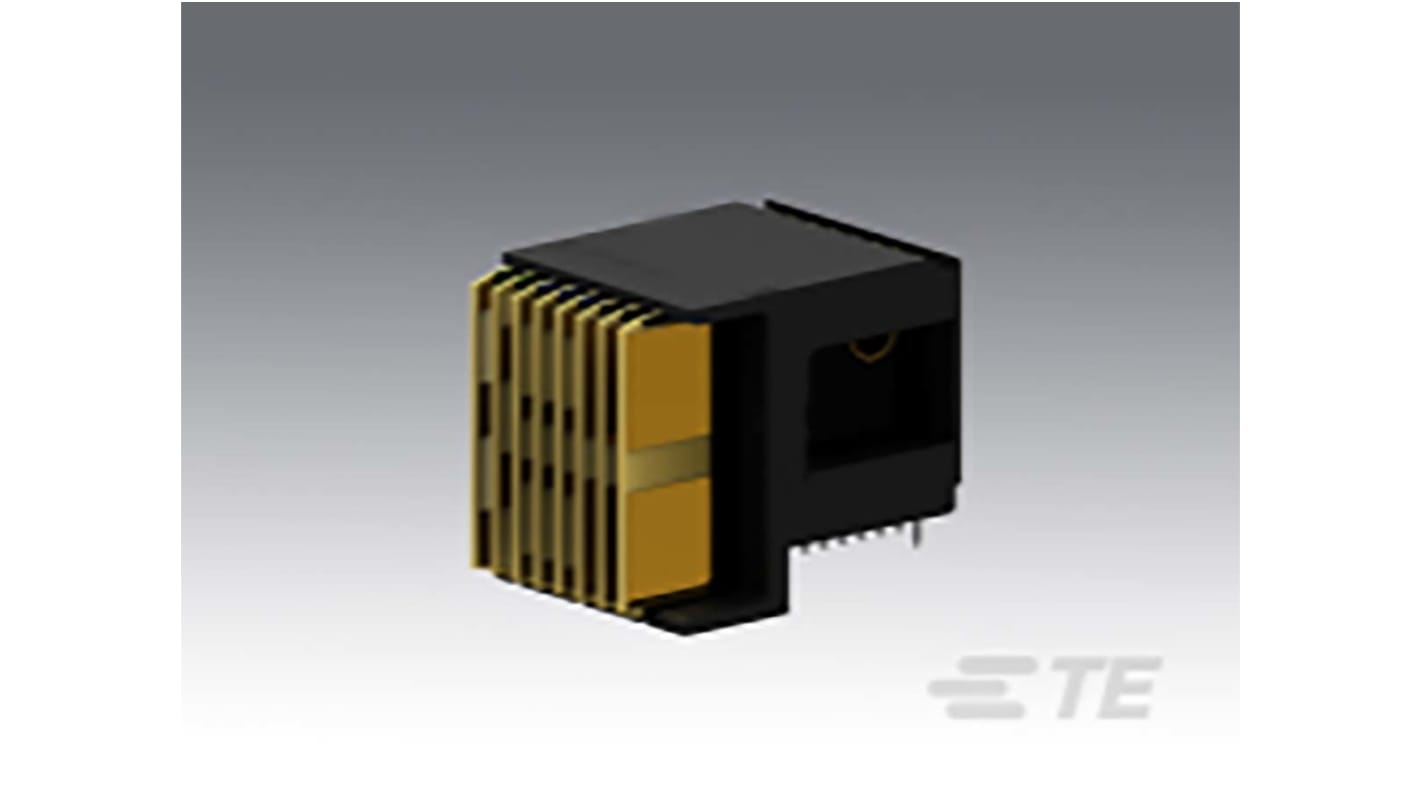

TE Connectivity, MULTIGIG RT 2-R 1.9 mm Pitch High Speed Backplane Connector, Right Angle, Right Angle Male, 8 Column, 7
