Subtotal (1 unit)*
Kr. 16,36
(exc. VAT)
Kr. 20,45
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 405 unit(s) ready to ship
- Plus 69 unit(s) ready to ship from another location
- Plus 187 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 16,36 |
*price indicative
- RS Stock No.:
- 185-4643
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Compatible Battery Size | AA | |
| Product Type | Battery Holder | |
| Number of Cells | 4 | |
| Sub Type | Battery Holder | |
| Mount Type | Lead Wire | |
| Body Material | Polypropylene | |
| Termination Type | Coil Spring | |
| Length | 63.1mm | |
| Height | 16mm | |
| Width | 58mm | |
| Diameter | 14.5mm | |
| Series | BH | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Compatible Battery Size AA | ||
Product Type Battery Holder | ||
Number of Cells 4 | ||
Sub Type Battery Holder | ||
Mount Type Lead Wire | ||
Body Material Polypropylene | ||
Termination Type Coil Spring | ||
Length 63.1mm | ||
Height 16mm | ||
Width 58mm | ||
Diameter 14.5mm | ||
Series BH | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

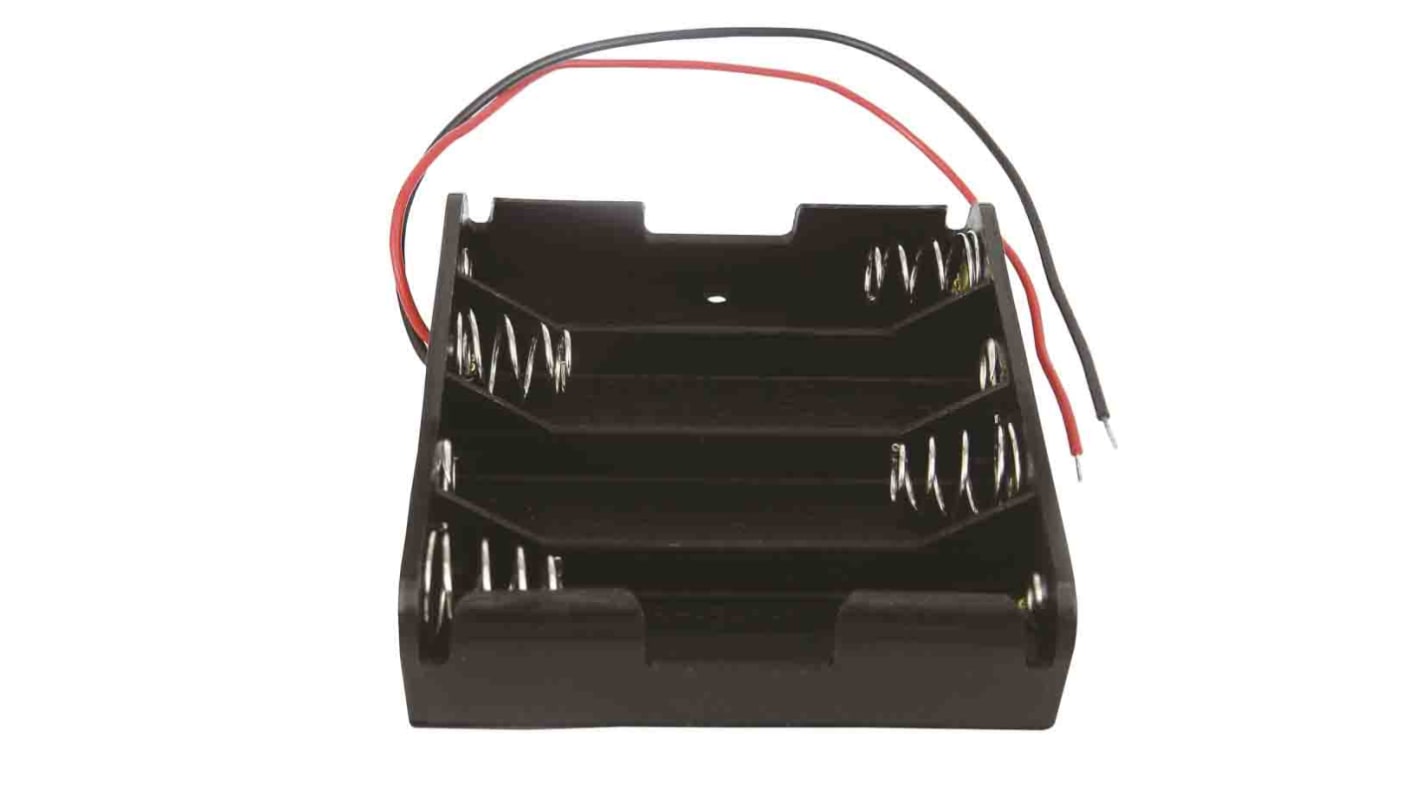

RS PRO Battery Holder
The RS PRO battery holder is suitable for AA battery size with lead wire mount of 150mm and it has a dimension of 58 x 63.1 x 16mm.
Features and Benefits
• PP resin holder
• 65C spring wire of 0.7mm
• Material PP resin
• Wire size: 26AWG
• Number of cells: 4
Applications
• To contain cells when inserted into battery compartments
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
