RS PRO CR2032 Battery Holder

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

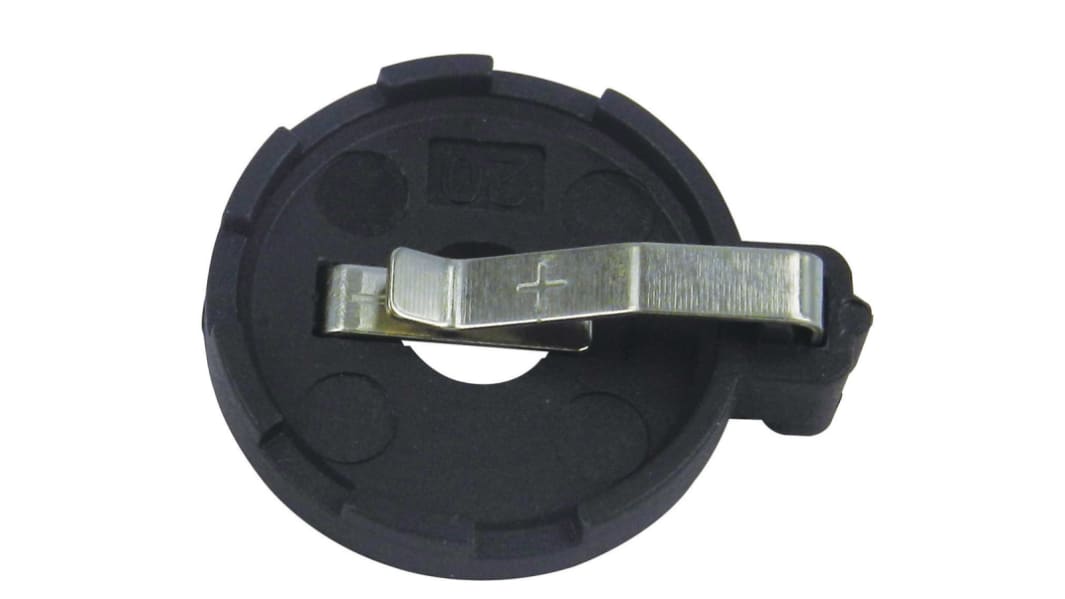

RS PRO Battery Holder

The RS PRO battery holder is suitable for a CR2032 battery and it has dimensions of 27.8mm x 22.8mm. It has a voltage rating of 500V (AC/DC) and a current rating of 3A.

Features and Benefits

• Material: PBT
• Operating temperature ranges between -40°C and +105°C
• Contact: Electrode: Phosphor bronze 0.6mm thick tin plated over nickel
• Insulation resistance: 500megaohms
• Contact resistance: 12milliohms maximum
• Humidity: 40°C

Certifications

• UL 94V0 approved

Specifications
Attribute Value
For Battery Size CR2032
Type Battery Holder
Dimensions 27.8 x 22.8mm
Body Material PBT
111 In stock for delivery within 1 working days
Price Each
kr 8,06
(exc. VAT)
kr 10,08
(inc. VAT)
Units
Per unit
1 +
kr 8,06
