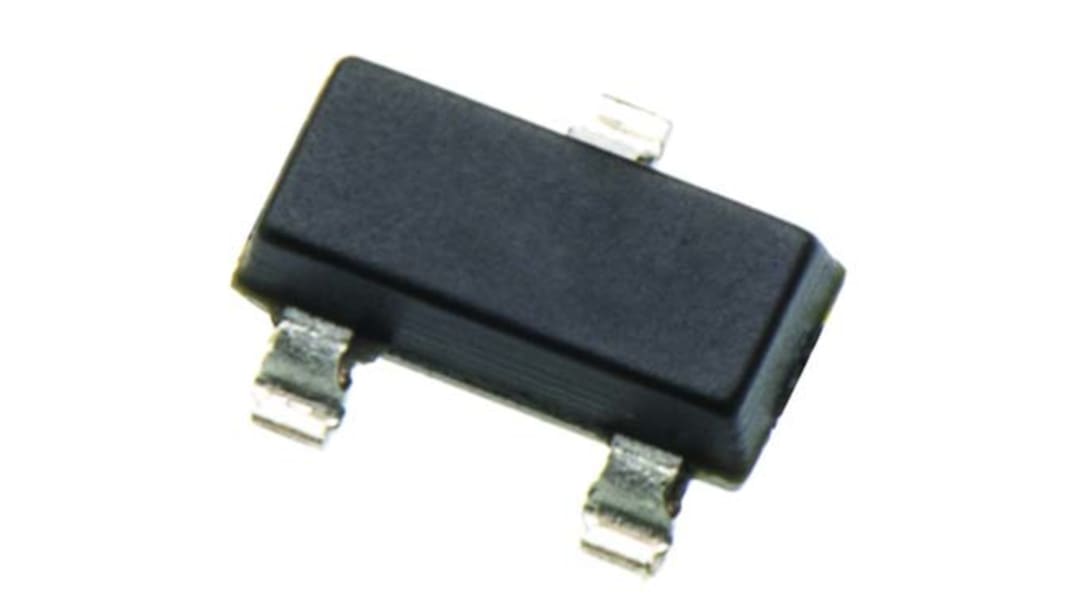

onsemi BC846BLT3G Transistor, 100 mA NPN, 65 V, 3-Pin SOT-23
- RS Stock No.:
- 773-7611
- Mfr. Part No.:
- BC846BLT3G
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
Kr. 41,05
(exc. VAT)
Kr. 51,30
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 2 400 unit(s) ready to ship
- Plus 9 500 unit(s) shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | Kr. 0,821 | Kr. 41,05 |
| 500 - 950 | Kr. 0,709 | Kr. 35,45 |
| 1000 - 2450 | Kr. 0,613 | Kr. 30,65 |
| 2500 - 4950 | Kr. 0,538 | Kr. 26,90 |
| 5000 + | Kr. 0,492 | Kr. 24,60 |
*price indicative
- RS Stock No.:
- 773-7611
- Mfr. Part No.:
- BC846BLT3G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 100mA | |
| Maximum Collector Emitter Voltage Vceo | 65V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 80V | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Minimum DC Current Gain hFE | 200 | |
| Transistor Polarity | NPN | |
| Maximum Power Dissipation Pd | 300mW | |
| Maximum Transition Frequency ft | 100MHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Height | 1.11mm | |
| Standards/Approvals | No | |
| Length | 3.04mm | |
| Width | 1.11mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 100mA | ||
Maximum Collector Emitter Voltage Vceo 65V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 80V | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Minimum DC Current Gain hFE 200 | ||
Transistor Polarity NPN | ||
Maximum Power Dissipation Pd 300mW | ||
Maximum Transition Frequency ft 100MHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Height 1.11mm | ||
Standards/Approvals No | ||
Length 3.04mm | ||
Width 1.11mm | ||
Automotive Standard AEC-Q101 | ||
RoHS Status: Exempted
The ON Semiconductor BC846BLT1G is an NPN bipolar transistor from the BC846BL series. It is designed for linear and switching applications. The BC846BLT1G comes in an SOT-23 SMD package which is designed for low power applications.
• MSL: 1
• ESD Rating: >400V (human body), >400V (machine)
• SOT-23 package
Versions Available:
103-2931 - reel of 3000
544-9393 - pack of 20
Applications:
• ESD Protection
• Polarity Reversal Protection
• Data Line Protection
• Inductive Load Protection
• Steering Logic
Small Signal NPN Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
