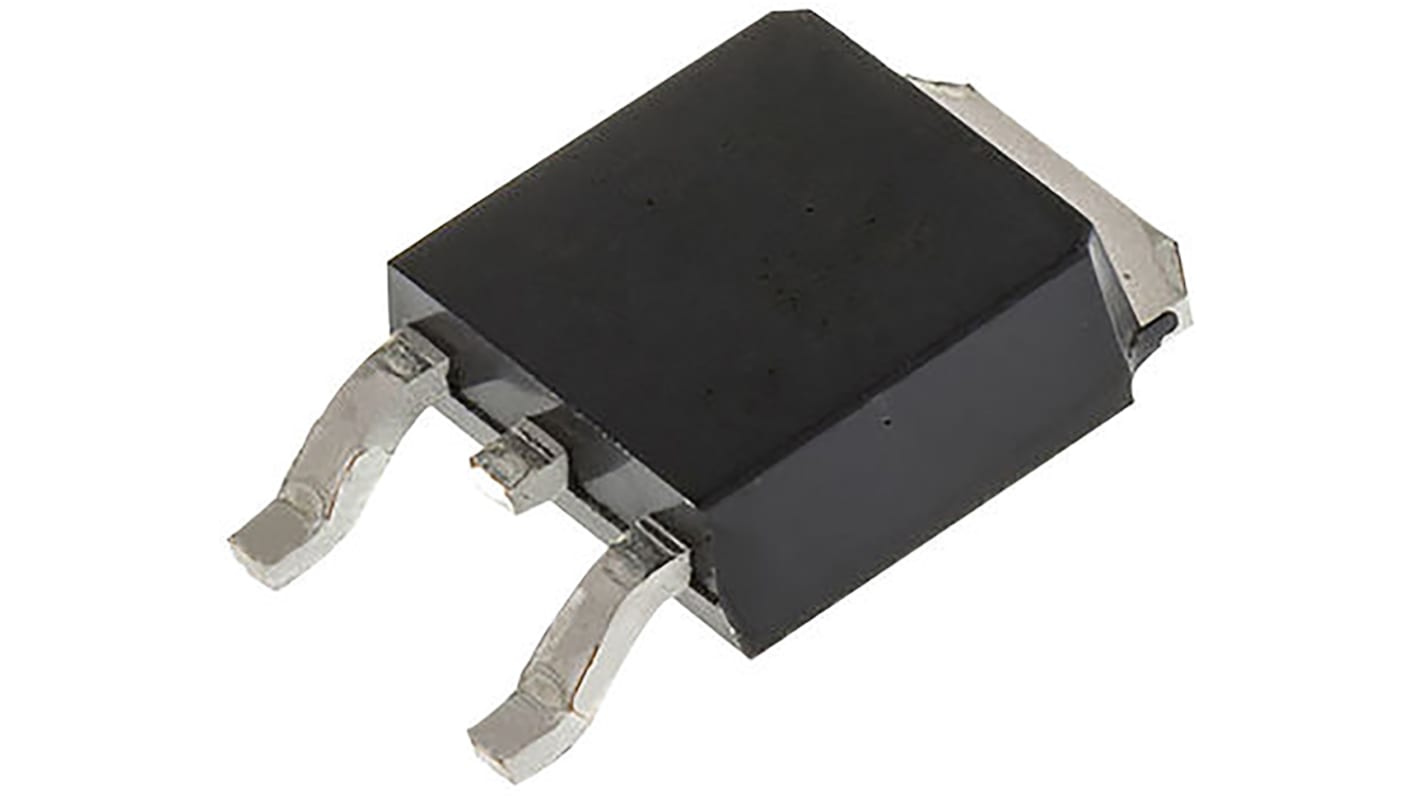

onsemi KSC5502DTM Transistor, 2 A NPN, 600 V, 3-Pin DPAK
- RS Stock No.:
- 806-4513
- Mfr. Part No.:
- KSC5502DTM
- Brand:
- onsemi
Get a bulk buy discount
Add 100 more to save 13%
View bulk pricing optionsSubtotal (1 pack of 10 units)*
Kr. 79,74
(exc. VAT)
Kr. 99,68
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 10 - 90 | Kr. 7,974 | Kr. 79,74 | - |
| 100 - 240 | Kr. 6,875 | Kr. 68,75 | 13% |
| 250 - 490 | Kr. 5,96 | Kr. 59,60 | 25% |
| 500 - 990 | Kr. 5,228 | Kr. 52,28 | 34% |
| 1000 + | Kr. 4,782 | Kr. 47,82 | 40% |
*price indicative
- RS Stock No.:
- 806-4513
- Mfr. Part No.:
- KSC5502DTM
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 2A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 1.2kV | |
| Maximum Emitter Base Voltage VEBO | 12V | |
| Maximum Transition Frequency ft | 1MHz | |
| Transistor Polarity | NPN | |
| Maximum Power Dissipation Pd | 50W | |
| Minimum DC Current Gain hFE | 8 | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Series | KSC5502D | |
| Width | 4.83mm | |
| Standards/Approvals | No | |
| Length | 10.67mm | |
| Height | 10.41mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 2A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 1.2kV | ||
Maximum Emitter Base Voltage VEBO 12V | ||
Maximum Transition Frequency ft 1MHz | ||
Transistor Polarity NPN | ||
Maximum Power Dissipation Pd 50W | ||
Minimum DC Current Gain hFE 8 | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Series KSC5502D | ||
Width 4.83mm | ||
Standards/Approvals No | ||
Length 10.67mm | ||
Height 10.41mm | ||
Automotive Standard No | ||
High Voltage NPN Transistors, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
