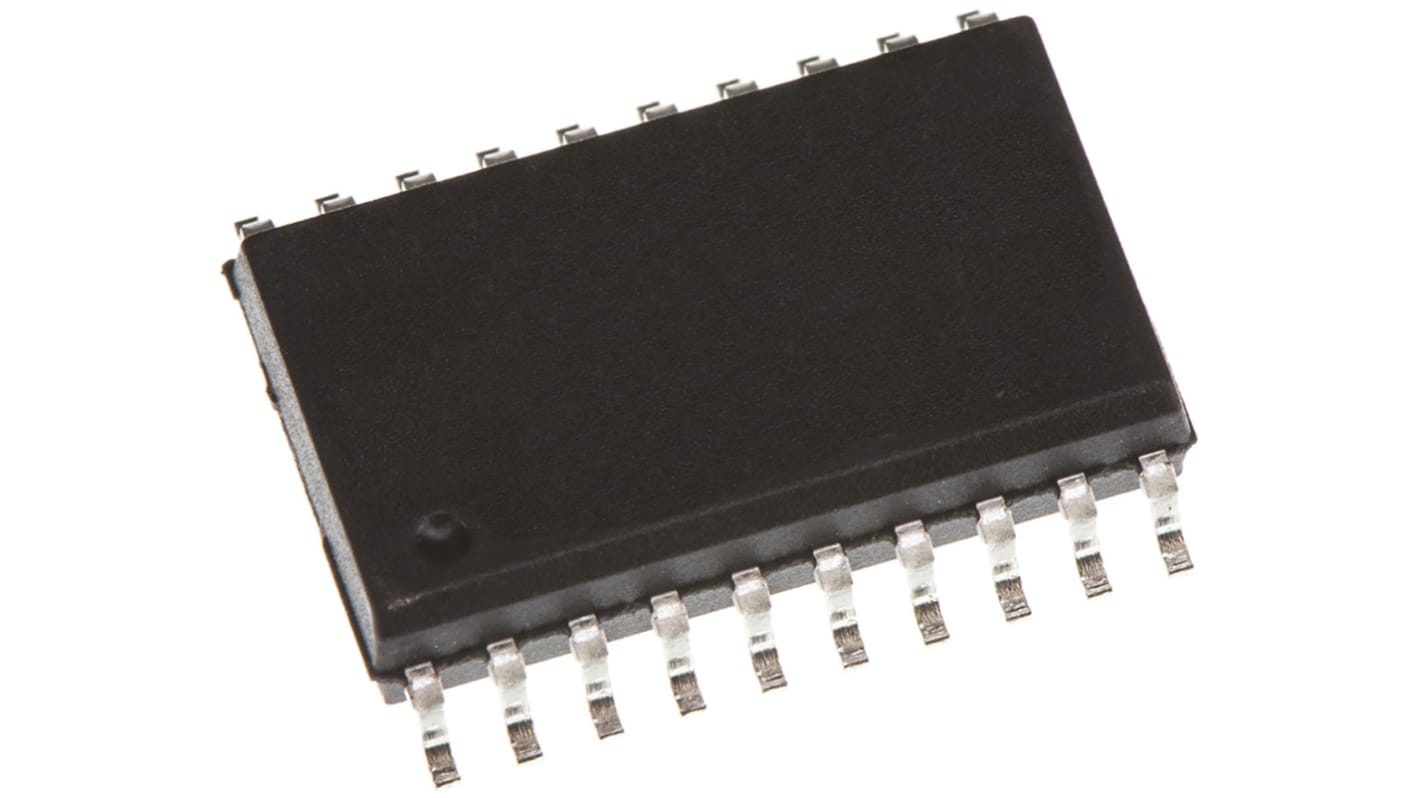

Texas Instruments SN75160BDW Line Transceiver, 8-Bit Inverting Open Collector, 20-Pin SOIC
- RS Stock No.:
- 660-9192
- Mfr. Part No.:
- SN75160BDW
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
Kr. 170,23
(exc. VAT)
Kr. 212,79
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Last RS stock
- Plus 10 unit(s) shipping from 01 June 2026
- Plus 5 unit(s) shipping from 01 June 2026
- Final 65 unit(s) shipping from 08 June 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | Kr. 34,046 | Kr. 170,23 |
| 10 - 15 | Kr. 27,502 | Kr. 137,51 |
| 20 - 45 | Kr. 26,632 | Kr. 133,16 |
| 50 - 95 | Kr. 25,854 | Kr. 129,27 |
| 100 + | Kr. 22,514 | Kr. 112,57 |
*price indicative
- RS Stock No.:
- 660-9192
- Mfr. Part No.:
- SN75160BDW
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Line Transceiver | |
| Logic Family | Transceiver | |
| Logic Function | Transceiver | |
| Number of Channels | 8 | |
| Polarity | Inverting | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 4.75V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 5.25V | |
| Input Level | CMOS | |
| Minimum Operating Temperature | 0°C | |
| Maximum Propagation Delay Time @ CL | 20ns | |
| Output Level | Open Collector | |
| Maximum High Level Output Current | -5.2mA | |
| Maximum Operating Temperature | 70°C | |
| Series | SN75160B | |
| Maximum Low Level Output Current | 48mA | |
| Length | 12.8mm | |
| Height | 2.35mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Output Type | Open Collector | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Line Transceiver | ||
Logic Family Transceiver | ||
Logic Function Transceiver | ||
Number of Channels 8 | ||
Polarity Inverting | ||
Mount Type Surface | ||
Package Type SOIC | ||
Minimum Supply Voltage 4.75V | ||
Pin Count 20 | ||
Maximum Supply Voltage 5.25V | ||
Input Level CMOS | ||
Minimum Operating Temperature 0°C | ||
Maximum Propagation Delay Time @ CL 20ns | ||
Output Level Open Collector | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Operating Temperature 70°C | ||
Series SN75160B | ||
Maximum Low Level Output Current 48mA | ||
Length 12.8mm | ||
Height 2.35mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Output Type Open Collector | ||
Other Line Drivers, Texas Instruments
