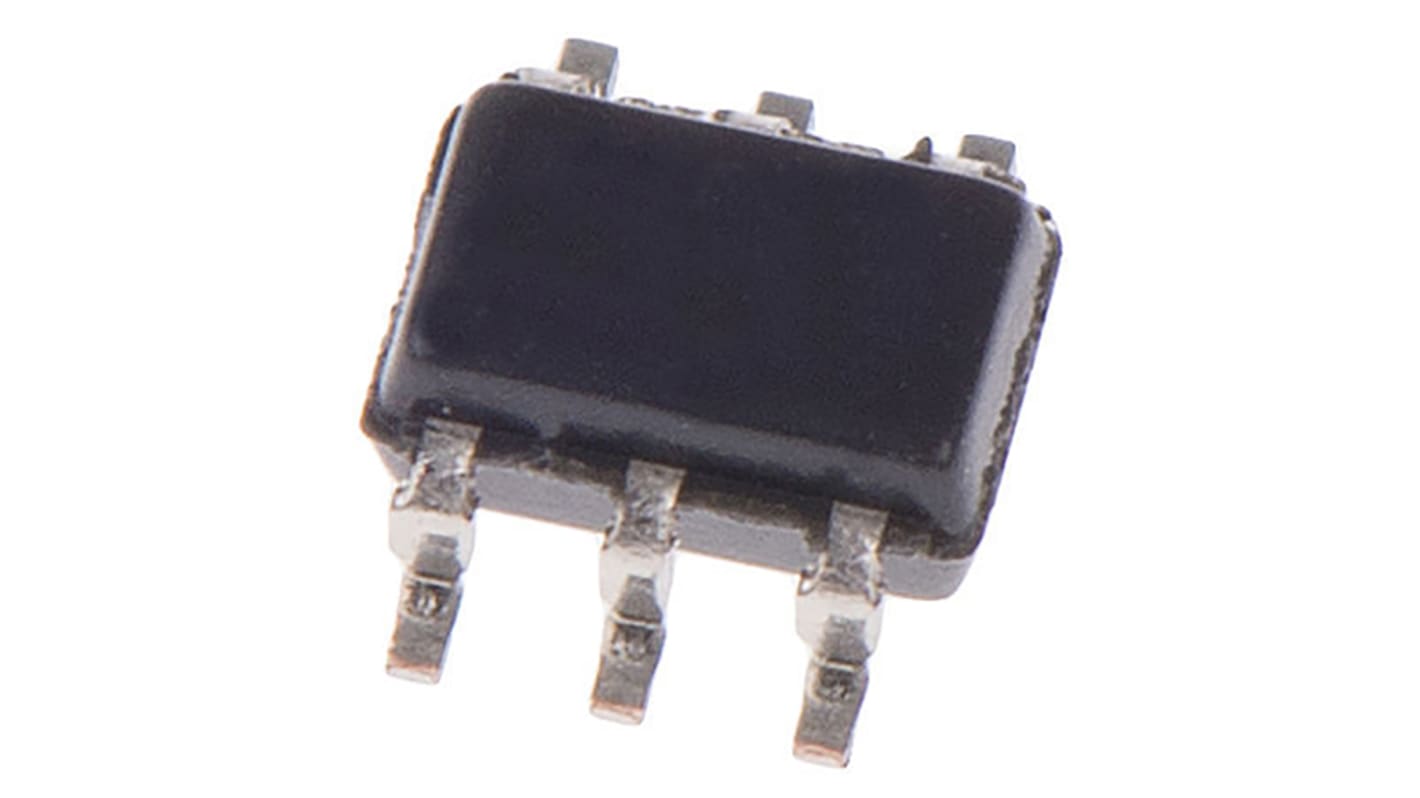

Texas Instruments Bus Transceiver Non-Inverting LVTTL, 6-Pin SC-70
- RS Stock No.:
- 922-2855
- Mfr. Part No.:
- SN74LVC1T45DCKT
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 250 units)*
Kr. 1 788,00
(exc. VAT)
Kr. 2 235,00
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 - 250 | Kr. 7,152 | Kr. 1 788,00 |
| 500 - 1000 | Kr. 7,064 | Kr. 1 766,00 |
| 1250 + | Kr. 6,977 | Kr. 1 744,25 |
*price indicative
- RS Stock No.:
- 922-2855
- Mfr. Part No.:
- SN74LVC1T45DCKT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Bus Transceiver | |
| Logic Family | LVC | |
| Logic Function | Bus Transceiver | |
| Number of Channels | 1 | |
| Polarity | Non-Inverting | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Minimum Supply Voltage | 1.65V | |
| Pin Count | 6 | |
| Input Level | LVTTL | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Output Level | LVTTL | |
| Maximum Propagation Delay Time @ CL | 12.2ns | |
| Maximum Operating Temperature | 85°C | |
| Maximum High Level Output Current | -32mA | |
| Length | 2mm | |
| Series | SN74LVC1T45 | |
| Height | 0.9mm | |
| Maximum Low Level Output Current | 32mA | |
| Standards/Approvals | No | |
| Output Type | 3 State | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Bus Transceiver | ||
Logic Family LVC | ||
Logic Function Bus Transceiver | ||
Number of Channels 1 | ||
Polarity Non-Inverting | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Minimum Supply Voltage 1.65V | ||
Pin Count 6 | ||
Input Level LVTTL | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Output Level LVTTL | ||
Maximum Propagation Delay Time @ CL 12.2ns | ||
Maximum Operating Temperature 85°C | ||
Maximum High Level Output Current -32mA | ||
Length 2mm | ||
Series SN74LVC1T45 | ||
Height 0.9mm | ||
Maximum Low Level Output Current 32mA | ||
Standards/Approvals No | ||
Output Type 3 State | ||
Automotive Standard No | ||
74LVC1T Family, Texas Instruments
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
