Eurotherm 3 Graphical Graphic Recorder Resistance, Temperature, Current, Millivolt, Voltage

View all Chart Recorders

Subtotal (1 unit)*

Kr.15 411 84

(exc. VAT)

Kr.19 264 80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12. mars 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 15 411,84

*price indicative

RS Stock No.:
243-9227
Mfr. Part No.:
NANODAC/VH/C/X/LRR
Brand:
Eurotherm
Find similar products by selecting one or more attributes.
Select all

Brand

Eurotherm

Chart Type

Graphical

Product Type

Graphic Recorder

Number of Channels

3

Measurement Parameters

Resistance, Temperature, Current, Millivolt, Voltage

Standards/Approvals

EU, CE, BS EN 61326, UL

Width

90 mm

Weight

0.44kg

Height

96mm

Resolution

0.05 °C

Length

96mm

COO (Country of Origin):
PL

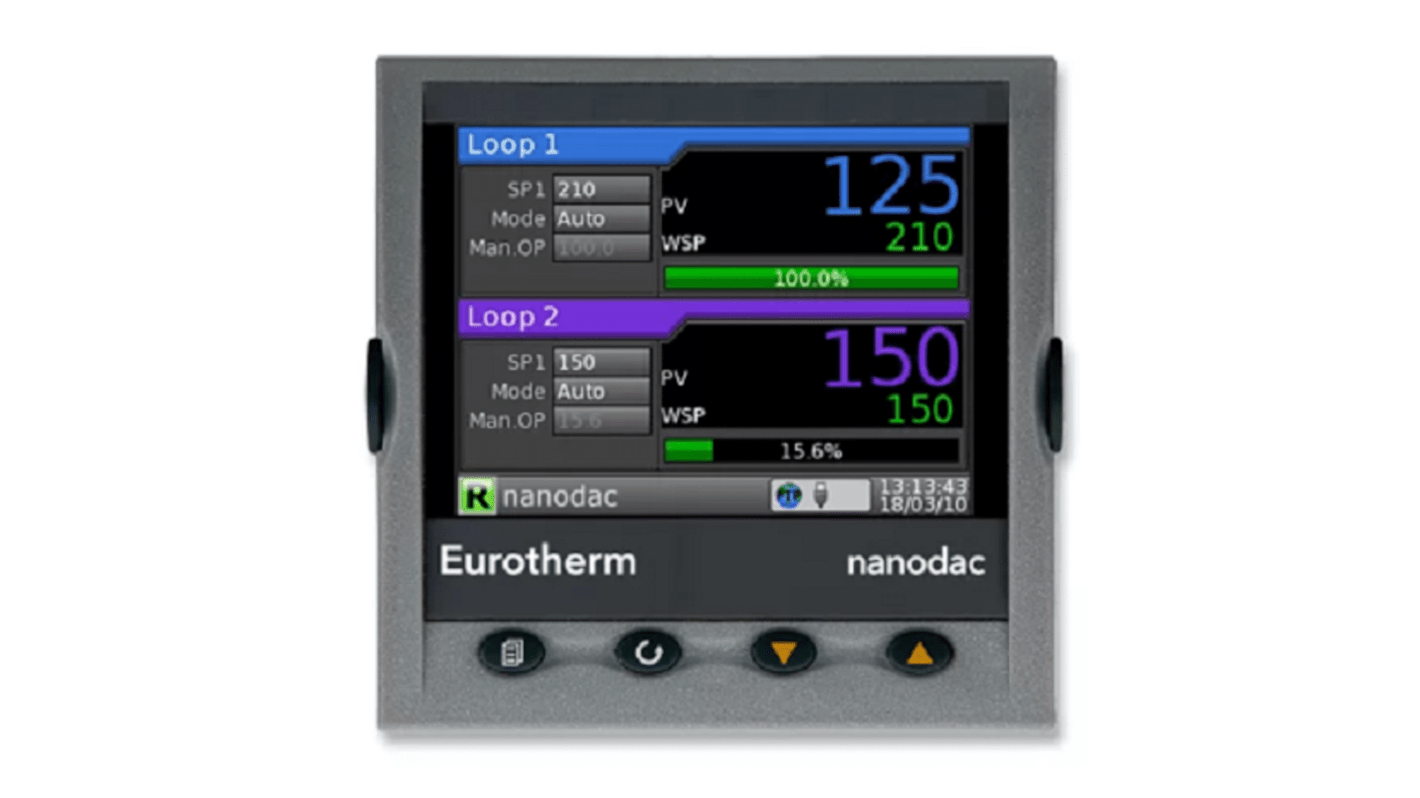

The Eurotherm nanodac recorder/controller is a graphical video graphic chart recorder with PID control that utilises the advanced Eurotherm PID algorithm providing high performance and reliability to your process. It is used to measure the current, millivolt, voltage, resistance and temperature. It has 100-230V ac ±15% at 48-62Hz with 2 control loops along with 1 Logic, 2 Relay output options. It comes with 3.5in TFT display that offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, bar graphs, numeric, alarm panel, alarm status and control loops.

Tamper resistant data recording methodology trusted by auditors

Four navigation push buttons (Page, Scroll, Lower and Raise)

USB removable data storage facility

High accuracy universal inputs

50 MB data storage

8Hz (125ms) sample data recording rate

3.5” colour TFT (320 pixels wide x 240 pixels high) integrated display

Multi-language support

Compact design
