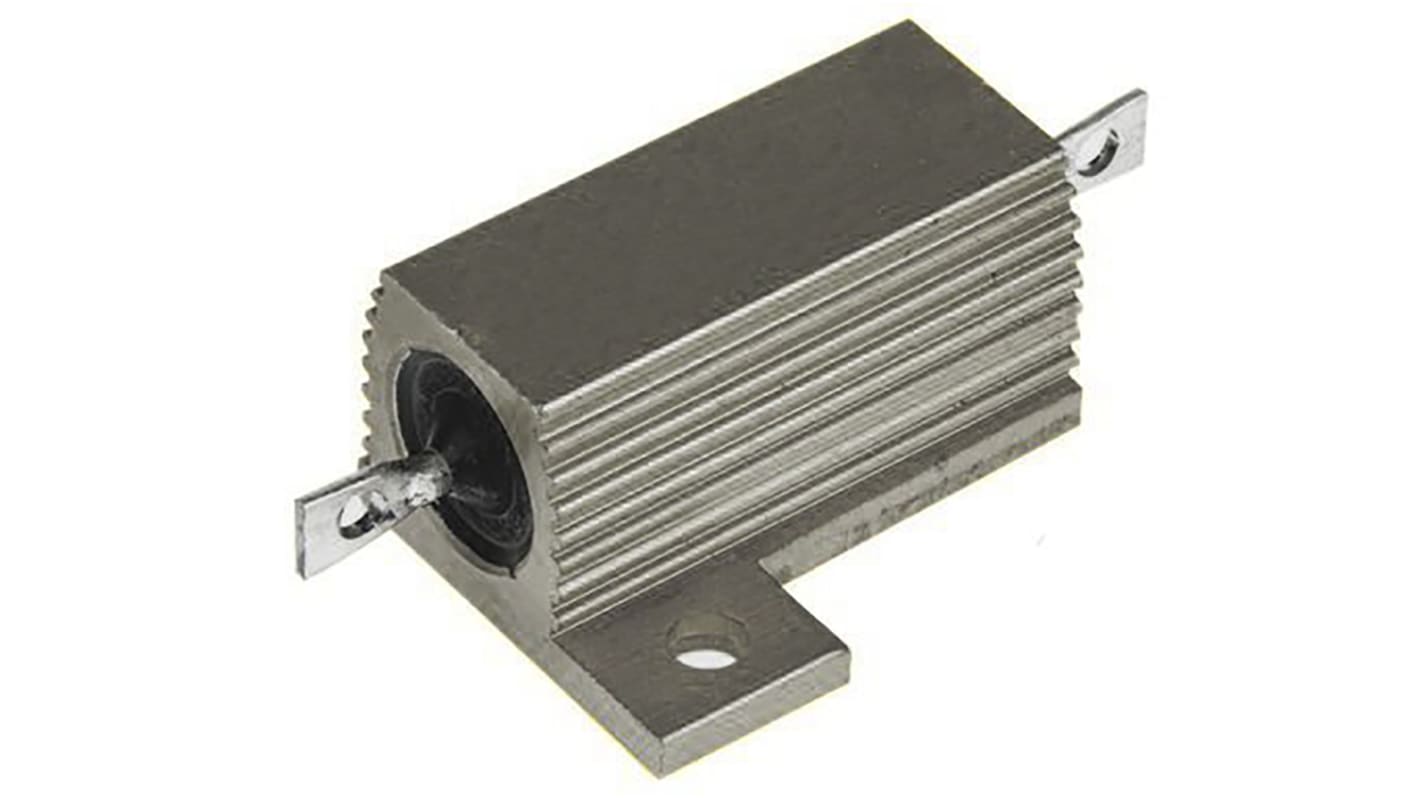

RS PRO, 270 mΩ 25 W Aluminium Chassis Mount Resistor ±5 %

RS Stock No.:: 175-4094
Brand:: RS PRO

RS PRO, 270 mΩ 25 W Aluminium Chassis Mount Resistor ±5 %

Subtotal (1 pack of 5 units)*

Kr. 131,07

(exc. VAT)

Kr. 163,84

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Being discontinued

Final 190 unit(s), ready to ship

Units	Per unit	Per Pack*
5 +	Kr. 26,214	Kr. 131,07

*price indicative

RS Stock No.:: 175-4094
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Chassis Mount Resistor
	Resistance	270mΩ
	Power Rating	25W
	Series	RS25
	Package/Case	Aluminium
	Tolerance	±5 %
	Technology	Aluminium
	Automotive Standard	No
	Overall Length	27.3mm
	Maximum Operating Temperature	200°C
	Overall Width	28mm
	Overall Height	14.8mm
	Standards/Approvals	IEC 115, MIL 18546, RoHS
	Overall Diameter	14.2mm

	Select all
	Brand RS PRO
	Product Type Chassis Mount Resistor
	Resistance 270mΩ
	Power Rating 25W
	Series RS25
	Package/Case Aluminium
	Tolerance ±5 %
	Technology Aluminium
	Automotive Standard No
	Overall Length 27.3mm
	Maximum Operating Temperature 200°C
	Overall Width 28mm
	Overall Height 14.8mm
	Standards/Approvals IEC 115, MIL 18546, RoHS
	Overall Diameter 14.2mm

Designed for direct heatsink mounting with thermal compound to achieve maximum performance.

High Power to volume

Wound to maximise High Pulse Capability

Values from R005 to 100K
