Vishay RH0502R000FE02, 48.5 kΩ 50 W Wirewound Panel Mount Fixed Resistor ±1 %

View all Chassis Mount Resistors
Bulk discount available

Subtotal (1 unit)*

Kr. 151,47

(exc. VAT)

Kr. 189,34

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 69 unit(s) shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4Kr. 151,47
5 - 9Kr. 122,75
10 - 24Kr. 116,57
25 - 49Kr. 105,93
50 +Kr. 98,61

*price indicative

RS Stock No.:
845-9920
Mfr. Part No.:
RH0502R000FE02
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Panel Mount Fixed Resistor

Resistance

48.5kΩ

Power Rating

50W

Series

RH

Tolerance

±1 %

Temperature Coefficient

+50 ppm/°C, 50 ppm/°C

Technology

Wirewound

Automotive Standard

No

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

250°C

Standards/Approvals

ANSI J-STD-002, MIL-PRF-18546

COO (Country of Origin):
MX

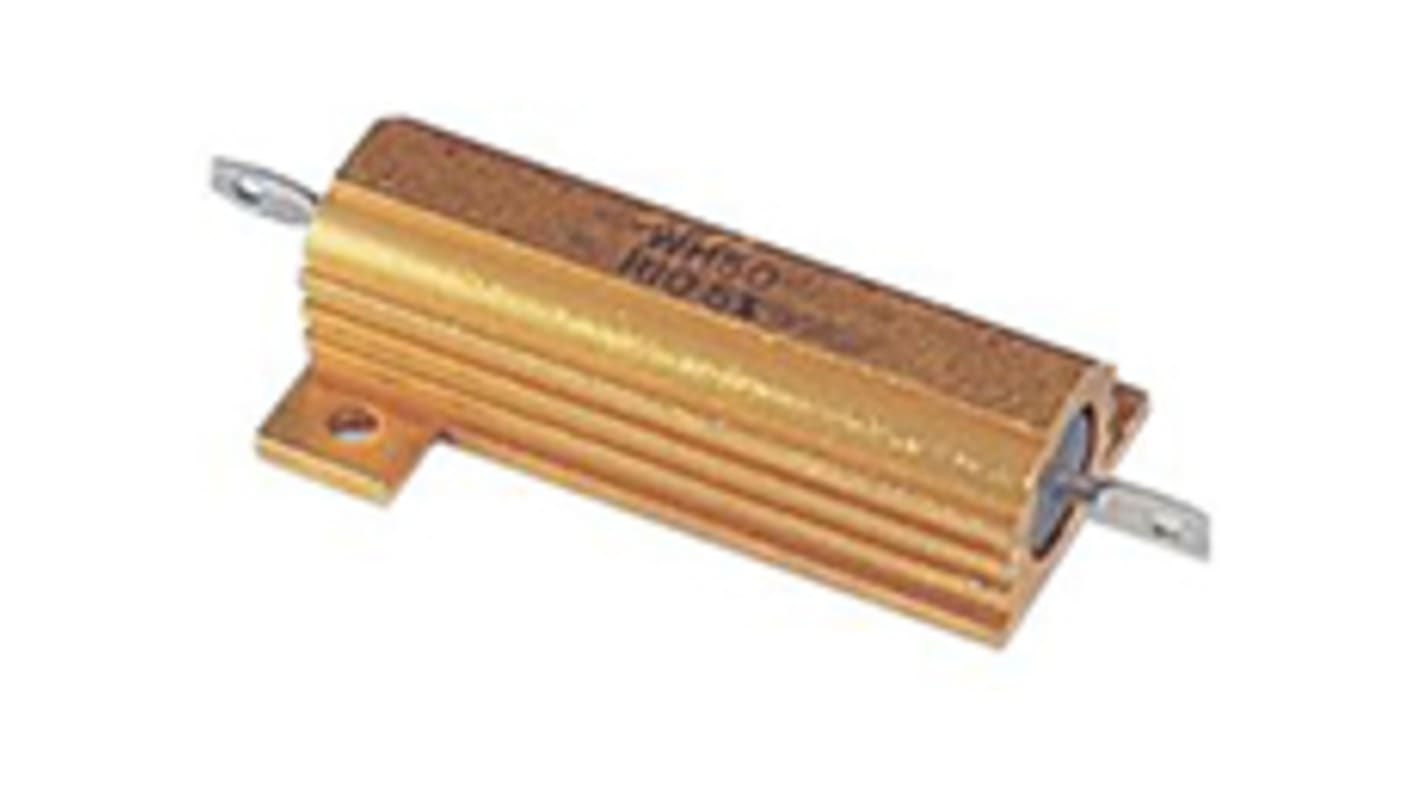

50 Watt RH050 Series ±1%


The Vishay RH050 series wirewound chassis mount resistor has a complete welded and moulded construction for total environmental protection in aluminium housing. These resistors mount directly onto a chassis to utilise heat-sink effect. This range of wirewound resistors offers high stability at conventional power ratings and flat marking surface for easy identification.

Features and Benefits


• Mounts on chassis to utilize heat-sink effect

• Moulded construction for total environmental protection

• High Stability <0.05% Year

• Resistance Tolerance 1%

Note

Power rating is based on resistor mounted on a 300x300x1.5mm aluminium panel; unmounted rating is 20W @ 25°C. See manufacturer's data for more information regarding power ratings.
