Select all	Attribute	Value
	Brand	RS PRO
	Primary Voltage Rating	230 → 400V ac
	Secondary Voltage Rating	2 x 115V ac
	Power Rating	800VA
	Number of Outputs	2
	Mounting Type	DIN Rail, Panel
	Primary Winding Resistance	1.1/2.5Ω
	Length	150mm
	Efficiency	91%
	Width	128mm
	Depth	152mm
	Dimensions	150 x 128 x 152mm
	Fixing Hole Diameter	7.0 x 15mm
	Weight	10kg
	Minimum Operating Frequency	50Hz
	Standards Met	IEC 61558-2-4
	Maximum Operating Frequency	60Hz
	Minimum Temperature	-30°C
	Maximum Temperature	(Ambient) 70°C

	Select all
	Brand RS PRO
	Primary Voltage Rating 230 → 400V ac
	Secondary Voltage Rating 2 x 115V ac
	Power Rating 800VA
	Number of Outputs 2
	Mounting Type DIN Rail, Panel
	Primary Winding Resistance 1.1/2.5Ω
	Length 150mm
	Efficiency 91%
	Width 128mm
	Depth 152mm
	Dimensions 150 x 128 x 152mm
	Fixing Hole Diameter 7.0 x 15mm
	Weight 10kg
	Minimum Operating Frequency 50Hz
	Standards Met IEC 61558-2-4
	Maximum Operating Frequency 60Hz
	Minimum Temperature -30°C
	Maximum Temperature (Ambient) 70°C

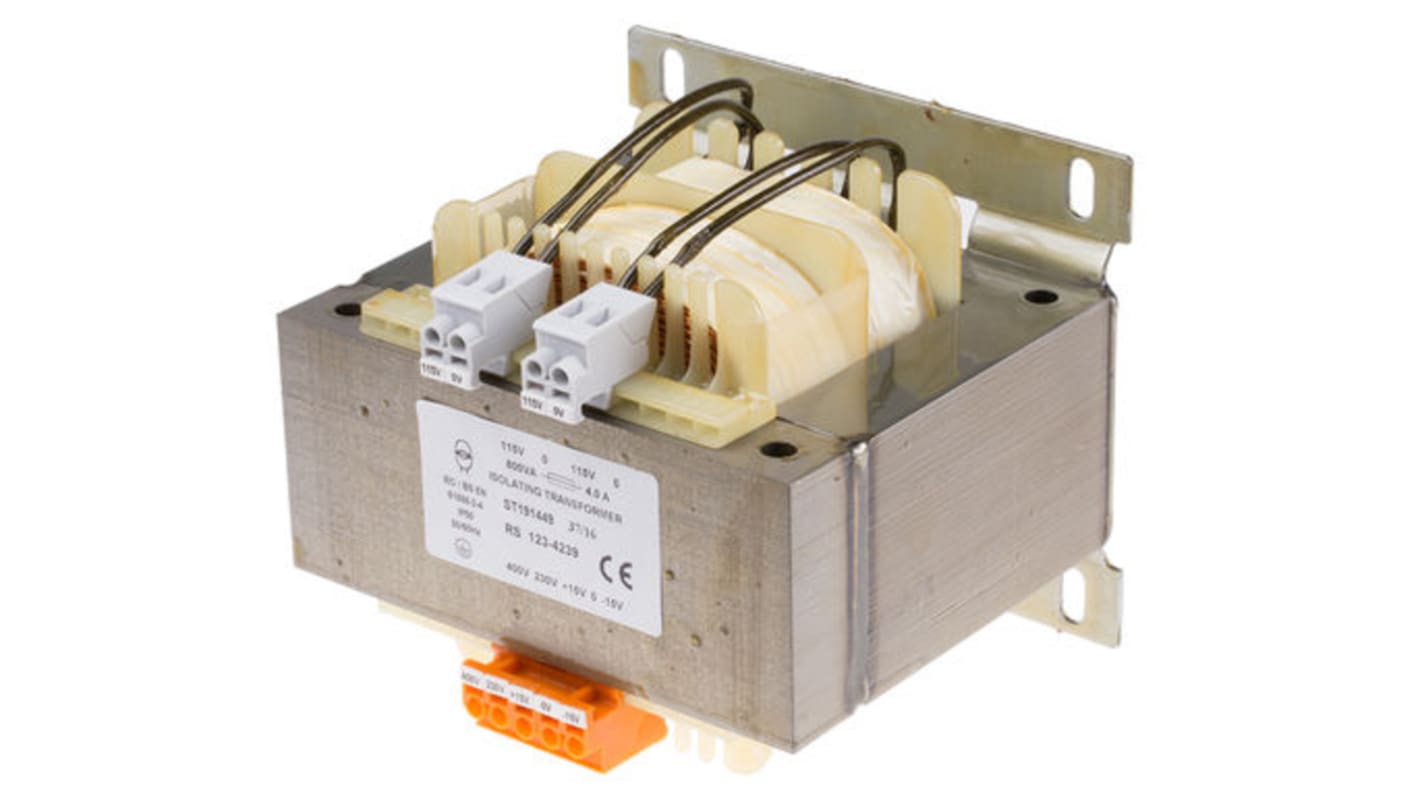

RS PRO 800VA 2 Output Chassis Mounting Transformer, 2 x 115V ac, IEC 61558-2-4

FREE delivery for orders over kr 500,00

RS PRO 2 x 115V Single Phase DIN Rail Mount Isolation Transformer (800VA)
