Siretta SMA, TNC Series, 5 m, RF LLC200A Coaxial Coaxial Cable 50 Ω, Black, Terminated

View all Coaxial Cable

Subtotal (1 unit)*

Kr. 563,59

(exc. VAT)

Kr. 704,49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
  • Plus 54 unit(s) shipping from 17 June 2026
  • Plus 108 unit(s) shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 563,59

*price indicative

RS Stock No.:
124-8840
Mfr. Part No.:
ASMZG500A058L13
Brand:
Siretta
Find similar products by selecting one or more attributes.
Select all

Brand

Siretta

Product Type

Coaxial Cable

Terminated/Unterminated

Terminated

Coaxial Type

RF LLC200A

Outside Diameter

4.95mm

Characteristic Impedance

50Ω

Minimum Operating Temperature

-40°C

Conductor Type

Solid

Attenuation

0.2 dB/m

Cable Length

5m

Maximum Operating Temperature

85°C

Jacket Colour

Black

Standards/Approvals

RoHS

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

Conductor Material

Copper

Series

SMA, TNC

Jacket Material

Polyethylene Foam

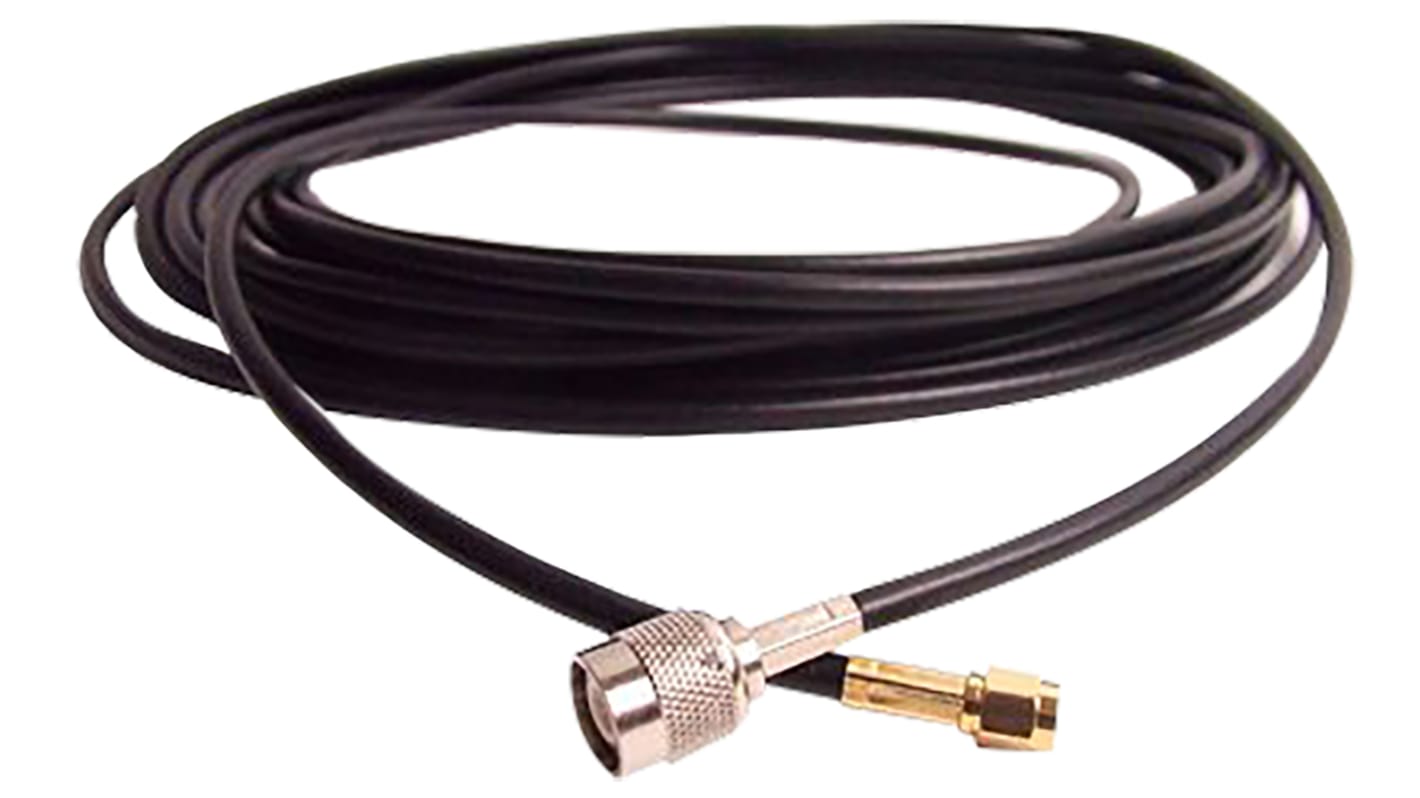

SMA Male to TNC Male LLC200A Coaxial Cables, Siretta


Available in two cable lengths with an SMA Male connector and a TNC Male connector:

ASMZG500A058L13 - 5 m cable (124-8840)

ASMZG1000A058L13 - 10 m cable (124-8841)

ASMZG1500A058L13 - 15 m cable (140-8024)

ASMZG2000A058L13 - 20 m cable (140-8026)

Cable Specifications

Impedance: 50 Ω

Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64

Cable: LLC200A

Operating Frequencies: Up to 6 GHz

Dimensions

Core: 0.94 mm copper wire

Insulator: 2.79 mm GAS-FPE

Shield: tinned copper braid

Jacket: 4.95 mm PVC
