Huber+Suhner, 100 m, RG142 Coaxial Coaxial Cable 50 Ω, Brown, Unterminated

This coaxial cable is designed for RF signal transmission in demanding industrial and laboratory environments. It provides a 50Ω transmission path with an FEP outer sheath suitable for elevated temperature operation, and is supplied on a 100 m reel in an unterminated form for user-specific connectorisation.

• 50Ω characteristic impedance ensures matched RF performance for test equipment
• FEP jacket rated to 200°C enables high-temperature routing
• Solid tin‑plated copper conductor offers consistent conductivity and ease of termination
• 2.5 kVrms voltage rating supports high-voltage RF testing applications
• IEC 60332-3 flame behaviour reduces risk during cable fires
• Brown 4.95mm outside diameter permits Compact installations

• Suitable for RF test and measurement set-ups requiring low-loss transmission
• Ideal for high-temperature sensor and probe cabling in ovens
• Used for laboratory high-voltage RF experiments and calibration
• Suitable for interconnection in automation equipment needing Compact RF feedlines
• Can be used for prototype assemblies where custom terminations are applied

It arrives unterminated so users can fit connectors appropriate to their equipment and test requirements.

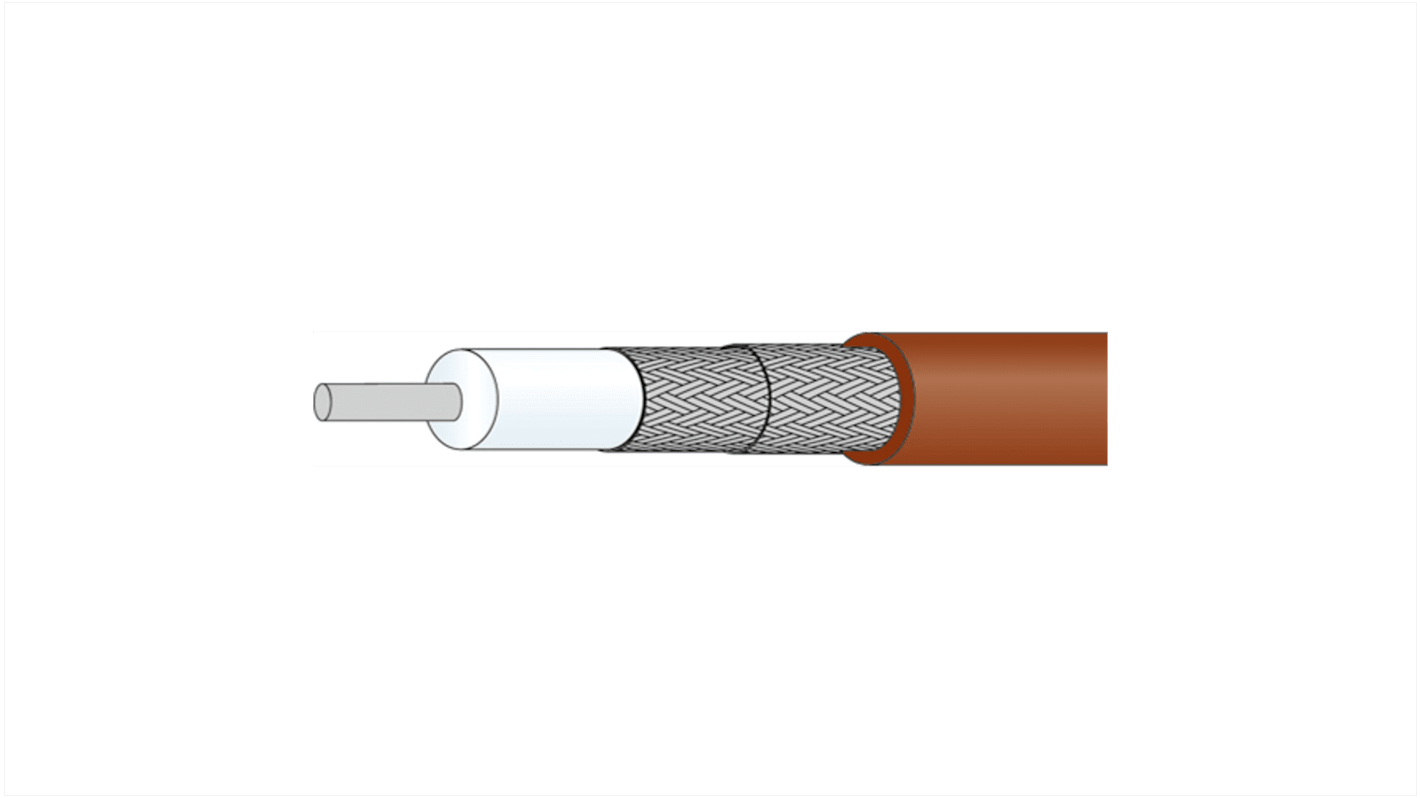

The conductor is a single solid strand of tin‑plated copper, providing stable electrical characteristics and straightforward soldering.

It is specified for continuous operation down to -65°C and up to 200°C when used within its material limits.

The cable meets RoHS requirements restricting certain hazardous substances in its construction.

Its nominal outside diameter of 4.95mm allows routing through tight cable channels and conduits.
