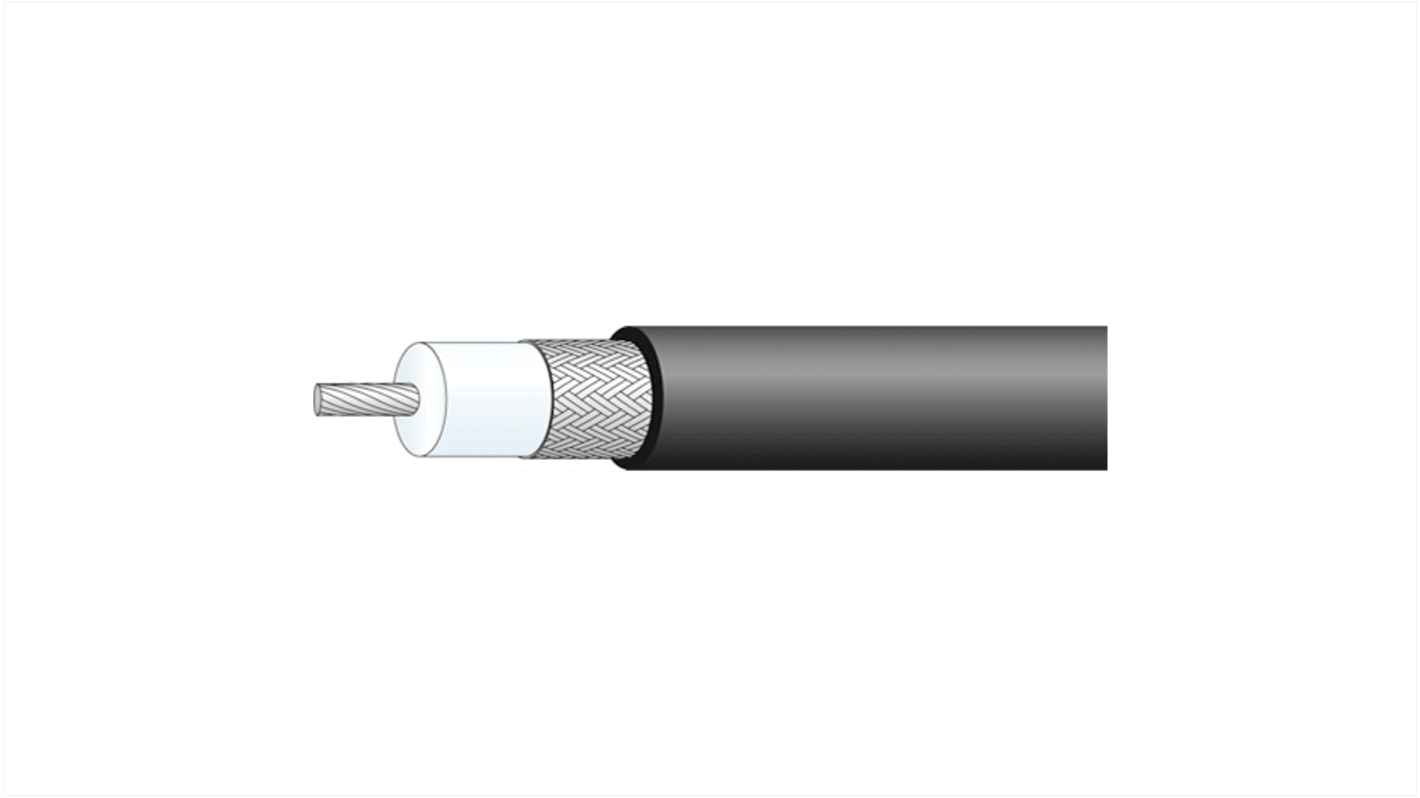

Huber+Suhner RG174U Series, RG174 Coaxial Coaxial Cable 50 Ω, Jet Black, Unterminated

View all Coaxial Cable
Get a bulk buy discount

Add 500 more to save Kr. 2 234,50

View bulk pricing options

Subtotal (1 reel of 100 metres)*

Kr. 4 468,50

(exc. VAT)

Kr. 5 585,60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 100 unit(s) shipping from 14 December 2026
  • Plus 300 unit(s) shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Reel*
Saving
100 - 400Kr. 44,685Kr. 4 468,50-
500 +Kr. 40,216Kr. 4 021,60Kr. 2 234,50

*price indicative

RS Stock No.:
240-8089
Distrelec Article No.:
301-23-479
Mfr. Part No.:
RG_174_/U
Brand:
Huber+Suhner
Find similar products by selecting one or more attributes.
Select all

Brand

Huber+Suhner

Terminated/Unterminated

Unterminated

Product Type

Coaxial Cable

Coaxial Type

RG174

Voltage

1.5kVrms

Outside Diameter

2.55mm

Characteristic Impedance

50Ω

Conductor Type

Stranded

Attenuation

0.922 dB

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Standards/Approvals

ISO 45001, ISO 14001, MIL refer ENce: M17/196 00001, ISO/TS 22163 IRIS, IATF 16949, ISO 9001, AS/ EN 9100

Jacket Colour

Jet Black

Conductor Material

Steel, Copper Plated

Series

RG174U

Jacket Material

Polyvinyl Chloride

COO (Country of Origin):
CH

Huber+Suhner Coaxial Cable, 50Ω Characteristic Impedance, 2.55mm Outside Diameter - RG_174_/U


This coaxial cable provides a Compact solution for RF signal transmission in industrial and telecom environments. It is designed for general-purpose interconnection where a 50Ω characteristic impedance is required, offering a balance of electrical performance and flexible routing for antenna and instrumentation links.

Features and Benefits:


• 50Ω impedance for consistent RF matching and reduced reflections
• Attenuation 0.922dB for low-loss signal transfer over short runs
• Stranded steel copper-plated conductor for enhanced flexibility
• PVC jet black jacket for abrasion resistance and discrete routing
• Rated to 1.5kVrms enabling elevated voltage handling in installations
• Operating range -25°C to 85°C for varied environmental deployment

Applications


• Suitable for RF antenna connections in telecom installations
• Ideal for signal leads between test instruments and DUTs
• Used with sensor modules in automation and control systems
• Can be used for interconnects in avionics and defence hardware

What conductor construction supports repeated flexing?


The conductor is stranded with a steel core plated in copper, which provides a balance of tensile strength and flexural endurance for frequent movement.

How does the jacketing affect installation in confined routes?


The polyvinyl chloride outer sheath offers mechanical protection and a smooth surface that eases pull-through in cable ducts and cable trays.

Are there recognised production and quality standards applied?


Manufacture adheres to multiple management and quality standards including ISO 9001 and IATF 16949, along with industry-specific approvals relevant to rail and aerospace supply chains.

Which fire-performance classification is applicable for routed runs?


The cable meets IEC 60332-3 fire-behaviour criteria suitable for applications requiring this level of flame performance.
