Belden 9244 Series, 152.4m, RG59/U Coaxial, Unterminated75 Ω

RS Stock No.:: 331-9212
Mfr. Part No.:: 9244 010U500
Brand:: Belden

Belden 9244 Series, 152.4m, RG59/U Coaxial, Unterminated75 Ω

Subtotal (1 reel of 152 metres)*

Kr.3 680 36

(exc. VAT)

Kr.4 600 45

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) shipping from 27. mars 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 3 680,36	Kr. 24,213

*price indicative

RS Stock No.:: 331-9212
Mfr. Part No.:: 9244 010U500
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Terminated/Unterminated	Unterminated
	Coaxial Type	RG59/U
	Outer Diameter	6.15mm
	CPR Certification	Eca
	Characteristic Impedance	75 Ω
	Attenuation	11.1 dB/100ft @ 900MHz, 12 dB/100ft @ 1GHz, 7 dB/100ft @ 400MHz, 9.7 dB/100ft @ 700MHz
	Length	152.4m
	Sheath Colour	Black
	Voltage Rating	1.7 kV
	Fire Behaviour	IEC 60332-1-2
	Conductor Strand Type	Solid
	Standards Met	Euroclass Eca
	Core Strands	1/0.63
	Capacitance	63.632pF/m
	Insulation Material	PE
	Operating Temperature Range	-40 → +80 °C
	Series	9244
	Sheath Material	Polyvinyl Chloride PVC
	Number of Strands	1
	Velocity ratio	66%
	Size of Strands	22 AWG
	Conductor Material	Bare Copper Clad Steel
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+80°C
	Shielding	Bare Copper Braid

	Select all
	Brand Belden
	Terminated/Unterminated Unterminated
	Coaxial Type RG59/U
	Outer Diameter 6.15mm
	CPR Certification Eca
	Characteristic Impedance 75 Ω
	Attenuation 11.1 dB/100ft @ 900MHz, 12 dB/100ft @ 1GHz, 7 dB/100ft @ 400MHz, 9.7 dB/100ft @ 700MHz
	Length 152.4m
	Sheath Colour Black
	Voltage Rating 1.7 kV
	Fire Behaviour IEC 60332-1-2
	Conductor Strand Type Solid
	Standards Met Euroclass Eca
	Core Strands 1/0.63
	Capacitance 63.632pF/m
	Insulation Material PE
	Operating Temperature Range -40 → +80 °C
	Series 9244
	Sheath Material Polyvinyl Chloride PVC
	Number of Strands 1
	Velocity ratio 66%
	Size of Strands 22 AWG
	Conductor Material Bare Copper Clad Steel
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +80°C
	Shielding Bare Copper Braid

COO (Country of Origin):: US

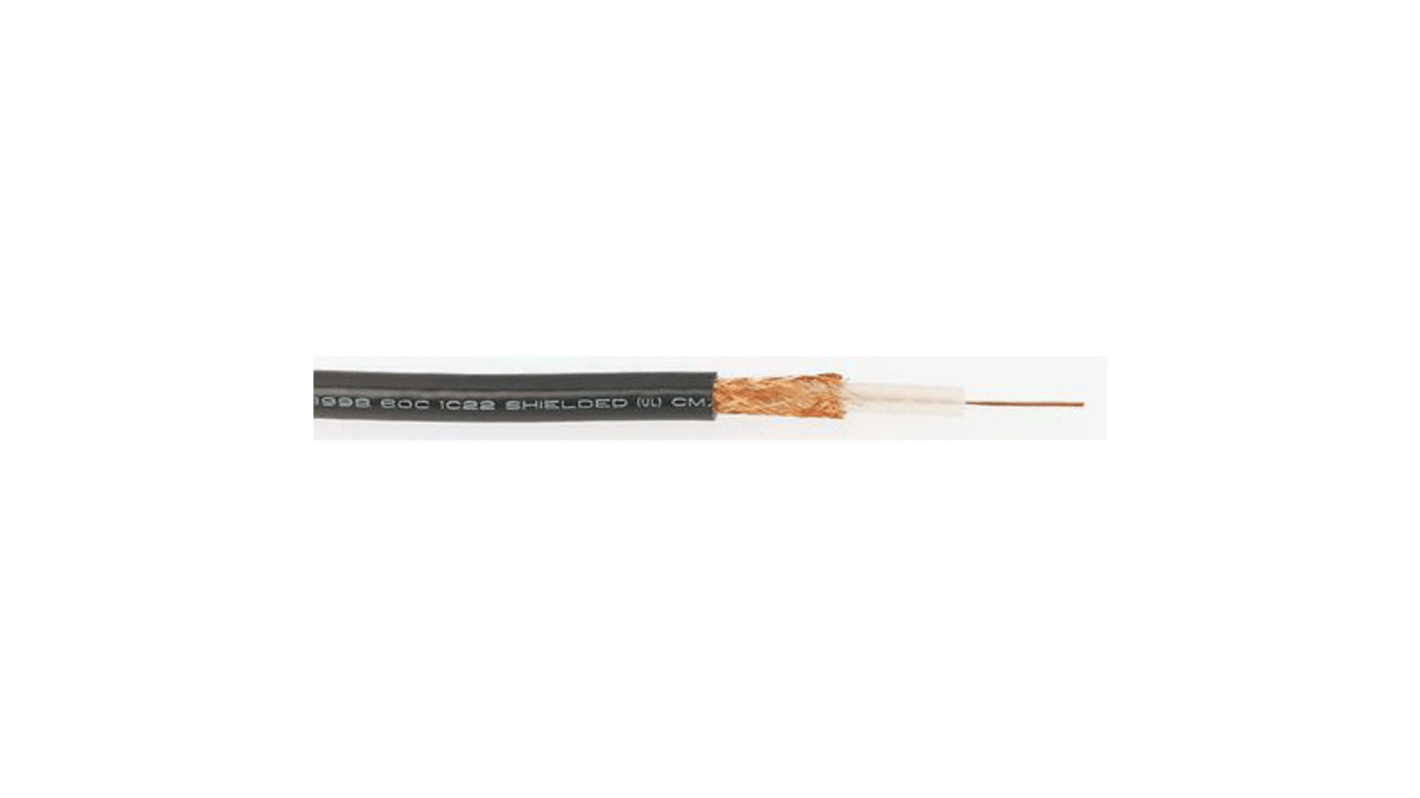

Belden RG59/U Coaxial Cable, 75 Ohm, Black, PE Sheathed - 9244 010U500

This RG59/U coaxial cable by Belden is designed for reliable and efficient transmission of signals. With an impedance of 75 ohms and made with high-quality materials, it ensures excellent performance and durability. The cable is unterminated, making it versatile for various applications in different settings.

Features & Benefits

• Provides low loss signal transmission with an Attenuation of 11.1 dB/100ft @ 900MHz
• Capacitance of 63.632 pF/m ensures efficient signal transfer
• PE material for insulation ensures durability and reliability
• Bare copper braid shielding for superior conductivity and protection
• Solid conductor material with 1/0.63 core strands for stability
• Operates between -40°C to +80°C temperature, ideal for different environments
• Sheath material of PVC for added durability and protection

Applications

• Suitable for connecting radio frequency antenna to electronic devices
• Can be used for applications requiring high-temperature performance
• Used in video/audio security systems for reliable signal transmission

Can it withstand extreme temperatures?

This coaxial cable operates between -40°C to +80°C, making it suitable for a wide range of environments.

Will it provide low loss signal transmission?

Yes, with an Attenuation of 11.1 dB/100ft @ 900MHz, this cable ensures efficient signal transmission.

What is the impedance of this cable?

The impedance of this cable is 75 ohms, ideal for various applications.

Can it be used for medical equipment connections?

Yes, this cable is suitable for connecting medical equipment, ensuring reliable performance.
