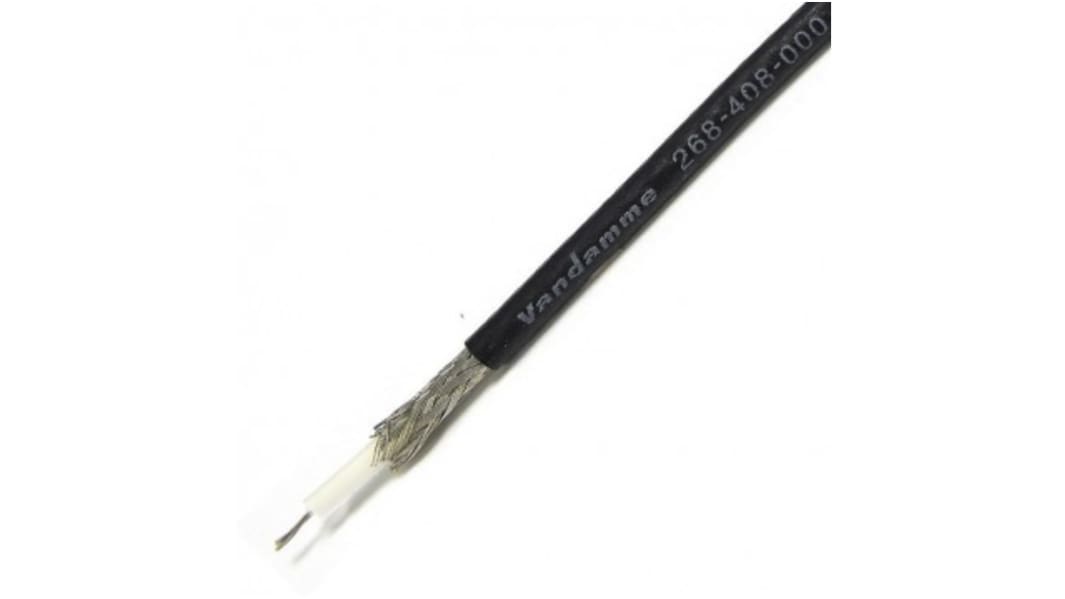

Van Damme Mini Standard 75 Series, 10 m, RG179 Coaxial Coaxial Cable 75 Ω, Unterminated
- RS Stock No.:
- 365-7918
- Mfr. Part No.:
- 268-408-000
- Brand:
- Van Damme
Subtotal (1 reel of 100 metres)*
Kr. 2 045,19
(exc. VAT)
Kr. 2 556,49
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 8 unit(s) shipping from 26 October 2026
- Plus 5 unit(s) shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 2 045,19 | Kr. 20,452 |
*price indicative
- RS Stock No.:
- 365-7918
- Mfr. Part No.:
- 268-408-000
- Brand:
- Van Damme
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Terminated/Unterminated | Unterminated | |
| Product Type | Coaxial Cable | |
| Coaxial Type | RG179 | |
| American Wire Gauge | 7AWG | |
| Voltage | 1kV | |
| Outside Diameter | 2.6mm | |
| Characteristic Impedance | 75Ω | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -25°C | |
| Cable Length | 10m | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | REACH, RoHS, IEC | |
| Core Strands | 7 x 120 μm | |
| Jacket Material | Polyvinyl Chloride | |
| Number of Strands | 7 | |
| Conductor Material | Bare Copper | |
| Size of Strands | 120μm | |
| Series | Mini Standard 75 | |
| Select all | ||
|---|---|---|
Brand Van Damme | ||
Terminated/Unterminated Unterminated | ||
Product Type Coaxial Cable | ||
Coaxial Type RG179 | ||
American Wire Gauge 7AWG | ||
Voltage 1kV | ||
Outside Diameter 2.6mm | ||
Characteristic Impedance 75Ω | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -25°C | ||
Cable Length 10m | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals REACH, RoHS, IEC | ||
Core Strands 7 x 120 μm | ||
Jacket Material Polyvinyl Chloride | ||
Number of Strands 7 | ||
Conductor Material Bare Copper | ||
Size of Strands 120μm | ||
Series Mini Standard 75 | ||
- COO (Country of Origin):
- IT
Standard Mini 75Ω Video Cable
Designed and created due to the increasing demand for a quality range of OFC Cables. Stringent copper purity tests have resulted in a highly flexible yet extremely robust range of cables. This range of cable caters for the professional in audio recording or broadcast.
Combines small overall diameter with precision 75Ω performance
Dimensionally equivalent to RG179
Ideal for internal rack wiring, patch panels and multi-pin connectors where a reduced O/D is essential
Suitable for the transmission of serial digital video
Uses RG179 BNC connectors
Connector / cable group E
