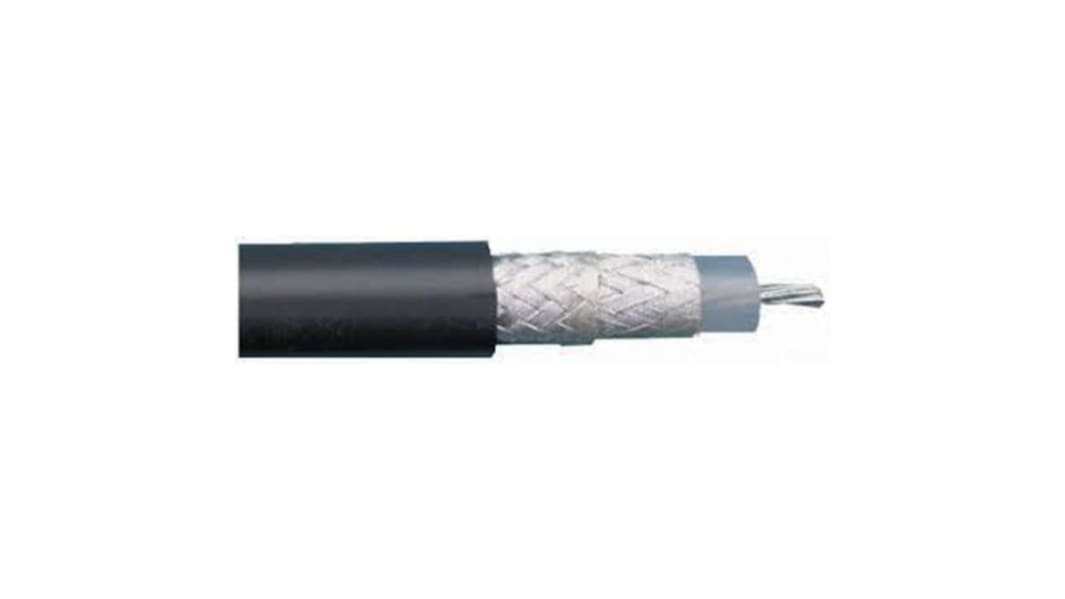

Belden MRG214 Series, 25 m, RG214/U Coaxial Coaxial Cable 50 Ω, Black, Unterminated

RS Stock No.:: 521-8391
Distrelec Article No.:: 301-55-157
Mfr. Part No.:: MRG214.0025
Brand:: Belden

Belden MRG214 Series, 25 m, RG214/U Coaxial Coaxial Cable 50 Ω, Black, Unterminated

Subtotal (1 reel of 25 metres)*

Kr. 5 213,21

(exc. VAT)

Kr. 6 516,51

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

12 unit(s) ready to ship
Plus 13 unit(s) shipping from 14 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 5 213,21	Kr. 208,528

*price indicative

RS Stock No.:: 521-8391
Distrelec Article No.:: 301-55-157
Mfr. Part No.:: MRG214.0025
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Terminated/Unterminated	Unterminated
	Product Type	Coaxial Cable
	Coaxial Type	RG214/U
	American Wire Gauge	13AWG
	Outside Diameter	10.8mm
	Characteristic Impedance	50Ω
	Conductor Type	Stranded
	Minimum Operating Temperature	-40°C
	Attenuation	4.3 dB
	Maximum Operating Temperature	70°C
	Cable Length	25m
	Standards/Approvals	Euroclass Eca
	Jacket Colour	Black
	Fire Behaviour	IEC 60332-1-2 (Low Smoke Zero Halogen)
	Conductor Material	Silver Plated Copper
	Series	MRG214
	Size of Strands	0.75mm
	Number of Strands	7
	Core Strands	7 x 0.75mm
	Jacket Material	Polyethylene

	Select all
	Brand Belden
	Terminated/Unterminated Unterminated
	Product Type Coaxial Cable
	Coaxial Type RG214/U
	American Wire Gauge 13AWG
	Outside Diameter 10.8mm
	Characteristic Impedance 50Ω
	Conductor Type Stranded
	Minimum Operating Temperature -40°C
	Attenuation 4.3 dB
	Maximum Operating Temperature 70°C
	Cable Length 25m
	Standards/Approvals Euroclass Eca
	Jacket Colour Black
	Fire Behaviour IEC 60332-1-2 (Low Smoke Zero Halogen)
	Conductor Material Silver Plated Copper
	Series MRG214
	Size of Strands 0.75mm
	Number of Strands 7
	Core Strands 7 x 0.75mm
	Jacket Material Polyethylene

COO (Country of Origin):: NL

Belden Coaxial Cable, 13AWG, 10.8mm OD - MRG214 Series - MRG214.00100

Need to send radio signals across large work areas? Wire up this RG-214 coaxial cable from Belden. It's unterminated at both ends, so you can use it to connect all manner of electrical components for hassle-free transmission between them. Polyethylene insulation is on hand to absorb impact, so the cable fends off bumps and bashes. As it comes on a 100m reel, you can install it over large workplaces or conveniently cut it down to size.

Features & Benefits

• Durable PVC jacket for protection in heavy-duty applications

• Broad operating temperature range of -40°C to +70°C indicates it can hold up in harsh conditions

• Shielding prevents crosstalk to boost signalling efficiency

Applications

• Telecommunications industry

• Radio networks

• Computing systems

Is this product suitable for use with powerful electrical applications?

Yes. This coaxial cable has a 760W maximum power rating at 100MHz, assuring you it's safe to use in powerful electrical systems.
